1P+N C16 CB 120-230V white - 14405.16

Pdf
14405.16

Plana / Devices / Current breaker switches (CBs)

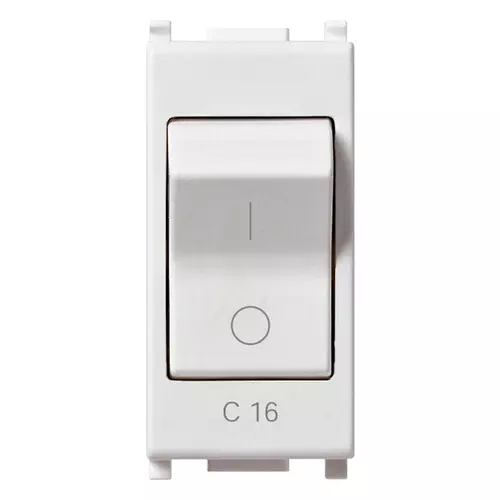

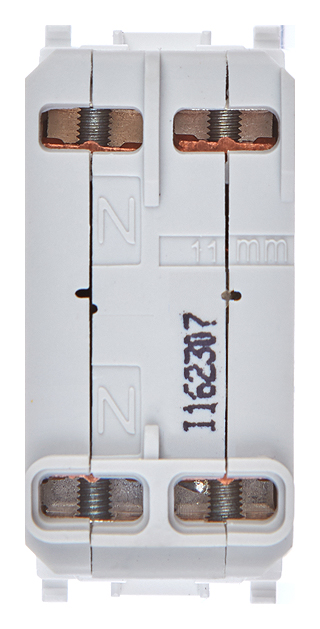

1P+N C16 CB 120-230V white
1P+N C 16 circuit breaker, supply voltage 120-230 V~ 50-60 Hz, breaking capacity 3000 A, white

Product Status
3 - Active

Class group
Circuit breakers and fuses
Class
Miniature circuit breaker (MCB)
Built-in depth
38,00 mm
Release characteristic
C
Number of poles (total)
2
Number of protected poles
1
Rated current
16 A
Rated voltage
230 v
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
3,00 kA
Voltage type
AC
Frequency
50 - 60 HZ
Current limiting class
1
Concurrently switching neutral conductor
Yes
Over voltage category
3
Width in number of modular spacings
1
Degree of protection (IP)
IP40
Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352107892
1 NR
6x2.8x5.3 [cm]
56 [g]
Barcode Qty 10 NR
8007352107908
10 NR
14.4x13.1x6 [cm]
608.1 [g]
Barcode Qty 200 NR
8007352650152
200 NR
50.5x20x28 [cm]
12,600 [g]
