Vimar - 14468.1 - Pocket switch NFC/RFID CISA white

14468.1

Plana / Systems / Access control system

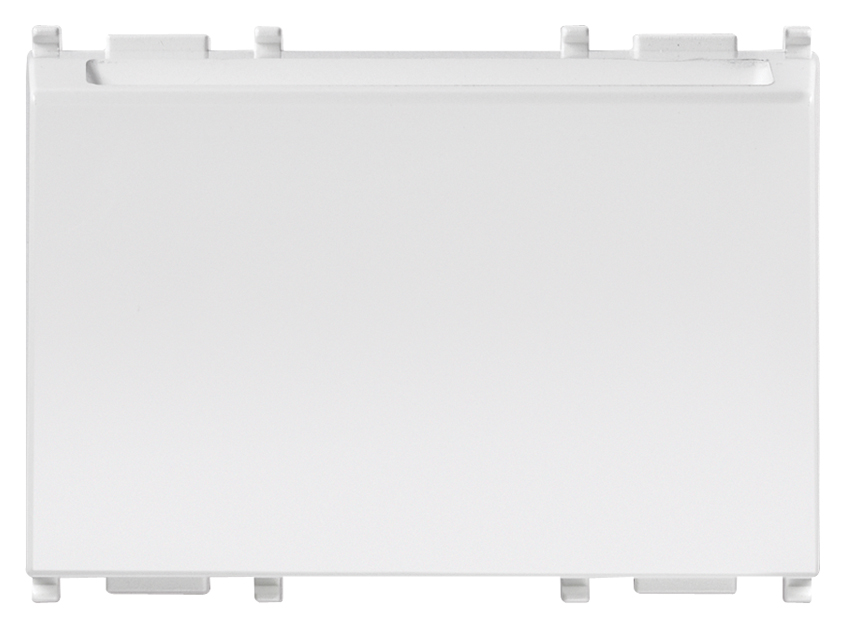

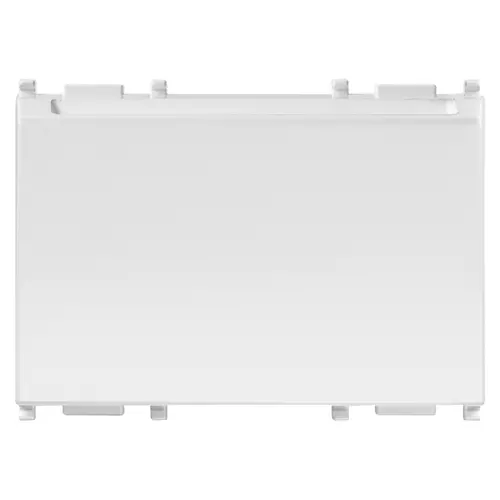

Pocket switch NFC/RFID CISA white

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• FI - Foglio istruzioni ZIS_49401194A0 (849 kb)

Class group
Alarm installations, emergency call and

Class
Admittance control system

Standalone
Yes

Networkable
No

PC-binding
No

Type of interface
None

Reading strategy
Data medium

Signalling
Buzzer

Mounting method
Flush mounted (plaster)

Operating voltage at AC 50 Hz
120,00 - 230,00 v

Operating voltage at AC 60 Hz
120,00 - 230,00 v

Operation temperature
0 - 40 °C

Degree of protection (IP)
IP20

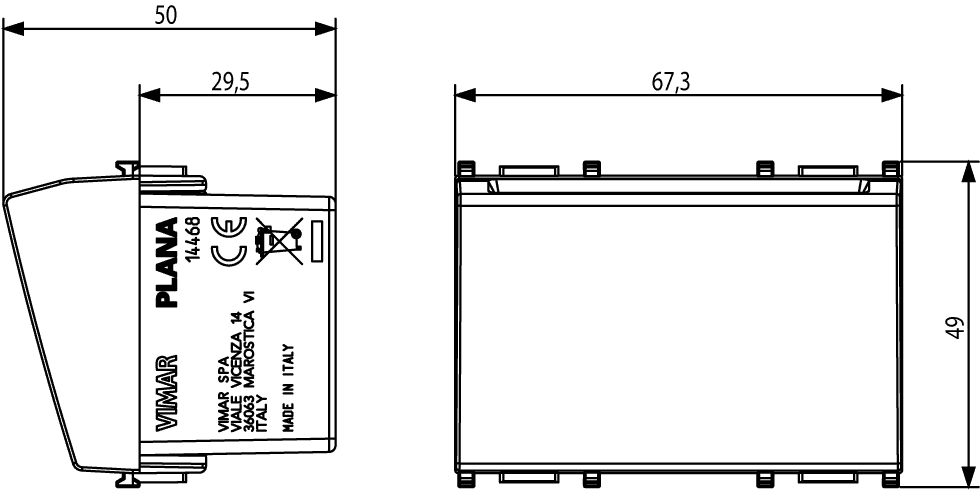

Width
67,30 mm

Height
49,00 mm

Depth
50,00 mm

00. CE Marking - EU

37. Marking - Morocco

94. Radio Equipment EU DoC

99. WEEE Directive

Minimum order quantity: 1 NR

---

Barcode

8007352573475

1 NR

5.2x5.7x7.6 [cm]

98.3 [g]

8007352573482

5 NR

21.4x11.6x6 [cm]

551.2 [g]
