Pocket switch NFC/RFID AGB Silver - 14468.SL

Pdf
14468.SL

Plana Silver / Systems / Access control system

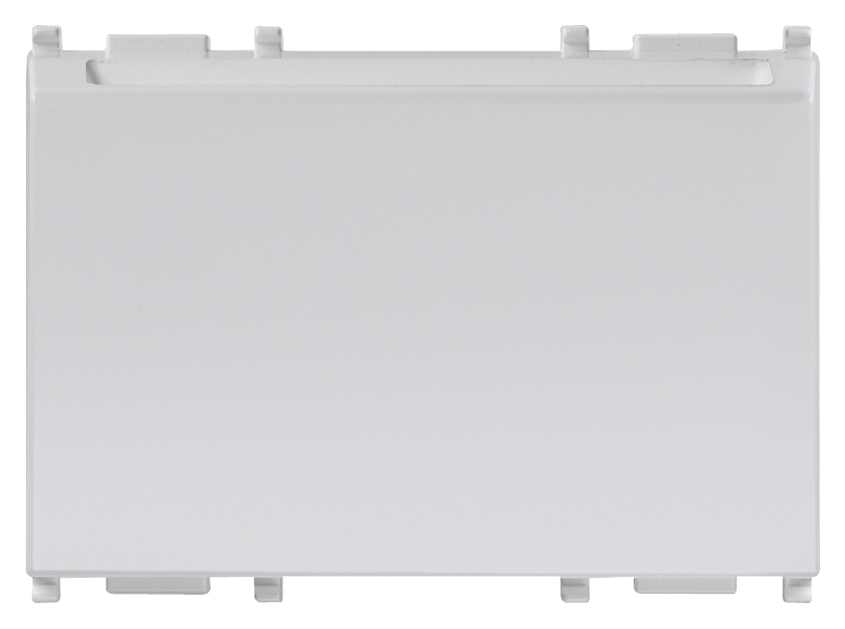

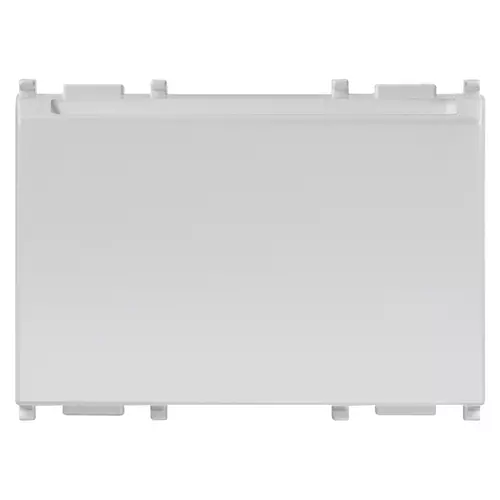

Pocket switch NFC/RFID AGB Silver
NFC/RFID electronic transponder card reader for installation inside the room, compatible with AGB Electronic Solutions for Hotels, vertical pocket, 1 (one) 10 A 230 V~ NO (NON SELV) relay output, 1 (one) 4 A 230 V~ NO (NON SELV) relay output, 120-230 V~ 50/60 Hz power supply, pocket lighting to be visible in darkness, Silver - 3 modules. Supplied without Mifare card (badge)

Product Status
3 - Active

Sheets, Manuals, Documentation


Drawings

Class group
Alarm installations, emergency call and signalling
Class
Access control system
Standalone
Yes
Networkable
No
PC-binding
No
Type of interface
None
Reading strategy
Data medium
Signalling
Buzzer
Mounting method
Flush mounted (plaster)
Operating voltage at AC 50 Hz
120,00 - 230,00 v
Operating voltage at AC 60 Hz
120,00 - 230,00 v
Operating temperature
0 - 40 °C
Degree of protection (IP)
IP20
Colour
Silver
Material
Plastic
Width
67,30 mm
Height
49,00 mm
Depth
50,00 mm

00. CE Marking - EU

37. Marking - Morocco

43. UKCA mark - Great Britain

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352573451
1 NR
5.2x5.7x7.6 [cm]
97.8 [g]
Barcode Qty 5 NR
8007352573468
5 NR
21.4x11.6x6 [cm]
550.8 [g]
