Plate 3M Reflex tobacco - 14653.49

Pdf

14653.49
Wiring devices / Traditional wiring devices / PLANA / Cover plates

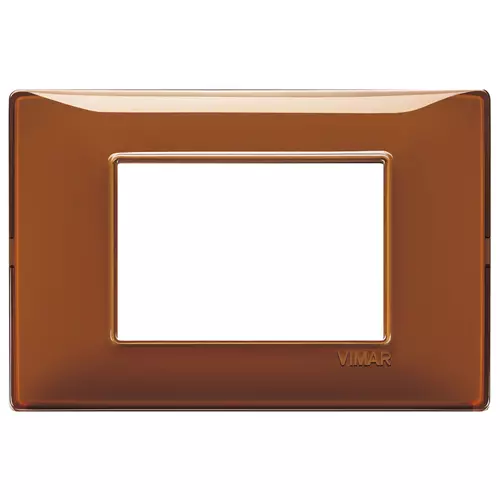

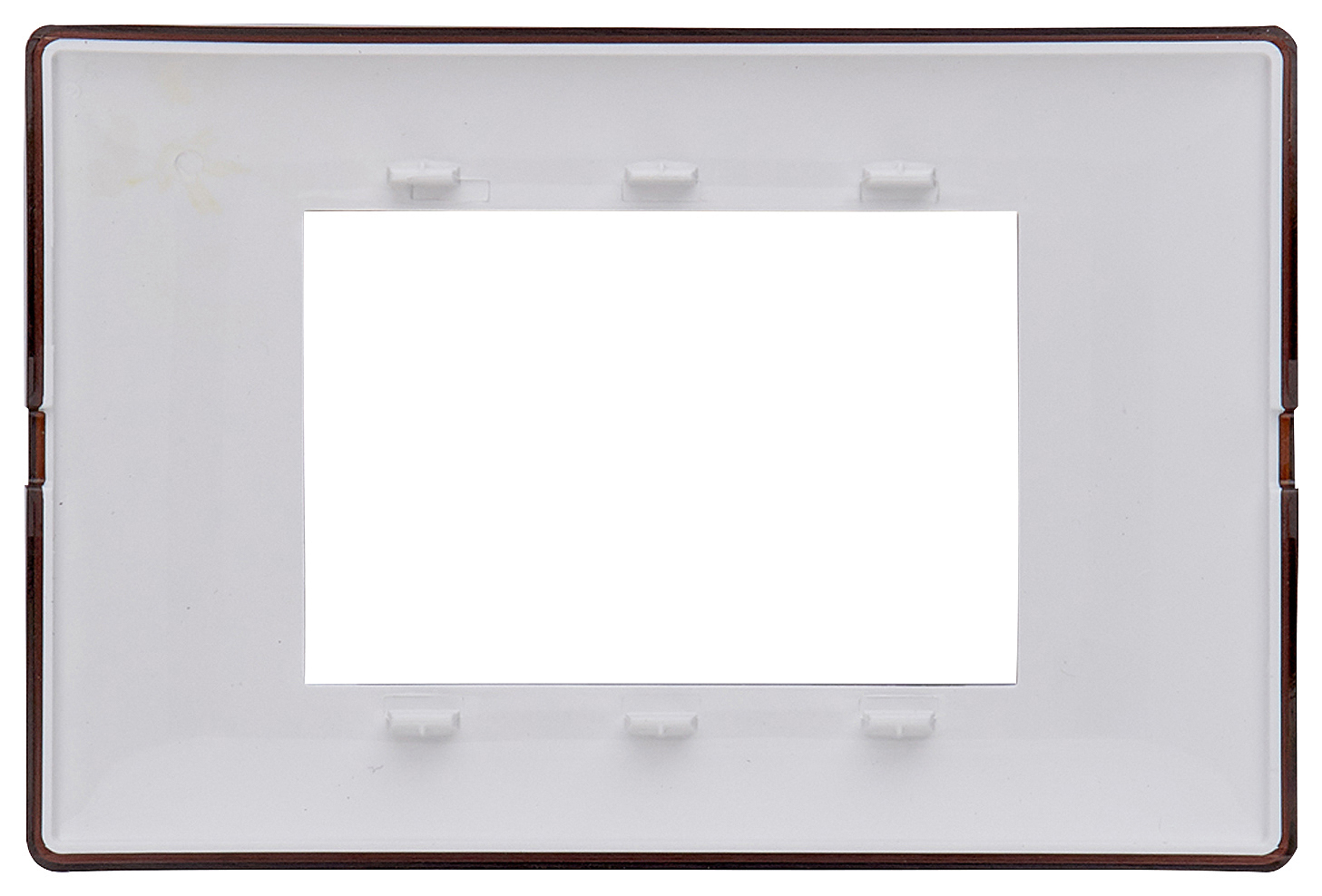

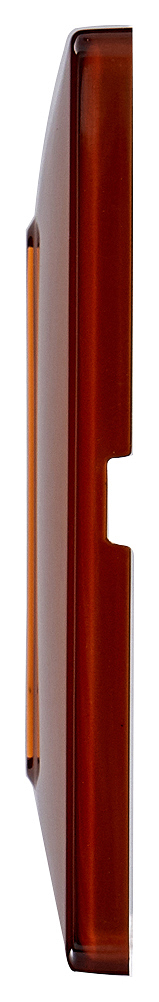

Plate 3M Reflex tobacco
3-module cover plate, technopolymer, Reflex tobacco

Product Status
3 - Active

You may also be interested in

Drawings

Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
3
Mounting direction
Horizontal and vertical
Number of units horizontal
3
Number of units vertical
1
Number of modules horizontal (module system)
3
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Plastic glass
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
Brown
RAL-number (similar)
8003
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
120,00 mm
Height
80,00 mm
Depth
9,00 mm
Built-in width
120,00 mm
Built-in height
80,00 mm
Diameter bore hole (opening)
0 mm

00. CE Marking - EU

29. QCERT - Colombia

43. UKCA mark - Great Britain

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352132818
1 NR
17x8x0.9 [cm]
24.6 [g]
Barcode Qty 10 NR
8007352132825
10 NR
14.1x9.8x9.9 [cm]
297.6 [g]
Barcode Qty 480 NR
8007352636231
480 NR
59x39x31.5 [cm]
16,544 [g]
Barcode Qty 5,120 NR
8007352587854
5,120 NR
120x80x105 [cm]
168,048 [g]
