14654.21
Plana / Cover plates / Snap fixing technopolymer cover plates

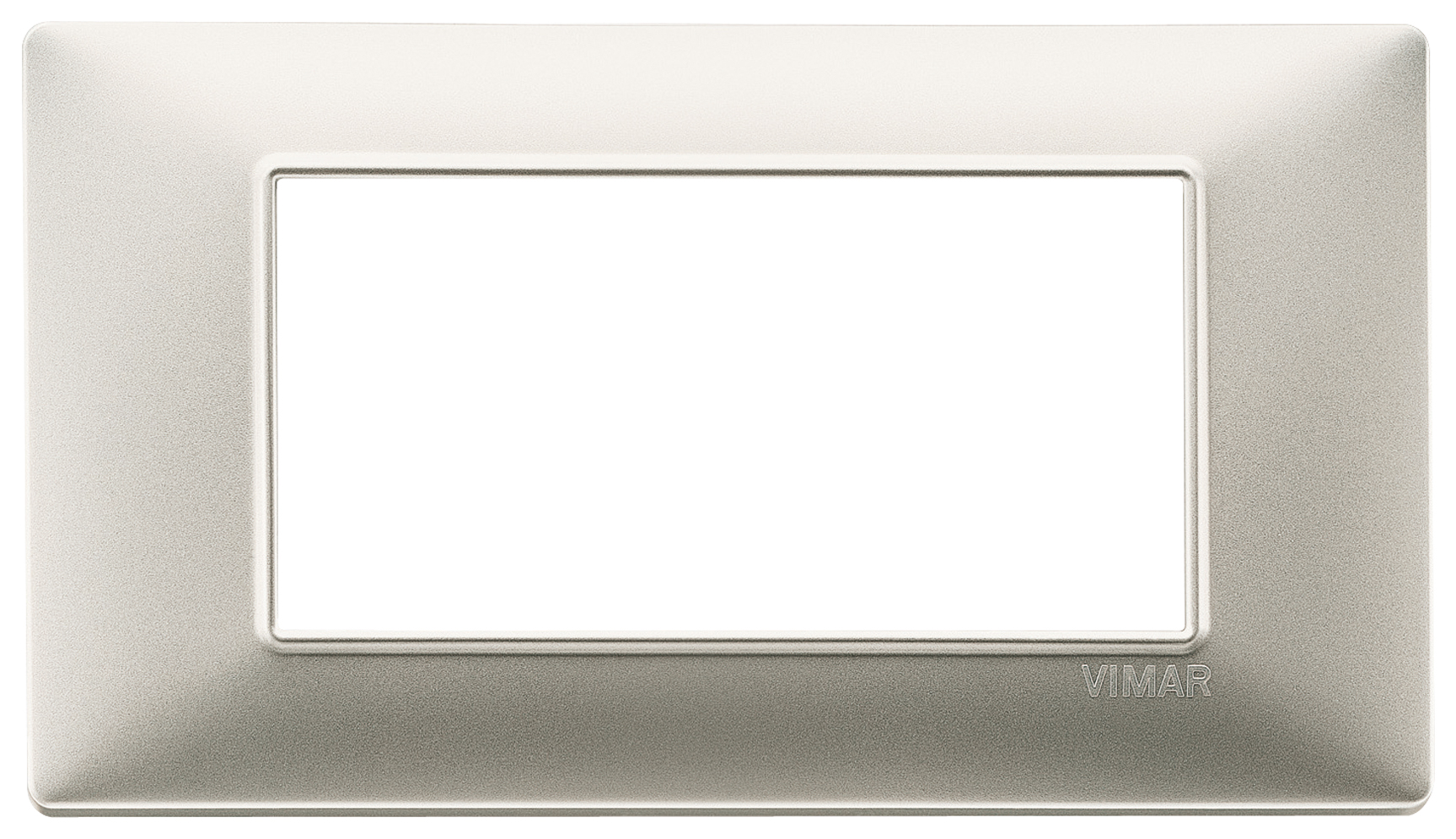

Plate 4M techn. matt nickel
4-module cover plate, technopolymer, matt nickel
Product Status
3 - Active
Class group
Domestic switching devices
Class
Cover frame for domestic switching devic
Number of units
4
Mounting direction
Horizontal and vertical
Number of units horizontal
4
Number of units vertical
1
Number of modules horizontal (
4
Number of modules vertical (mo
1
Number of gangs
0
With mounting grid
Yes
Suitable for flush-mounted ins
Yes
Suitable for floor box
Yes
Suitable for wall duct
Yes
Suitable for built-in installa
No
Label space/information surfac
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Glossy
Colour
Titanium
RAL-number (akin)
7048
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
139,50 mm
Height
80,00 mm
Depth
9,00 mm
Built-in width
139,50 mm
Built-in height
80,00 mm
Diameter bore hole (opening)
0 mm
Minimum order quantity: 10 NR
Barcode
8007352112179
1 NR
19x8x0.9 [cm]
20.93 [g]
8007352112186
10 NR
16.7x9.8x9.1 [cm]
265.4 [g]
8007352641068
360 NR
59x34.5x32.5 [cm]
10,290 [g]
Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see conditions of use.
