Plate 7M Reflex emerald - 14657.47

Pdf
Vimar - 14657.47 - Plate 7M Reflex emerald
Vimar - 14657.47 - Plate 7M Reflex emerald

14657.47
Wiring devices / Traditional wiring devices / PLANA / Cover plates

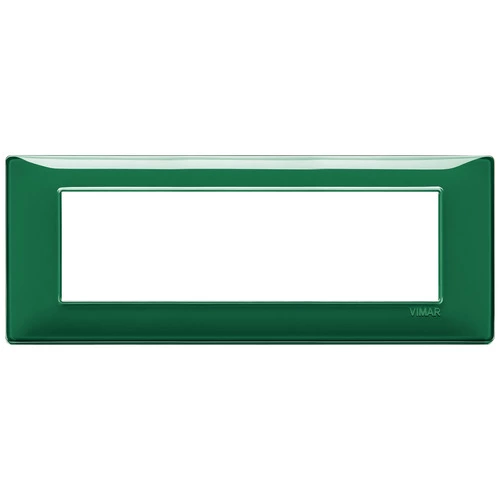

Plate 7M Reflex emerald
7-module cover plate, technopolymer, Reflex emerald

Product Status
3 - Active

You may also be interested in

14617
14617 - Frame 7M +screws

Drawings

view encumbered art. 14657.47
PNG DXF
rear view art. 14657.47
PNG DXF
3D view art. 14657.47
PNG DXF
Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
7
Mounting direction
Horizontal and vertical
Number of units horizontal
7
Number of units vertical
1
Number of modules horizontal (module system)
7
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Plastic glass
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
Green
RAL-number (similar)
6001
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
206,00 mm
Height
80,00 mm
Depth
9,00 mm
Built-in width
206,00 mm
Built-in height
80,00 mm
Diameter bore hole (opening)
0 mm

00. CE Marking - EU

01. IMQ - Italy

29. QCERT - Colombia

Minimum order quantity: 5 NR

Barcode

Barcode Qty 1 NR
8007352133068
1 NR
25.6x8x0.9 [cm]
37.4 [g]
Barcode Qty 5 NR
8007352133075
5 NR
24.2x10.3x5.7 [cm]
236.73 [g]
