TV-RD-SAT single-conn.out.2outs greyCode 16307.01
- 16307.01
- Wiring devices / Traditional wiring devices / IDEA / Devices
- TV-RD-SAT single-conn.out.2outs grey

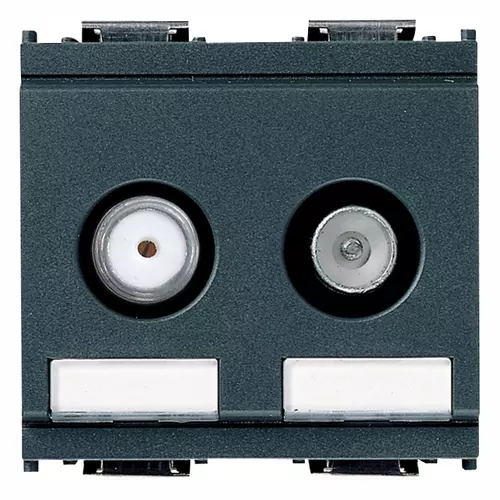

- Coaxial TV-RD-SAT 5-2400 MHz socket outlet, single connection, demix, 2 outputs with male (TV-RD) and female F-type (SAT) connectors, connection attenuation 1 dB, grey - 2 modules. Allows the passage of d.c. current and control signals (24 V 500 mA max) through the female connector
- Product Status
- 3 - Active
Class group
Antenna and satellite technique
Antenna and satellite technique
Class
Antenna socket box
Antenna socket box
Model
TWIN end socket
TWIN end socket
Tap loss at 860 MHz
1,00 dB
1,00 dB
Tap loss at 2150 MHz
1,00 dB
1,00 dB
Number of outlets
2
2
Suitable for remote power supply
Yes
Yes
Type of fastening
Snap mounting (engagement)
Snap mounting (engagement)
Colour
Grey
Grey
RAL-number (similar)
7015
7015
Material
Plastic
Plastic
Device width
49,80 mm
49,80 mm
Device height
50,00 mm
50,00 mm
Device depth
39,20 mm
39,20 mm
Minimum order quantity: 10 NR
Barcode

8007352400849
1 NR
5.1x4.3x5.3 [cm]
84.1 [g]

8007352401006
10 NR
26.9x11.6x4.9 [cm]
906.8 [g]
Share
Legal
Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
