HDMI socket 90° cable grey - 16334.H

Pdf
Vimar - 16334.H - HDMI socket 90° cable grey
Vimar - 16334.H - HDMI socket 90° cable grey

16334.H
Wiring devices / Traditional wiring devices / IDEA / Devices

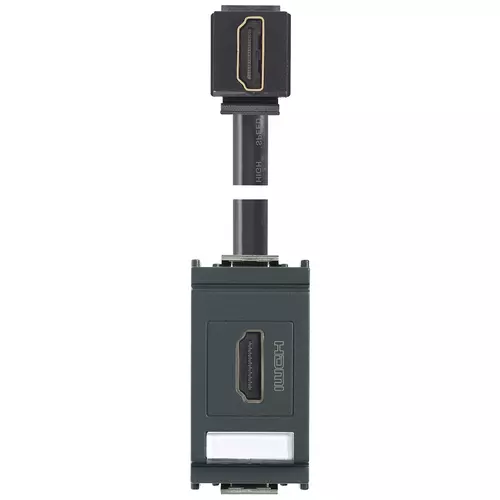

HDMI socket 90° cable grey
Socket outlet with HDMI connector, Keystone fixing, 90° cable outlet, grey

Product Status
3 - Active

Sheets, Manuals, Documentation

Drawings

view encumbered art. 16334.H
PNG DXF

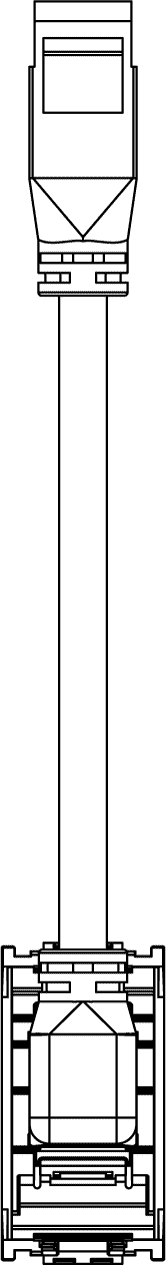

rear view art. 16334.H
PNG DXF

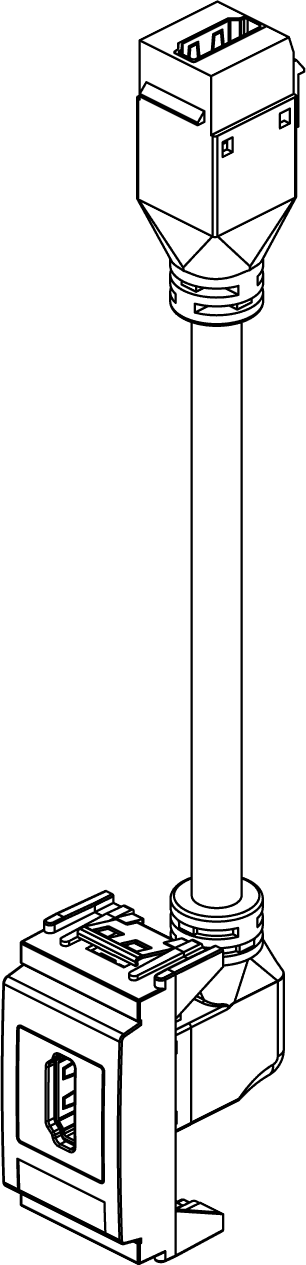

3D view art. 16334.H
PNG DXF
Class group
Domestic switching devices
Class
Insert/cover for communication technology
Assembly arrangement
Modular device for domestic switching devices
Utilization
HDMI
Support ring
No
With dust cover
No
With hinged lid
No
With imprint
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7015
Transparent
No
Number of modules (module system)
1
With strain relief
No
Luster terminal
No
Suitable for degree of protection (IP)
IP20
Device width
24,80 mm
Device height
50,10 mm
Device depth
46,80 mm

00. CE Marking - EU

10. EAC Eurasian Customs Union

43. UKCA mark - Great Britain

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352560154
1 NR
14.2x6.7x5.9 [cm]
84.8 [g]
