TORCIA handlamp 120V white - 16449.B

Pdf
16449.B

Idea / Devices / Emergency lighting fittings

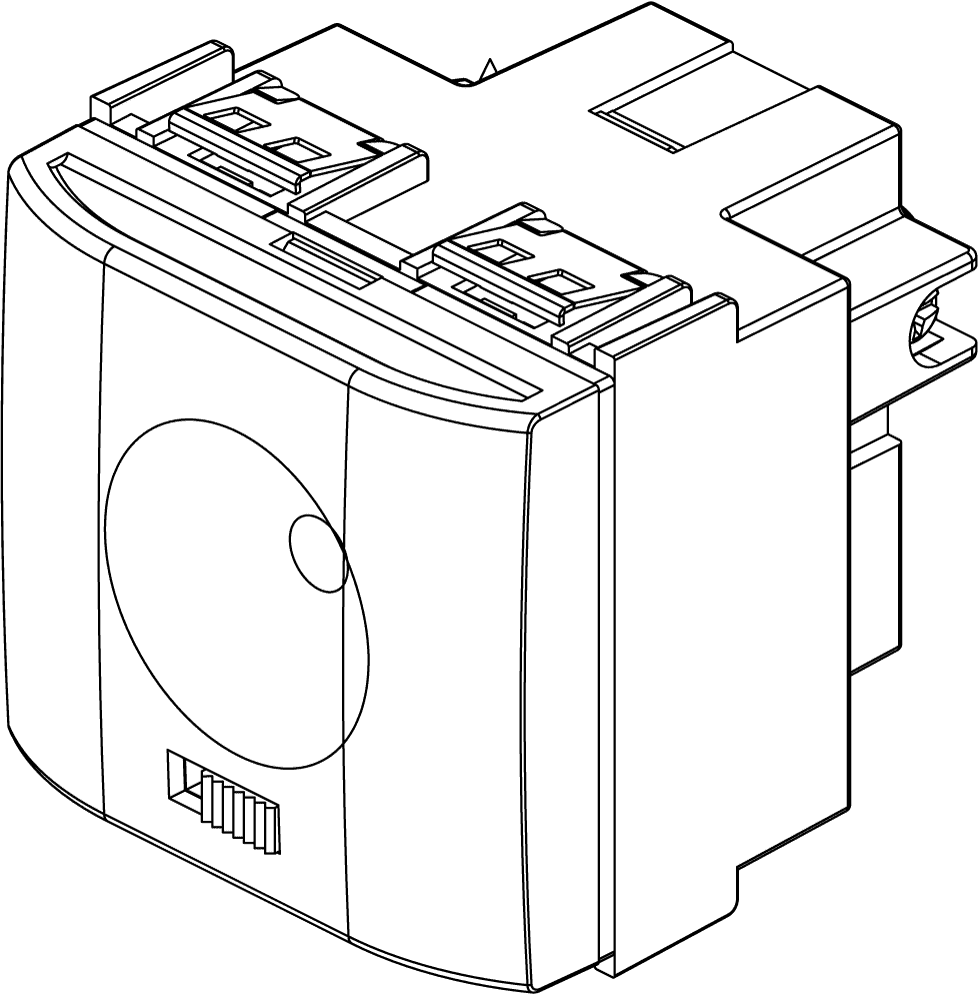

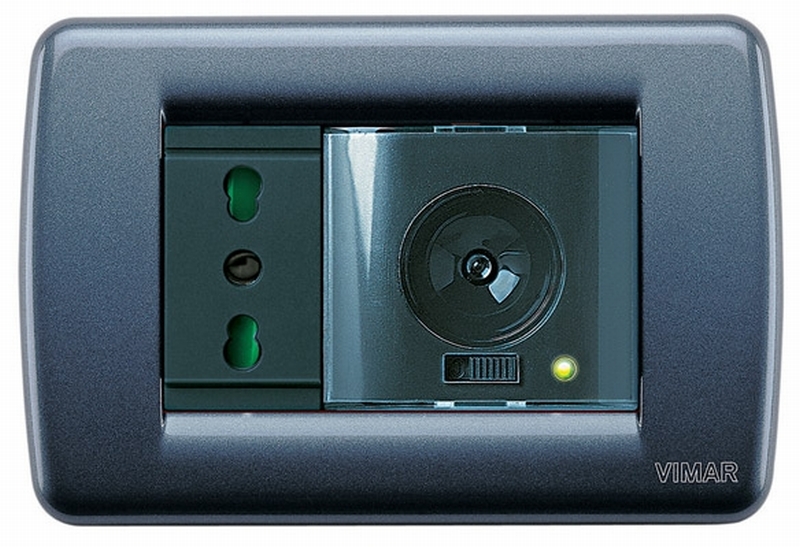

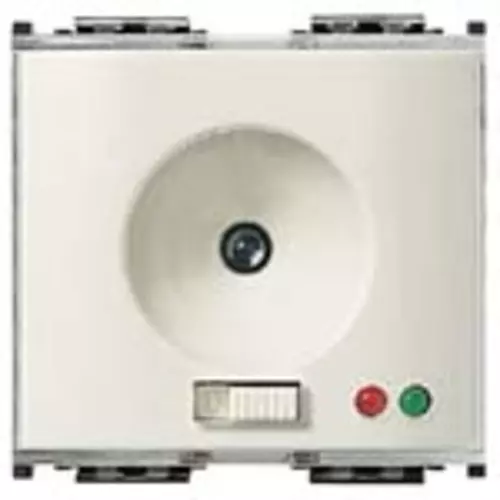

TORCIA handlamp 120V white

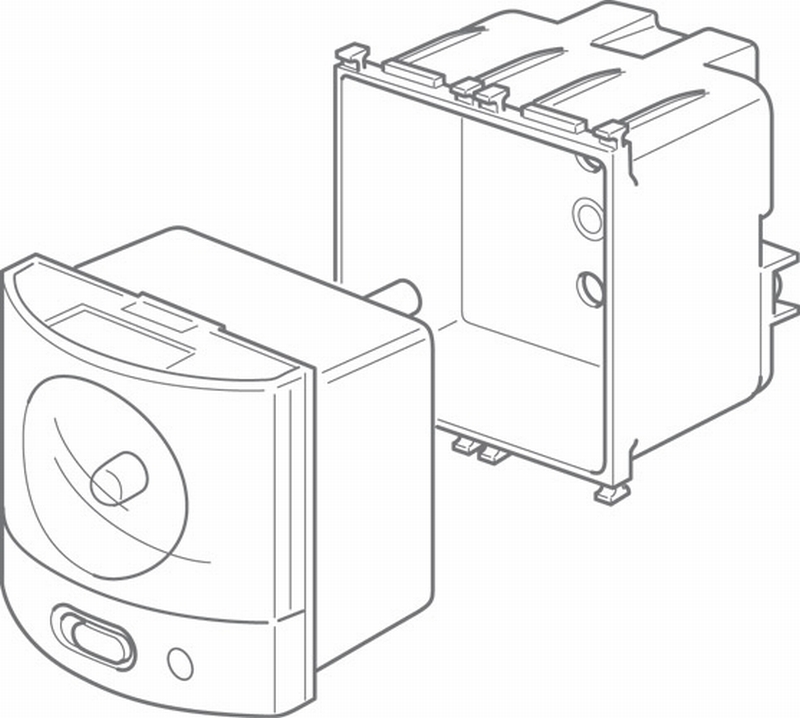

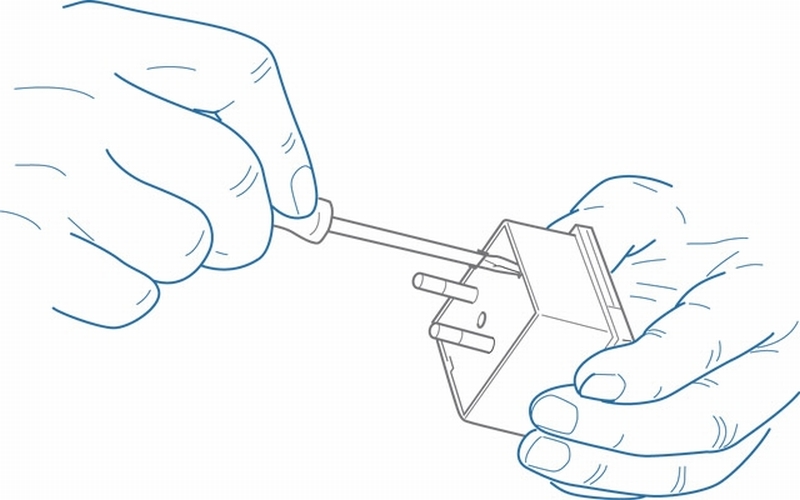

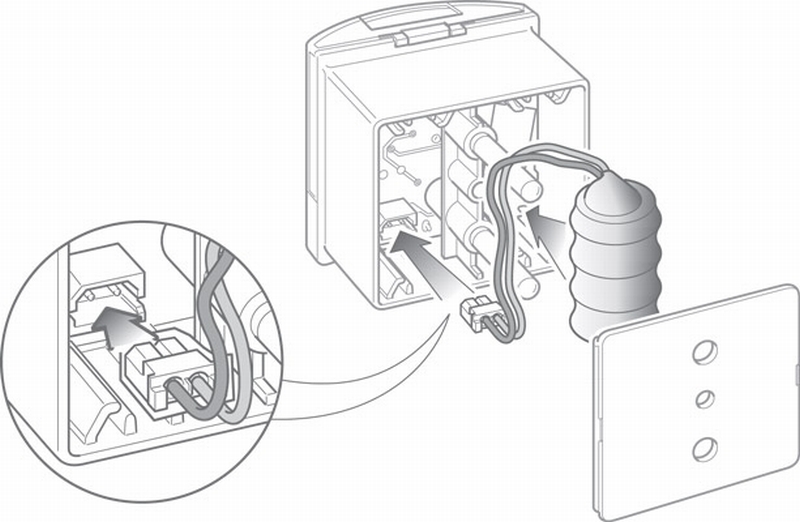

TORCIA, electronic hand lamp with high-efficiency LED, supply voltage 120 V~ 50-60 Hz, automatic emergency device, rechargeable and replaceable Ni-MH battery, 2 hours of operating range, ø 4 mm pins, 19 mm distance between centres + charging socket outlet, white - 2 modules

Product Status
3 - Active

Sheets, Manuals, Documentation


Drawings

Class group
Luminaires
Class
Emergency luminaire
Mounting method
Built-in
Monitoring equipment
None
Wiring system
Standby switching
With remote switch connection
No
Power supply system
Peripheral (individual battery)
Battery quality
NiMH
Lamp type
LED not exchangeable
With light source
Yes
Material housing
Plastic
Colour housing
White
Material cover
Without cover
Voltage type
AC
Nominal voltage
120,00 - 120,01 v
Degree of protection (IP)
IP40
Protection class
II
Max. system power
1,00 W

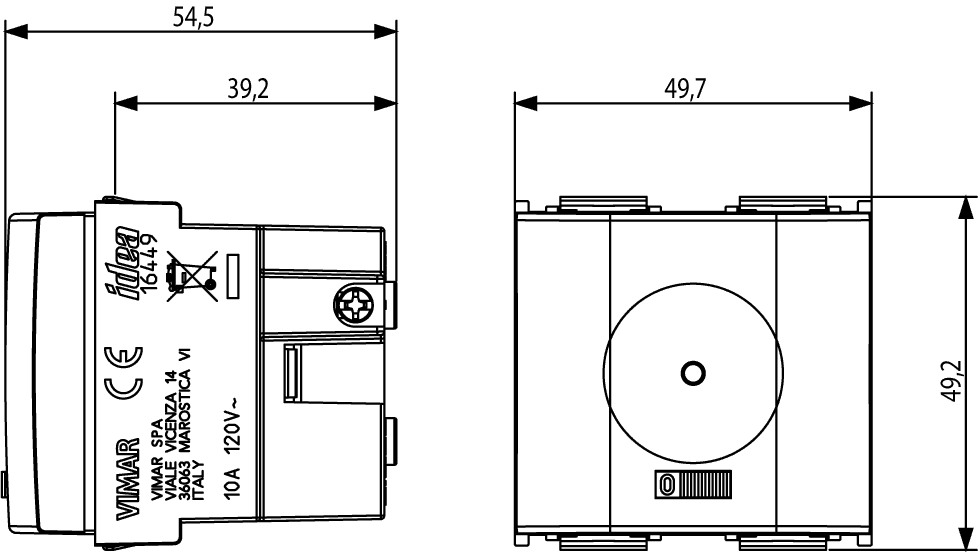

Width
49,70 mm
Height/depth
50,10 mm
Built-in width
49,70 mm
Built-in height/depth
39,20 mm
Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352146600
1 NR
6x5.4x5.3 [cm]
93.6 [g]
Barcode Qty 10 NR
8007352146617
10 NR
28.1x13.1x6 [cm]
1,025.07 [g]
