Button 1M for RF switch white - 2pieces - 16526.B

Pdf
16526.B

Idea / Systems / Radiofrequency

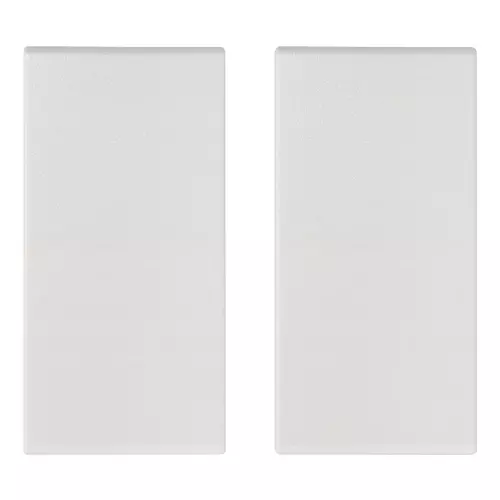

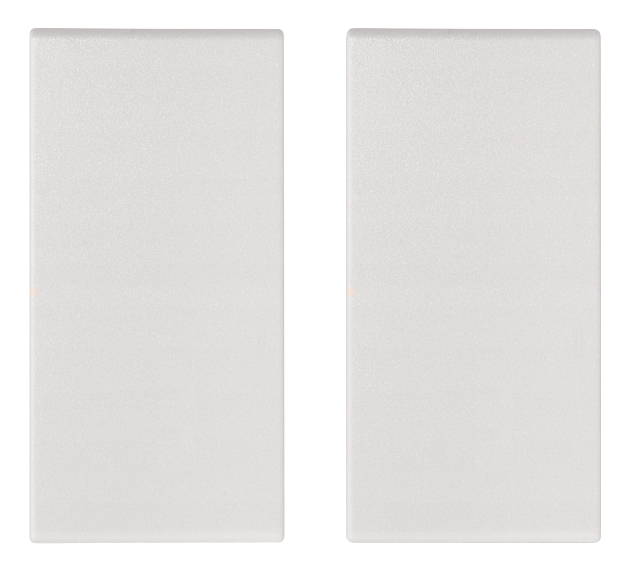

Button 1M for RF switch white - 2pieces
1-module interchangeable button for EnOcean, Bluetooth, ZigBee radio control, white - 2 pieces

Product Status
3 - Active

Class group
Domestic switching devices
Class
Control element/cover plate for domestic switching devices
Model
Single push button
Imprint/indication
Without imprint
Utilization
Switch/push button
Suitable for touch sensor connector for bus system
No
Type of fastening
Clamp mounting
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (akin)
9001
With label area
No
With exchangeable lens/symbol
No
Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352648579
1 NR
4.46x1.9x0.6 [cm]
4.6 [g]
Barcode Qty 10 NR
8007352649897
10 NR
12.3x9.6x5.1 [cm]
77.8 [g]
