16753.53
Wiring devices / Traditional wiring devices / IDEA / Cover plates

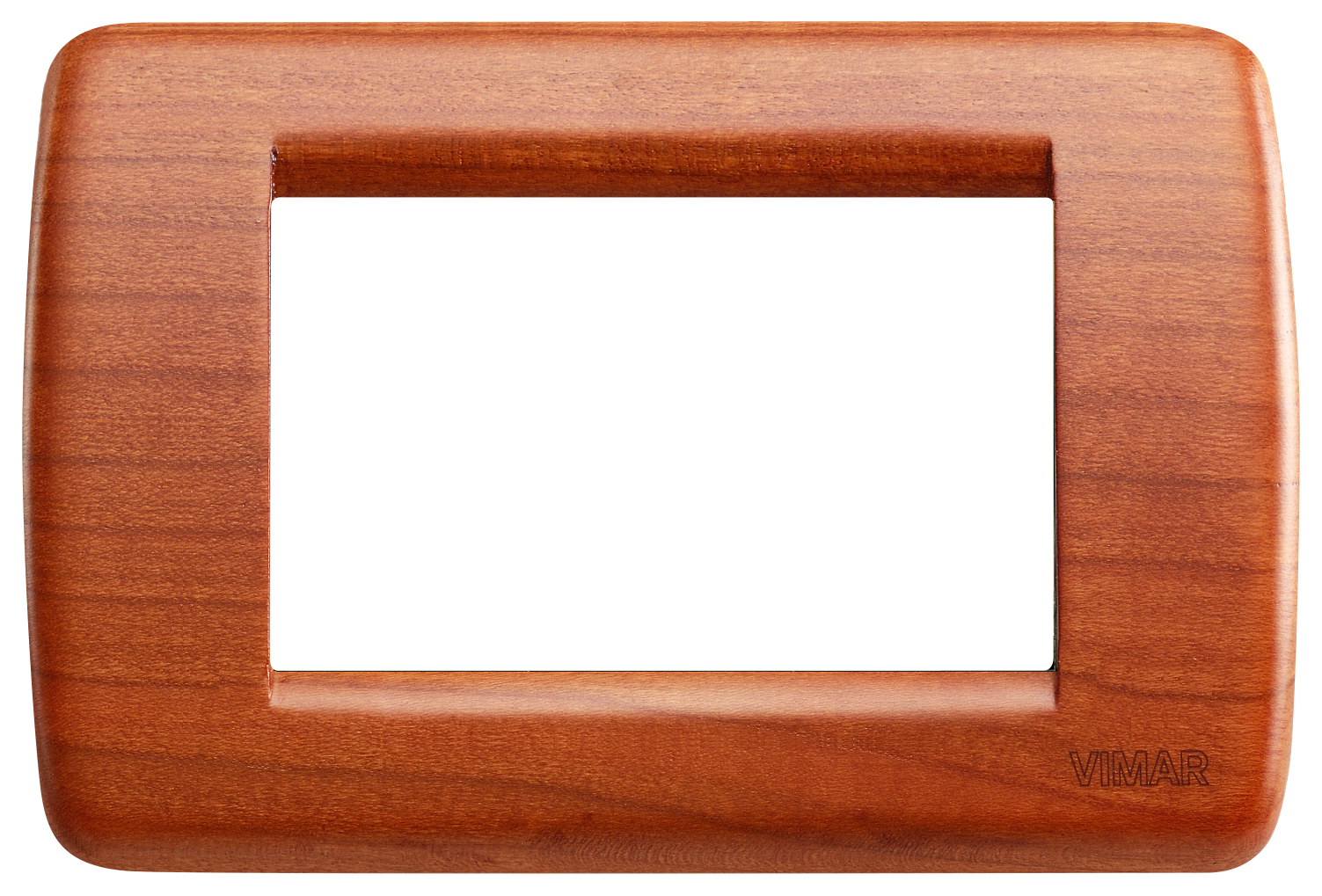

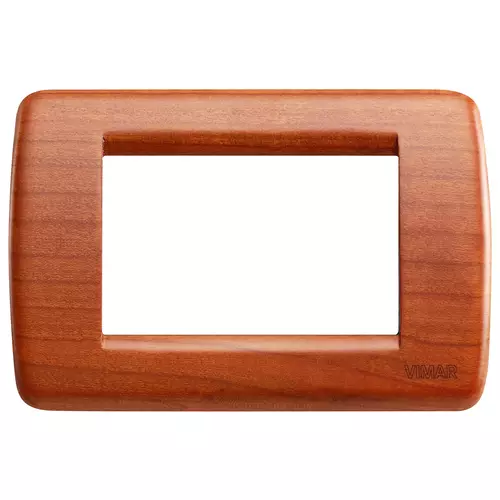

Rondò plate 3M wood cherry
3-module Rondò cover plate, solid wood, cherrywood
Product Status
2 - Will be discontinued
You may also be interested in
Class group
Domestic switching devices
Domestic switching devices
Class
Cover frame for domestic switching devices
Cover frame for domestic switching devices
Number of units
3
3
Mounting direction
Horizontal and vertical
Horizontal and vertical
Number of units horizontal
3
3
Number of units vertical
1
1
Number of modules horizontal (module system)
3
3
Number of modules vertical (module system)
1
1
With mounting grid
Yes
Yes
Suitable for subfloor installation duct box
Yes
Yes
Suitable for wall duct
Yes
Yes
Suitable for built-in installation
Yes
Yes
Label space/information surface
Yes
Yes
Material
Wood
Wood
Material quality
Other
Other
Halogen free
Yes
Yes
Surface protection
Untreated
Untreated
Surface finishing
Matt
Matt
Colour
Wood
Wood
RAL-number (similar)
8003
8003
Transparent
No
No
With hinged lid
No
No
Degree of protection (IP)
IP00
IP00
Type of fastening
Clamp mounting
Clamp mounting
Width
123,00 mm
123,00 mm
Height
82,00 mm
82,00 mm
Depth
9,00 mm
9,00 mm
Built-in width
123,00 mm
123,00 mm
Built-in height
82,00 mm
82,00 mm
Diameter bore hole (opening)
0,00 mm
0,00 mm
00. CE Marking - EU
Minimum order quantity: 1 NR
Barcode
8007352104334
1 NR
12.5x8.5x1.1 [cm]
25.13 [g]
8007352104341
10 NR
13.5x12.4x9.6 [cm]
312.93 [g]
| Question: | Are the Idea Rondo plaques compatible with the devices and mounting supports of the Idea Classic plaques? |
|---|---|
| Answer: | The Idea series has devices and mounting supports that can be completed with both Classic plaques and Rondo plaques. The Rondo plaques are not compatible with the following parts (thus require Classic plaques):-16803 and 16806 table mounting box-16813 mounting bracket-09975.A surface mounting box-16570.SZ and 16570.SZ.B mounting support for infrared remote control. |
