Table mounting box 6M white - 16806.B

Pdf

16806.B
System infrastructure / Enclosures and control units / Connector block boxes / Desktop

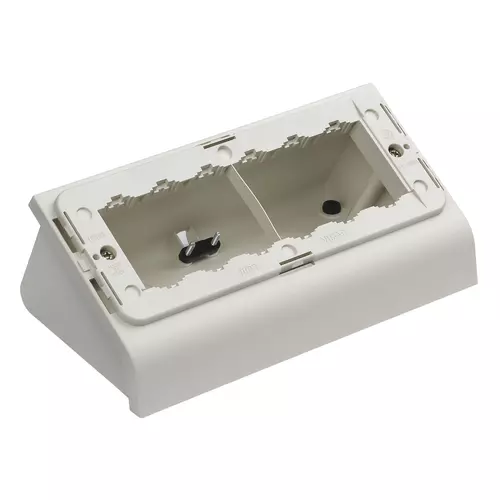

Table mounting box 6M white
6-module table mounting box with cord-grip, for 6-module installation, white. Suitable only for Classica cover plate

Product Status
3 - Active

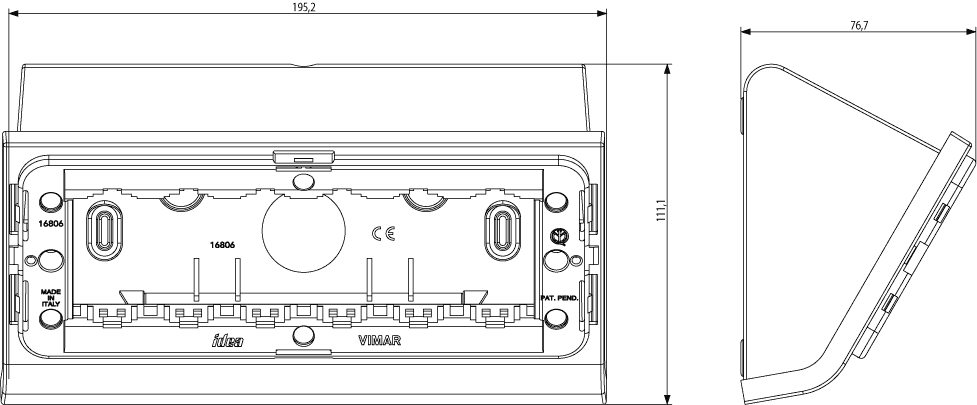

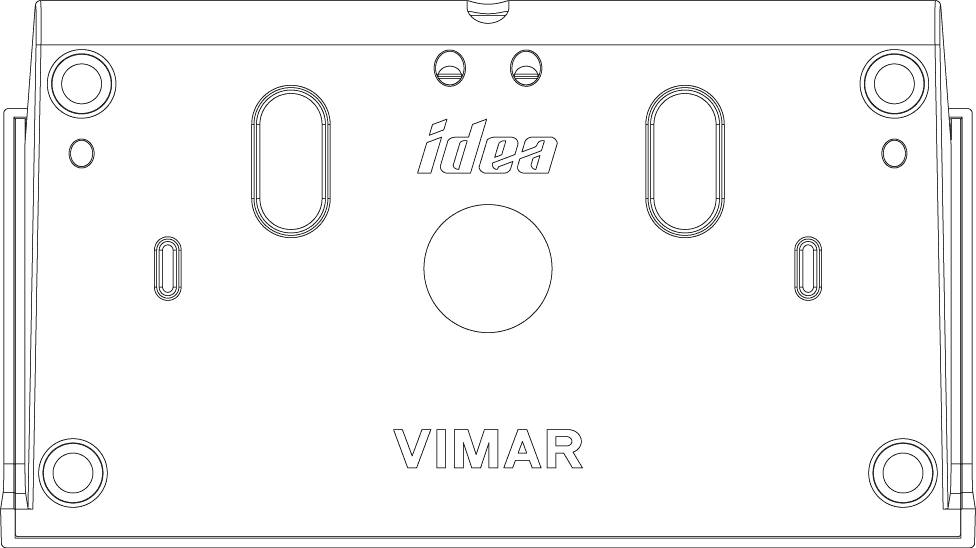

Drawings

Class group
Domestic switching devices
Class
Surface mounted box for flush-mounted switching equipment
Assembly arrangement
Other
Suitable for modular domestic switching devices
Yes
Number of modules (module system)
6
Number of units
6
Mounting direction
Horizontal
Material
Plastic
Material quality
Other
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9001
Transparent
No
With cover frame
No
With duct entry
No
With cable entry
Yes
With screw gland entry
No
Shock resistant
Yes
Degree of protection (IP)
IP20
Device width
196,60 mm
Device height
110,80 mm
Device depth
77,40 mm

00. CE Marking - EU

43. UKCA mark - Great Britain

Minimum order quantity: 2 NR

Barcode

Barcode Qty 1 NR
8007352119659
1 NR
19.5x11x7.8 [cm]
263.13 [g]
Barcode Qty 2 NR
8007352148017
2 NR
24.4x13.9x11.9 [cm]
628.07 [g]
