IP55 frame 3M grey - 16813.Q

16813.Q
System infrastructure / Enclosures and control units / Protected&watertight series / IDEA/8000-watertight&protected

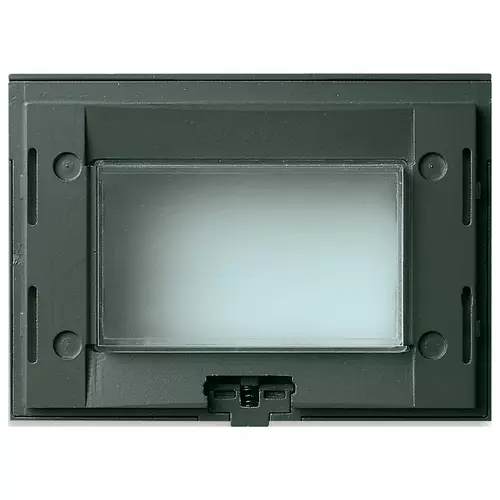

IP55 frame 3M grey
3-module mounting frame, with screws, cover with IP55 transparent elastic membrane for 3-module flush mounting boxes, grey. Suitable only for Classica cover plate except wood

Product Status
3 - Active

You may also be interested in

07937 - Screw for frame fixing - 35mm

07939 - Screw for frame fixing - 50 mm

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Domestic switching devices

Class
Holder for modular domestic switching devices

Model
Flush-mounted

Mounting method
Mounting with screw

Mounting method of the module inserts
Back side

Mounting direction
Horizontal and vertical

Number of modules horizontal (module system)
3

Number of modules vertical (module system)
1

With built-in installation box
No

With screws
Yes

Suitable for mounting in round junction box 60 mm
Yes

Flush-mounted installation
Yes

Suitable for subfloor installation duct box
No

Suitable for wall duct
No

Suitable for mounting on DIN-rail 35 mm
No

Material
Plastic

Material quality
Thermoplastic

00. CE Marking - EU

01. IMQ - Italy

15. CCC - China

43. UKCA mark - Great Britain

96. Electrotechnical expert

Minimum order quantity: 10 NR

---

Barcode

8007352082960

1 NR

12.1x9x3 [cm]

92.87 [g]

8007352084100

10 NR

28.4x18.4x9.5 [cm]

1,040.93 [g]

8007352369139

120 NR

59x38.5x30 [cm]

13,330.8 [g]
