IP55 frame 3M white - 16813.Q.B

16813.Q.B

Idea / Mounting frames / Special mounting frames

IP55 frame 3M white
3-module mounting frame, with screws, cover with IP55 transparent elastic membrane for 3-module flush mounting boxes, white. Suitable only for Classica cover plate except wood

Product Status
3 - Active

You may also be interested in

07937 - Screw for frame fixing - 35mm

07939 - Screw for frame fixing - 50 mm

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data
• Ask a question

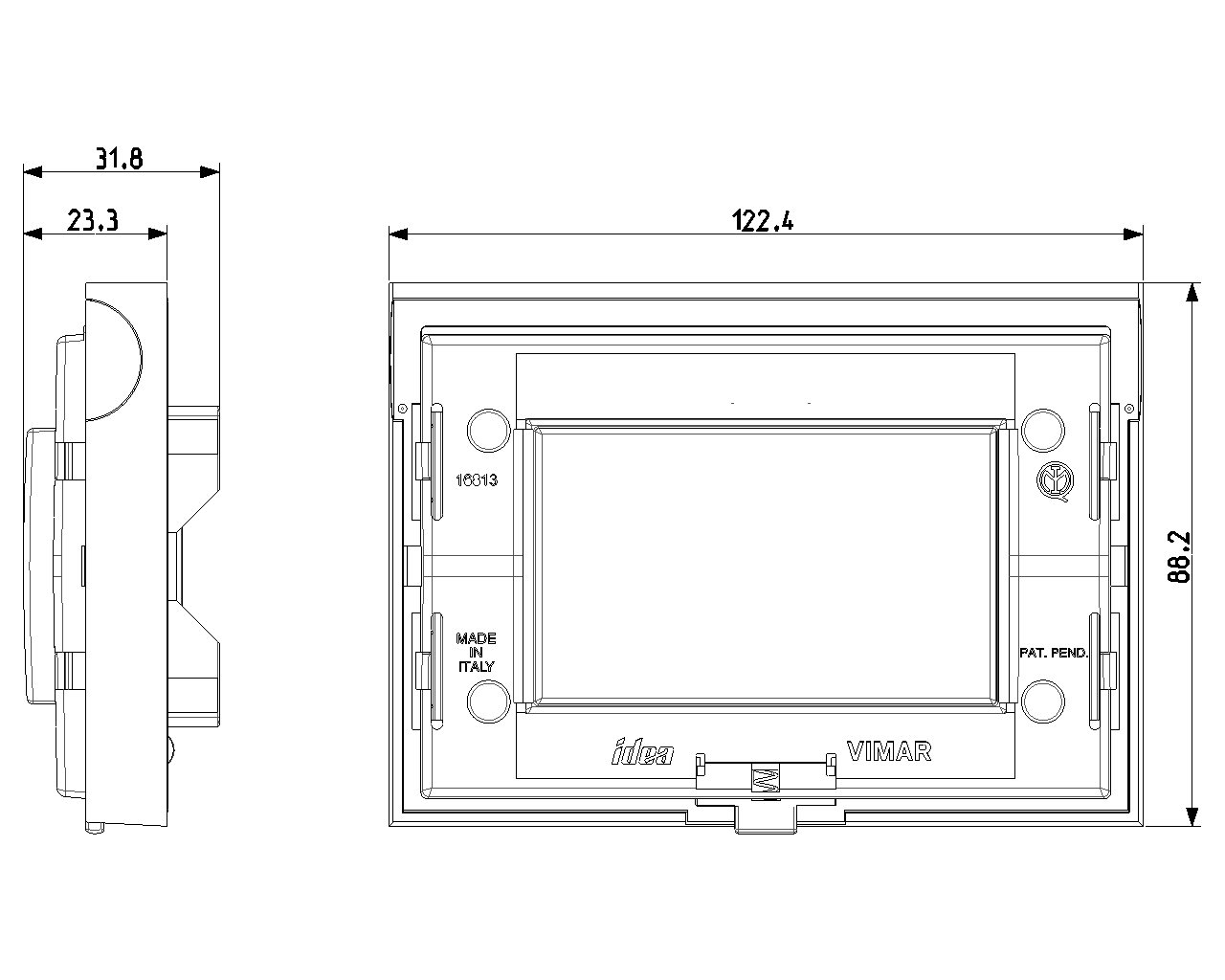

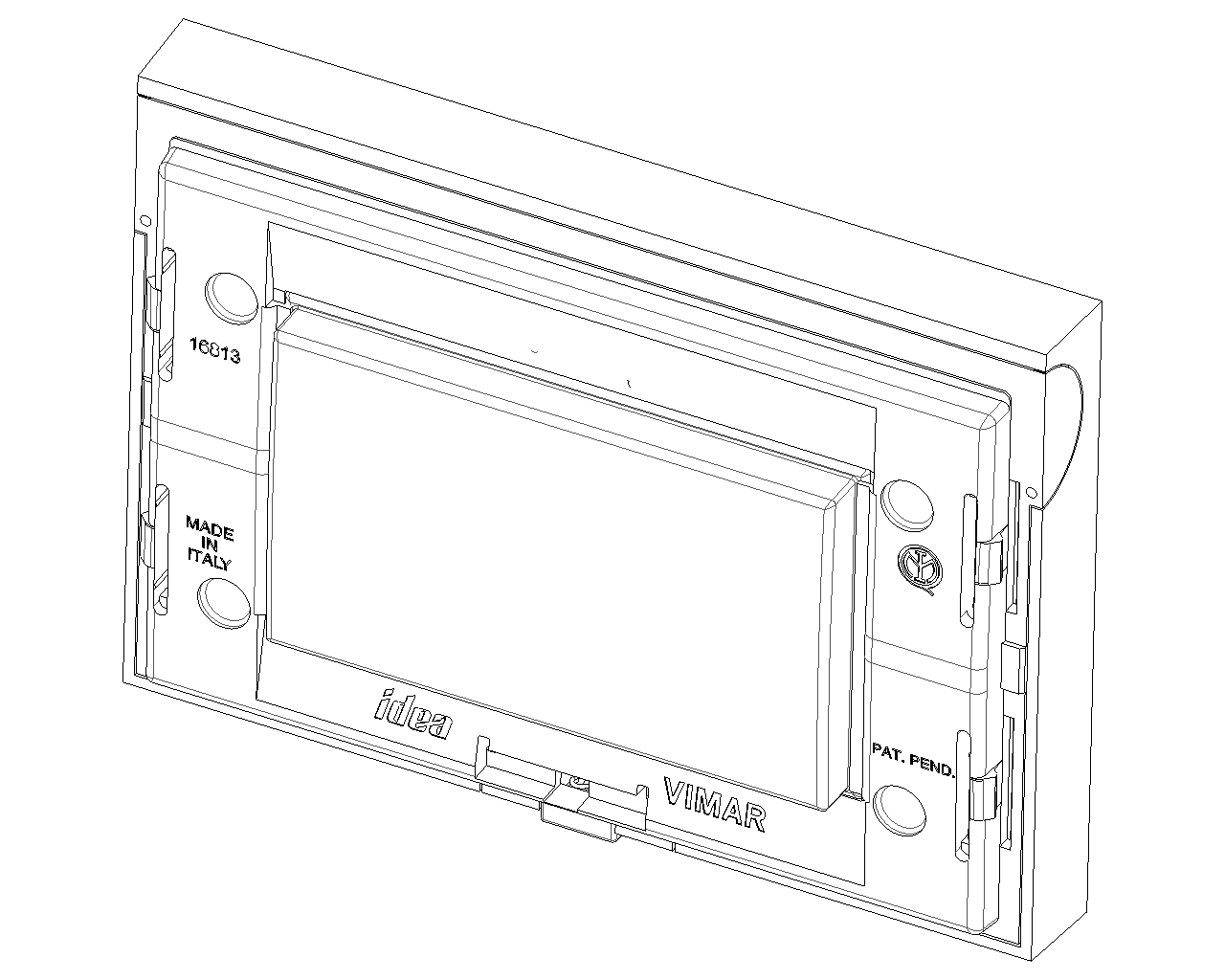

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Domestic switching devices

Class
Holder for modular domestic switching devices

Model
Flush mounted (plaster)

Mounting method
Mounting with screw

Mounting method of the module inserts
Back side

Mounting direction
Horizontal and vertical

Number of modules horizontal (module system)
3

Number of modules vertical (module system)
1

With built-in installation box
No

With screws
Yes

Suitable for mounting in round junction box 60 mm
Yes

Flush-mounted installation
Yes

Suitable for floor box
No

Suitable for wall duct
No

Suitable for mounting on DIN-rail 35 mm
No

Material
Plastic

Material quality
Thermoplastic

00. CE Marking - EU

01. IMQ - Italy

15. CCC - China

37. Marking - Morocco

96. Electrotechnical expert

Minimum order quantity: 10 NR

---

Barcode

8007352082977

1 NR

12.1x9x3 [cm]

94.4 [g]

8007352084117

10 NR

28.4x18.4x9.5 [cm]

1,061.33 [g]

8007352637801

120 NR

59x38.5x30 [cm]

13,482 [g]
