1P 16AX 1-way switch Metal - 19001.M

Pdf

19001.M
Wiring devices / Traditional wiring devices / ARKÉ / Devices

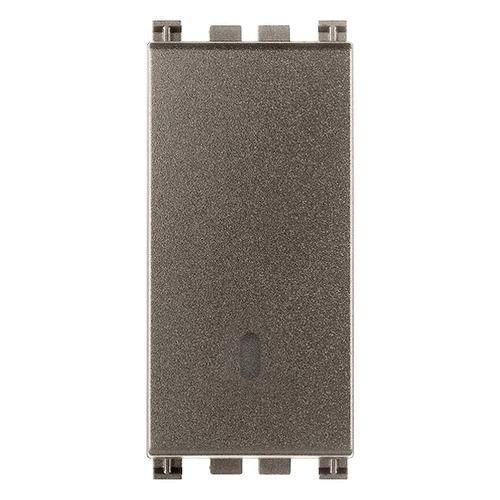

1P 16AX 1-way switch Metal
1P 16 AX 250 V~ 1-way switch, lightable, replaceable button, Metal. Max 200 W for self-ballasted lamps (IEC 60669-1:2017)

Product Status
3 - Active

Class group
Domestic switching devices
Class
Installation switch
Wiring system
Off switch 1-pole
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
1
Push button switch
Yes
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
Colour
Aluminium
RAL-number (similar)
9007
Label space/information surface
Yes
Illumination
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 V
Rated current
16,00 A
Feedback-signal contact
No
Connection type
Screwed terminal
Washing machine switch
No
Device width
22,30 mm
Device height
49,00 mm
Device depth
36,80 mm
Built-in depth
25,00 mm

00. CE Marking - EU

07. INGCER - Chile

13. SNI-MGI - Indonesia

14. TSE - Turkey

19. NOM - Mexico

29. QCERT - Colombia

31. TISI - Thailand

34. PSE - Japan

36. ISI - India

37. Marking - Morocco

50. Product Environm. Profile

92. RoHS UAE

Minimum order quantity: 50 NR

Barcode

Barcode Qty 1 NR
8007352594975
1 NR
4.1x2.8x5.3 [cm]
25 [g]
Barcode Qty 50 NR
8007352594982
50 NR
21.4x11.6x14.2 [cm]
1,331 [g]
Barcode Qty 500 NR
8007352594999
500 NR
57.5x22.5x30 [cm]
14,300 [g]
Barcode Qty 10,500 NR
8007352750463
10,500 NR
120x80x105 [cm]
289,464 [g]
