1P NO 10A push-button 2M greyCode 19008.2

Name: 1P NO 10A push-button 2M grey
Brand: Vimar
Availability: InStock

Download as PDFPDF

19008.2: Wiring devices / Traditional wiring devices / ARKÉ / Devices
1P NO 10A push-button 2M grey: 1P NO 10 A 250 V~ push button, lightable, replaceable button, grey - 2 modules
Product Status: 3 - Active

Video

Arké lives in your time

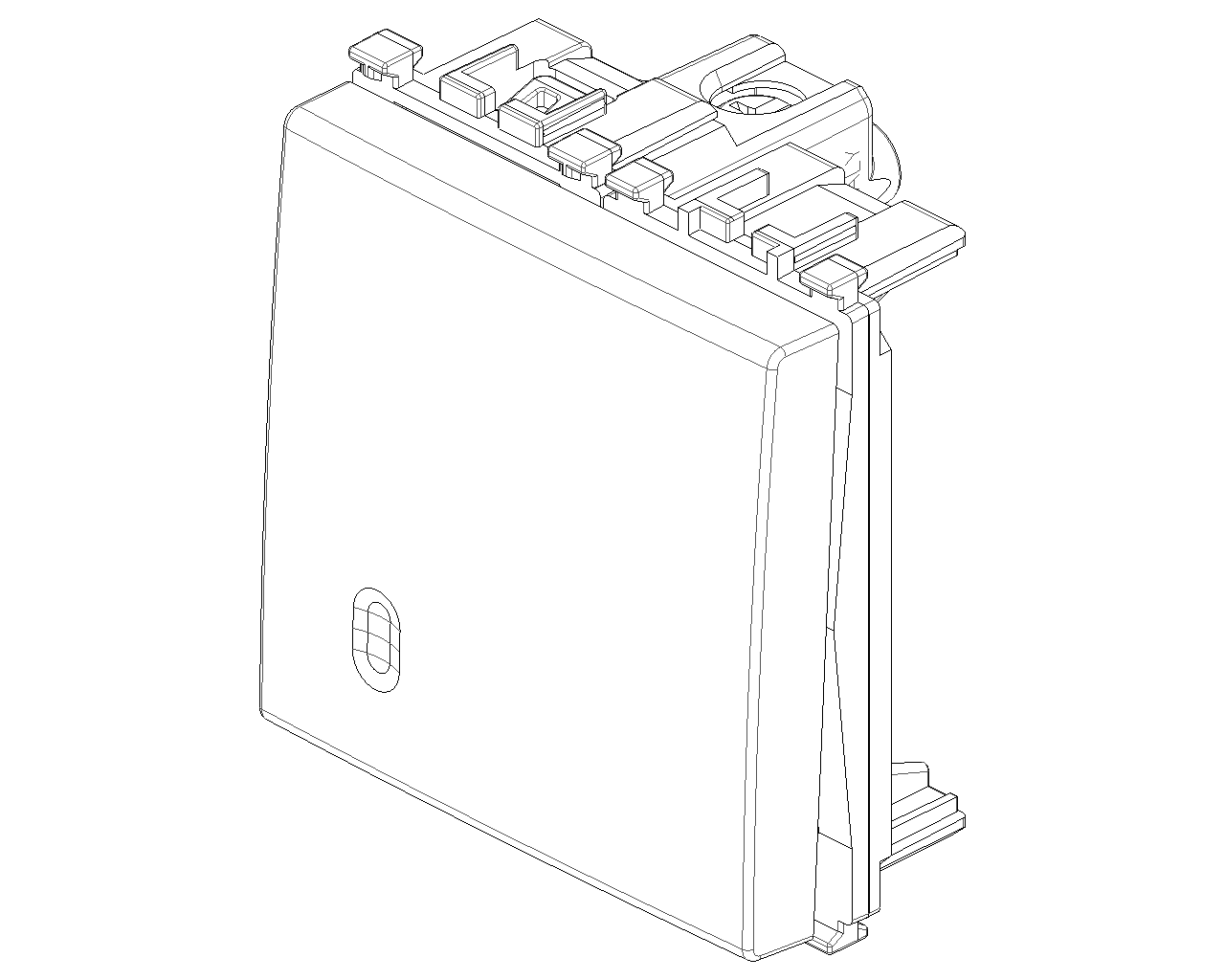

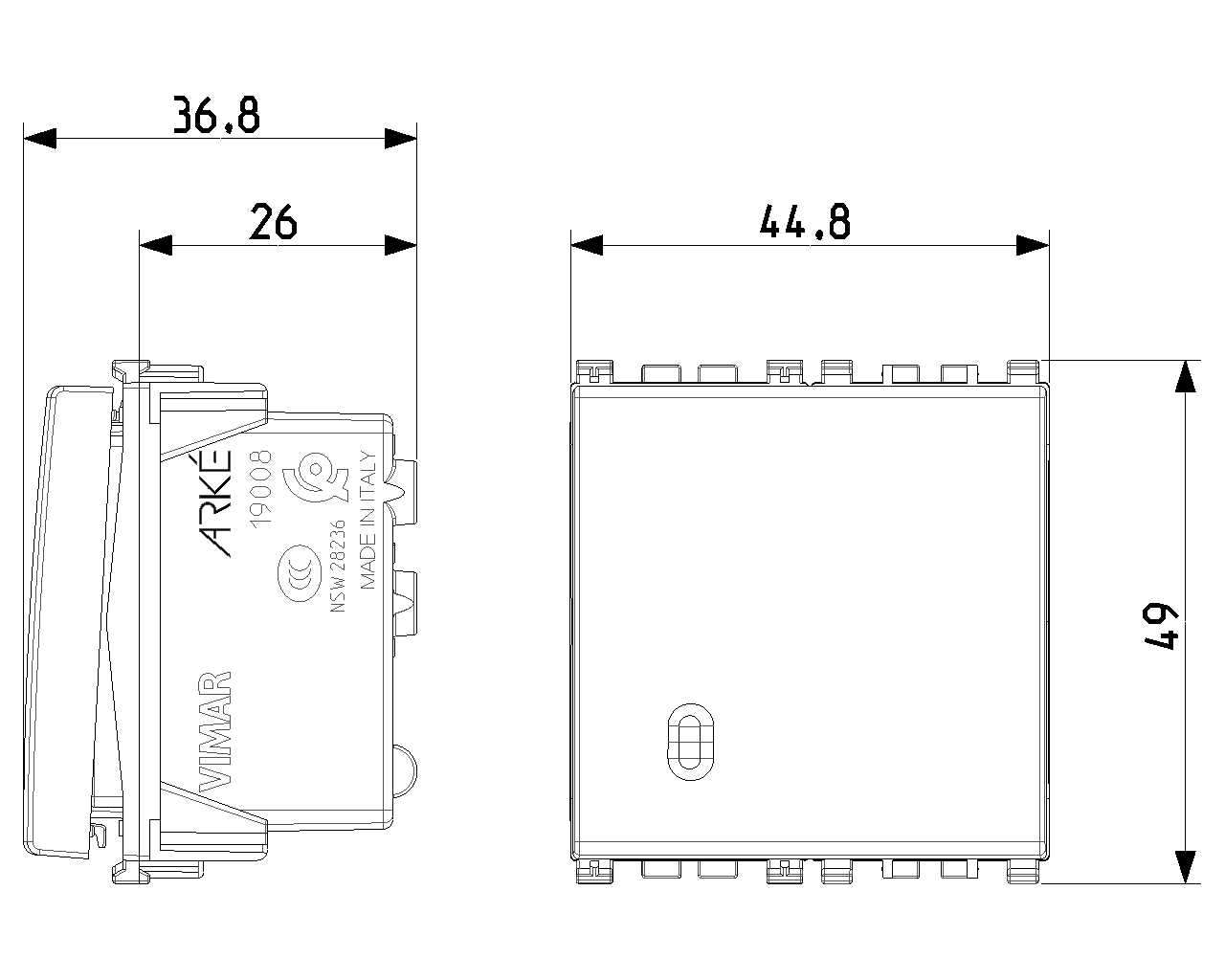

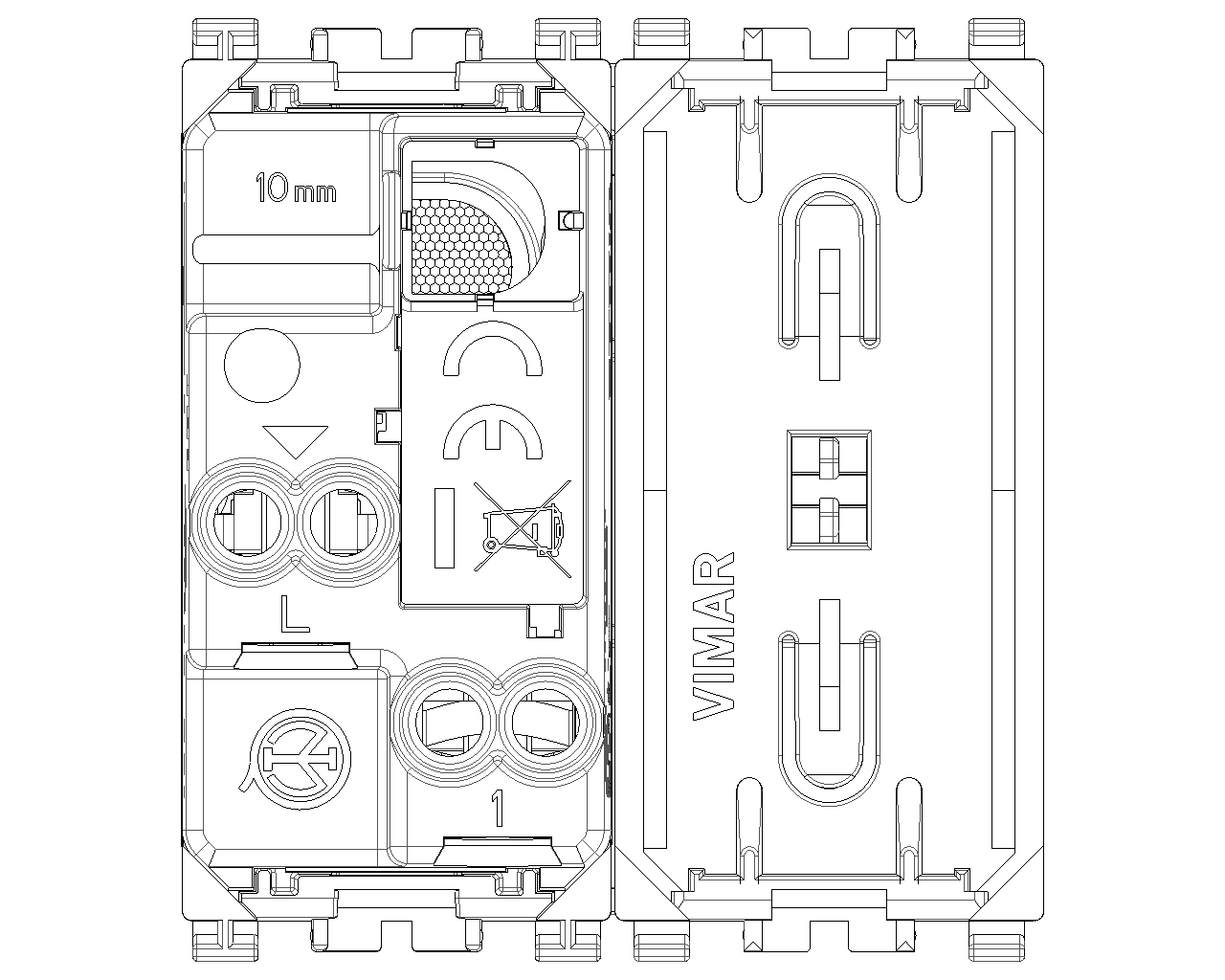

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Domestic switching devices

Class
Push button

Assembly arrangement
Modular device for domestic switching devices

Model
Single push button

Operating method
Push button

Number of rockers
1

Number of modules (module system)
200

Number of poles
1

Nominal voltage
250 V

Rated current
10,00 A

With lighting
Yes

Monitoring contact
No

Mounting method
Built-in

Type of fastening
Engage (snap)

Material
Plastic

Material quality
Thermoplastic

Halogen free
Yes

Surface protection
Untreated

Surface finishing
Matt

Colour
Grey

RAL-number (similar)
7015

Transparent
No

Label space/information surface
Yes

Suitable for degree of protection (IP)
IP40

Device width
44,80 mm

Device height
49,00 mm

Device depth
36,90 mm

00. CE Marking - EU

01. IMQ - Italy

11. SNI-SUCOFINDO Indonesia

14. TSE - Turkey

15. CCC - China

19. NOM - Mexico

26. SASO - Saudi Arabia

31. TISI - Thailand

35. RCM - Australia

36. ISI - India

37. Marking - Morocco

92. RoHS UAE

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

8007352413078

1 NR

5.1x4.3x5.3 [cm]

34 [g]

8007352413085

20 NR

26.9x11.6x9 [cm]

760.8 [g]

8007352643482

240 NR

38x28.5x35.5 [cm]

9,660 [g]
