Vimar - 19008.B - 1P NO 10A push button white

19008.B
Wiring devices / Traditional wiring devices / ARKÉ / Devices

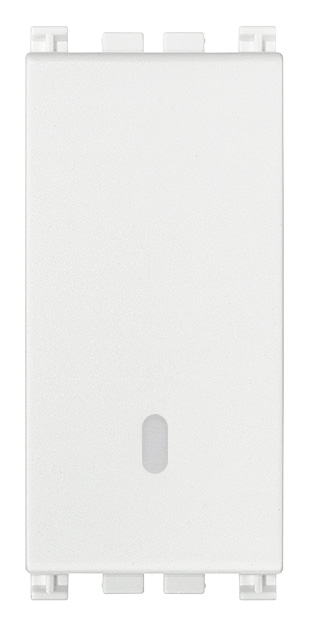

1P NO 10A push button white
1P NO 10 A 250 V~ push button, lightable, replaceable button, white

Product Status
3 - Active

Video

Arké lives in your time

Drawings

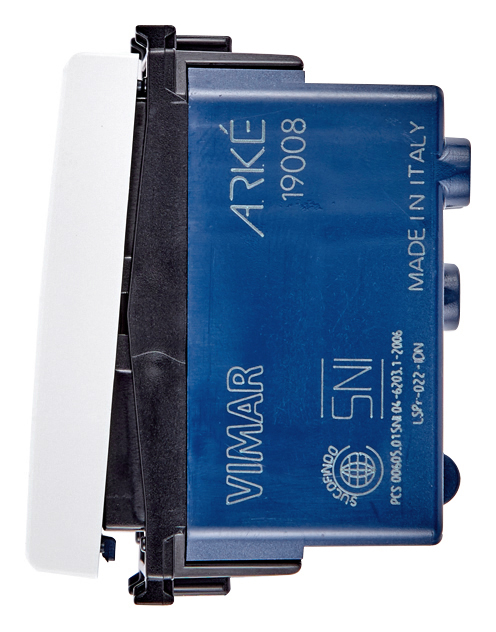

view encumbered art. 19008.B

PNG DXF

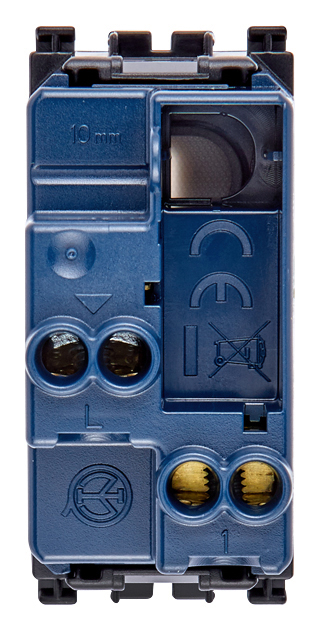

rear view art. 19008.B

PNG DXF

3D view art. 19008.B

PNG DXF

Class group
Domestic switching devices

Class
Push button

Assembly arrangement
Modular device for domestic switching devices

Model
Single push button

Method of operation
Push button

Number of rockers
1

Number of modules (module system)
100

Number of poles
1

Nominal voltage
250 V

Rated current
10,00 A

With lighting
Yes

Monitoring contact
No

Mounting method
Flush-mounted

Type of fastening
Engage (snap)

Material
Plastic

Material quality
Thermoplastic

Halogen free
Yes

Surface protection
Untreated

Surface finishing
Matt

Colour
White

RAL-number (similar)
9016

Transparent
No

Label space/information surface
Yes

Suitable for degree of protection (IP)
IP40

Device width
22,30 mm

Device height
49,00 mm

Device depth
36,90 mm

00. CE Marking - EU

01. IMQ - Italy

07. INGCER - Chile

11. SNI-SUCOFINDO Indonesia

13. SNI-MGI - Indonesia

14. TSE - Turkey

15. CCC - China

19. NOM - Mexico

26. SASO - Saudi Arabia

28. NSW - Australia

29. QCERT - Colombia

31. TISI - Thailand

36. ISI - India

37. Marking - Morocco

50. Product Environm. Profile

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 50 NR

Barcode

8007352444621

1 NR

4.1x2.8x5.3 [cm]

26.1 [g]

8007352444638

50 NR

21.4x11.6x14.2 [cm]

1,398 [g]

8007352444645

500 NR

57.5x22.5x30 [cm]

13,680 [g]

8007352750517

10,500 NR

120x80x105 [cm]

300,300 [g]
