Button 2M +diffuser white - 19027.B

Pdf

19027.B
Wiring devices / Traditional wiring devices / ARKÉ / Buttons

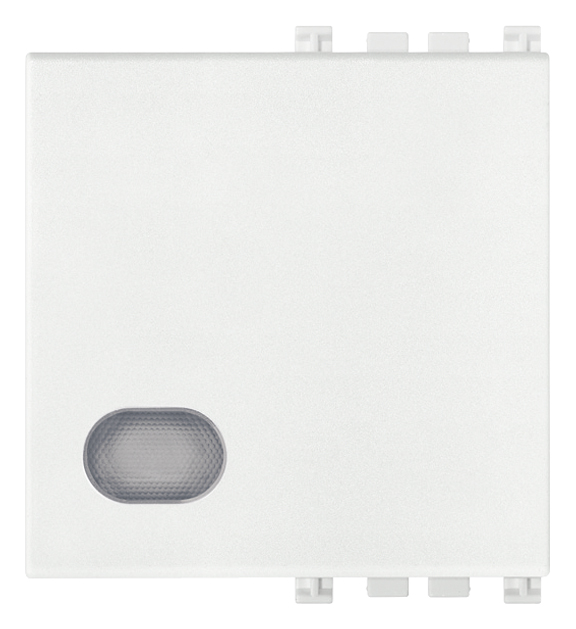

Button 2M +diffuser white
Interchangeable 2-module button, with lightable diffuser, white

Product Status
3 - Active

Class group
Domestic switching devices
Class
Control element/cover plate for domestic switching devices
Model
One-part rocker
Imprint/indication
None
Utilization
Switch/push button
Suitable for touch sensor connector for bus system
No
Type of fastening
Clamp mounting
Monitoring window/light outlet
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9016
With label area
No
With exchangeable lens/symbol
No
Suitable for degree of protection (IP)
IP40
Depth
1.130,00 mm

00. CE Marking - EU

29. QCERT - Colombia

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352454910
1 NR
4.4x4.9x2.2 [cm]
10.8 [g]
Barcode Qty 2 NR
8007352454927
2 NR
5.1x2.8x5.3 [cm]
21.6 [g]
Barcode Qty 10 NR
8007352462359
10 NR
14.2x6.7x5.9 [cm]
139.5 [g]
