Axial button 2M customizable white - 19132.0.B

Pdf

19132.0.B
Wiring devices / Traditional wiring devices / ARKÉ / Buttons

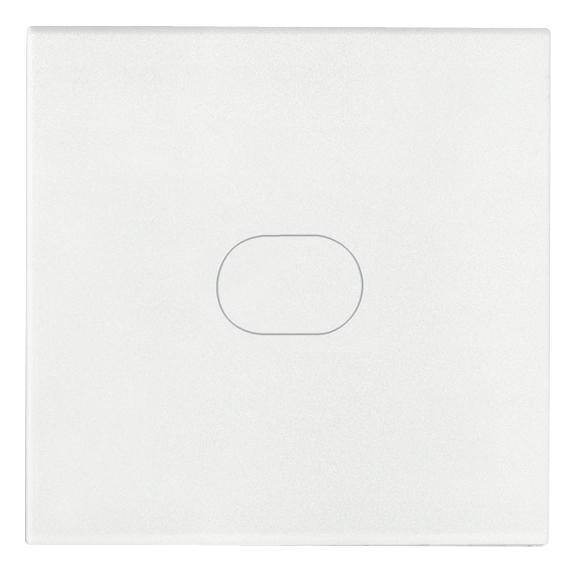

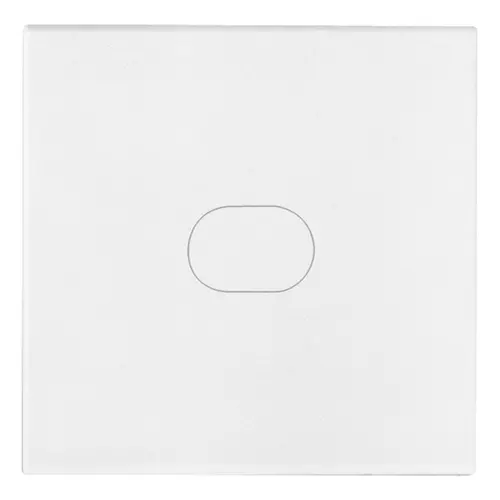

Axial button 2M customizable white
Interchangeable 2-module button, customizable with lightable symbol, for axial switches, white

Product Status
2 - Will be discontinued

Class group
Domestic switching devices
Class
Control element/cover plate for domestic switching devices
Model
One-part button
Imprint/indication
Label space
Utilization
Switch/push button
Suitable for touch sensor connector for bus system
No
Type of fastening
Clamp mounting
Monitoring window/light outlet
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9016
With label area
No
With exchangeable lens/symbol
No
Suitable for degree of protection (IP)
IP40
Depth
470,00 mm
Minimum order quantity: 5 NR

Barcode

Barcode Qty 1 NR
8007352464940
1 NR
4.5x4.4x0.5 [cm]
4.3 [g]
Barcode Qty 5 NR
8007352464957
5 NR
4.5x4.4x2.5 [cm]
21.5 [g]
Barcode Qty 25 NR
8007352464964
25 NR
14.2x6.7x5.9 [cm]
137.6 [g]
