19132.B
Wiring devices / Traditional wiring devices / ARKÉ / Buttons

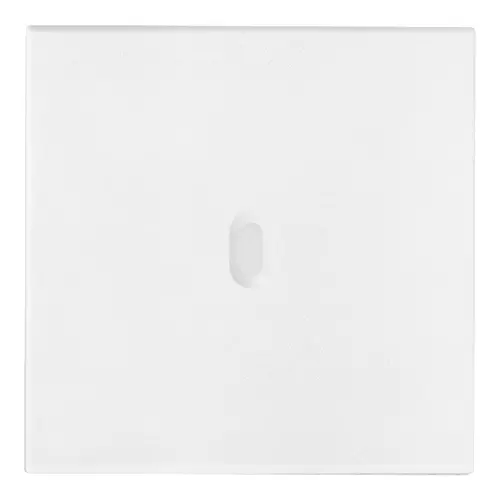

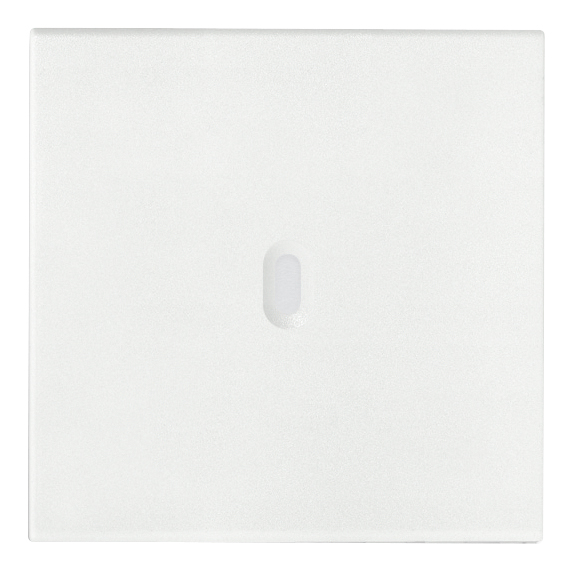

Axial button 2M white
Interchangeable 2-module button, without symbol, lightable, for axial switches, white
Product Status
3 - Active
Class group
Domestic switching devices
Domestic switching devices
Class
Control element/cover plate for domestic switching devices
Control element/cover plate for domestic switching devices
Model
One-part button
One-part button
Imprint/indication
None
None
Utilization
Switch/push button
Switch/push button
Suitable for touch sensor connector for bus system
No
No
Type of fastening
Clamp mounting
Clamp mounting
Monitoring window/light outlet
Yes
Yes
Material
Plastic
Plastic
Material quality
Thermoplastic
Thermoplastic
Halogen free
Yes
Yes
Surface protection
Untreated
Untreated
Surface finishing
Matt
Matt
Colour
White
White
RAL-number (similar)
9016
9016
With label area
No
No
With exchangeable lens/symbol
No
No
Suitable for degree of protection (IP)
IP40
IP40
Depth
470,00 mm
470,00 mm
00. CE Marking - EU
Minimum order quantity: 5 NR
Barcode
8007352459397
1 NR
4.5x4.4x0.5 [cm]
4.34 [g]
8007352459403
5 NR
4.5x4.4x2.5 [cm]
21.7 [g]
8007352459410
25 NR
14.2x6.7x5.9 [cm]
138.5 [g]
