RJ11 phone jack 6/4 +cover Metal - 19322.M

Pdf
Vimar - 19322.M - RJ11 phone jack 6/4 +cover Metal
Vimar - 19322.M - RJ11 phone jack 6/4 +cover Metal
19322.M

Arké Metal / Devices / Phone socket outlets

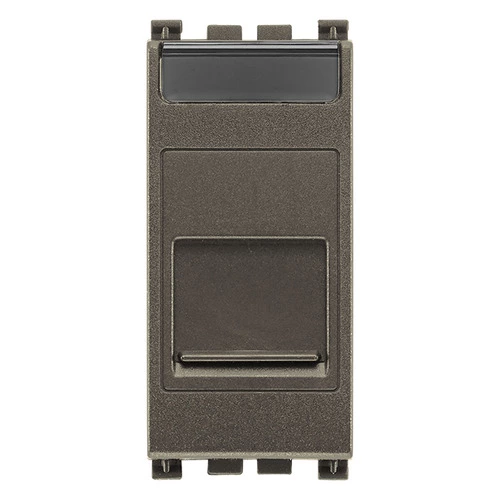

RJ11 phone jack 6/4 +cover Metal
RJ11 phone jack with dust cover, 6-position 4-conductor (6/4), screw terminals, Metal

Product Status
3 - Active

Class group
Domestic switching devices
Class
Insert/cover for communication technology
Assembly arrangement
Modular device for domestic switching devices
Utilization
UAE/IAE (ISDN)
Support ring
No
With dust cover
Yes
With hinged lid
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
Colour
Aluminium
RAL-number (similar)
9007
Transparent
No
Type of fastening
Clamp mounting
Number of modules (module system)
1
With strain relief
No
Luster terminal
No
Suitable for degree of protection (IP)
IP20
Device width
22,00 mm
Device height
49,00 mm
Device depth
43,20 mm

00. CE Marking - EU

10. EAC Eurasian Customs Union

43. UKCA mark - Great Britain

99. WEEE Directive

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352598874
1 NR
5.1x2.8x5.3 [cm]
21.8 [g]
Barcode Qty 10 NR
8007352598881
10 NR
14.4x11.6x6 [cm]
263.4 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
