120V 50-60Hz buzzer white - 19377.B

Pdf
19377.B

Arké white / Devices / Acoustic signallings

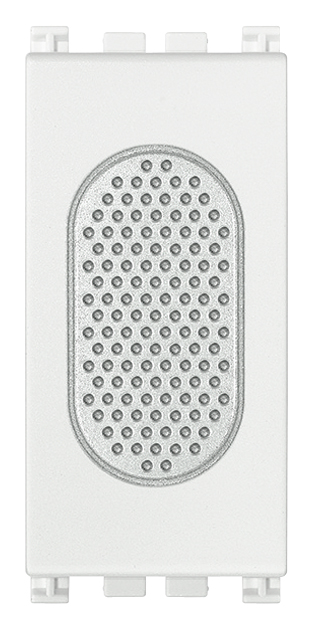

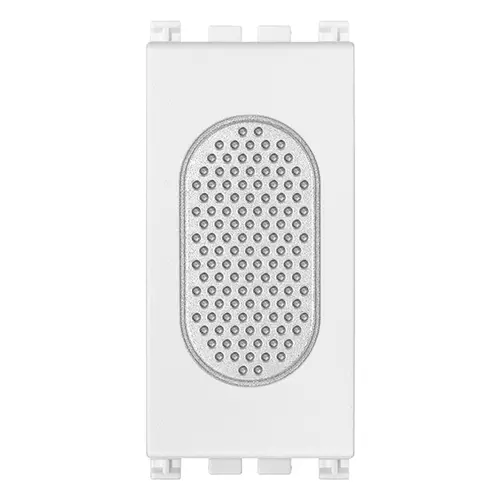

120V 50-60Hz buzzer white
Buzzer, 120 V~ 50-60 Hz, white

Product Status
3 - Active

Class group
Optical and acoustic signalling equipment
Class
Buzzer
Nominal voltage
120 v
Type of current
AC
Electricity consumption
0,07 A
Degree of protection (IP)
IP40
Loudness
75 dB
Colour housing
White
Mounting method
Other
Built-in transformer
No

00. CE Marking - EU

10. EAC Eurasian Customs Union

19. NOM - Mexico

37. Marking - Morocco

92. RoHS UAE

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352471603
1 NR

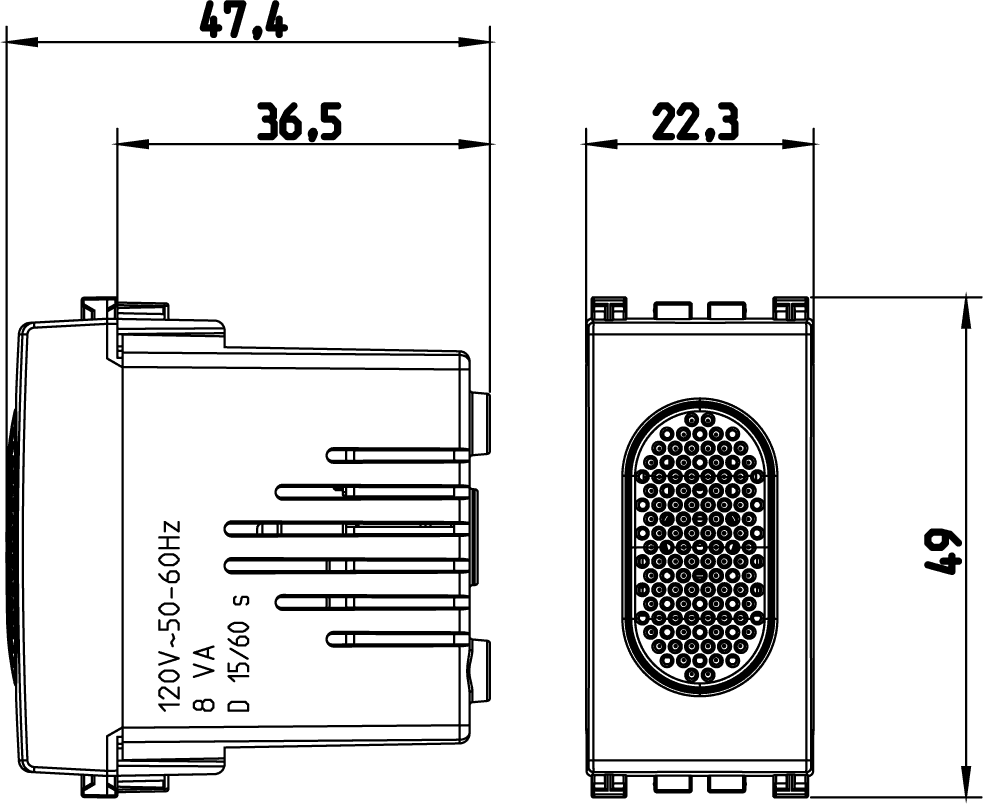

5.1x2.8x5.3 [cm]
43.8 [g]
Barcode Qty 10 NR
8007352471610
10 NR
14.4x11.6x6 [cm]
482.2 [g]
