1P+N C10 120-230V CB grey - 19405.10

19405.10
Wiring devices / Traditional wiring devices / ARKÉ / Devices

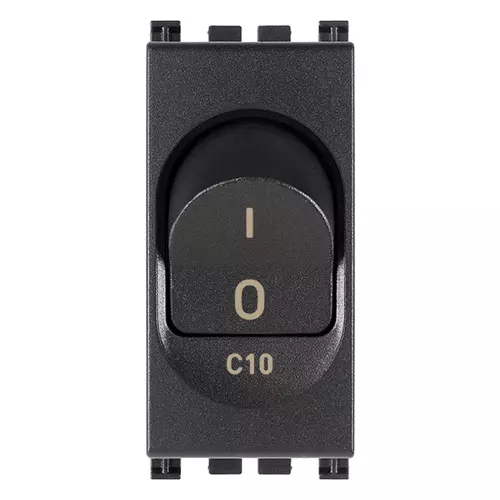

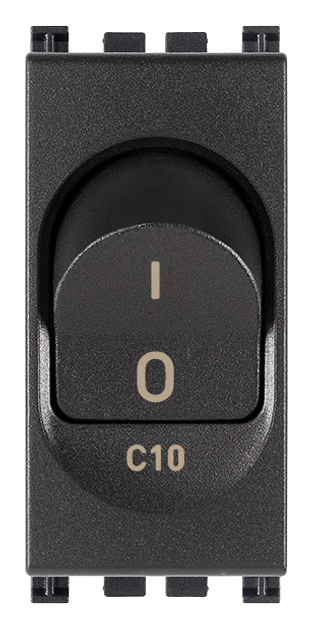

1P+N C10 120-230V CB grey
1P+N C 10 circuit breaker, supply voltage 120-230 V~ 50-60 Hz, breaking capacity 3000 A, grey

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Video

• Arké lives in your time

---

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Circuit breakers and fuses

Class
Miniature circuit breaker (MCB)

Built-in depth
38,00 mm

Release characteristic
C

Number of poles (total)
2

Number of protected poles
1

Rated current
10 A

Rated voltage
230 V

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
3,00 kA

Voltage type
AC

Frequency
50 - 60 HZ

Current limiting class
1

Concurrently switching neutral conductor
Yes

Over voltage category
3

Width in number of modular spacings
1

Degree of protection (IP)
IP40

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 10 NR

---

Barcode

8007352436848

1 NR

6x2.8x5.3 [cm]

53 [g]

8007352436855

10 NR

14.4x13.1x6 [cm]

577.6 [g]

8007352657434

200 NR

50.5x20x28 [cm]

11,552 [g]
