1P+N C10 120-230V CB Metal - 19405.10.M

Pdf
Vimar - 19405.10.M - 1P+N C10 120-230V CB Metal
Vimar - 19405.10.M - 1P+N C10 120-230V CB Metal

19405.10.M
Wiring devices / Traditional wiring devices / ARKÉ / Devices

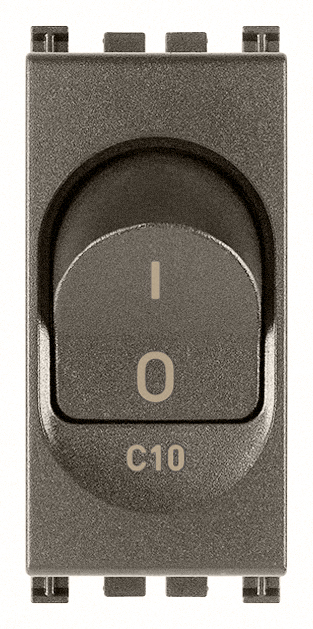

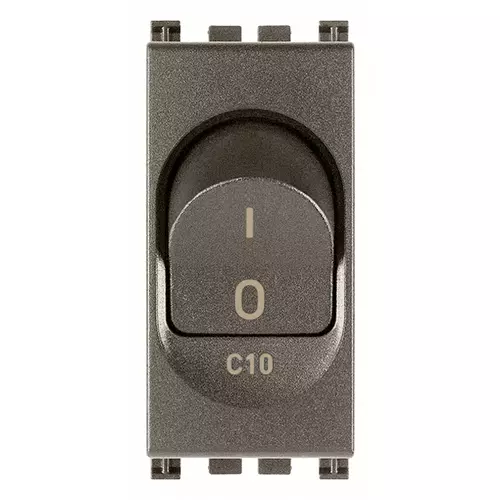

1P+N C10 120-230V CB Metal
1P+N C 10 circuit breaker, supply voltage 120-230 V~ 50-60 Hz, breaking capacity 3000 A, Metal

Product Status
3 - Active

Class group
Circuit breakers and fuses
Class
Earth leakage circuit breaker
Number of poles (total)
2
Number of protected poles
1
Rated voltage
230 V
Rated current
10 A
Rated fault current
10 A
Leakage current type
A
Current limiting class
1
Rated short-circuit breaking capacity Icn according to EN 61009-1
3,00 kA
Voltage type
AC
Frequency
50/60 Hz
Release characteristic
C
Concurrently switching neutral conductor
Yes
Over voltage category
3
Built-in depth
38,00 mm
Flush-mounted installation
Yes
Anti-nuisance tripping version
No
Degree of protection (IP)
IP40

00. CE Marking - EU

37. Marking - Morocco

43. UKCA mark - Great Britain

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352600607
1 NR
6x2.8x5.3 [cm]
52.7 [g]
Barcode Qty 10 NR
8007352602311
10 NR
14.4x13.1x6 [cm]
576.9 [g]
