Vertical badge switch 2M antibact.white - 19463.AB.B

Pdf
19463.AB.B

Arké white / Systems / Access control system

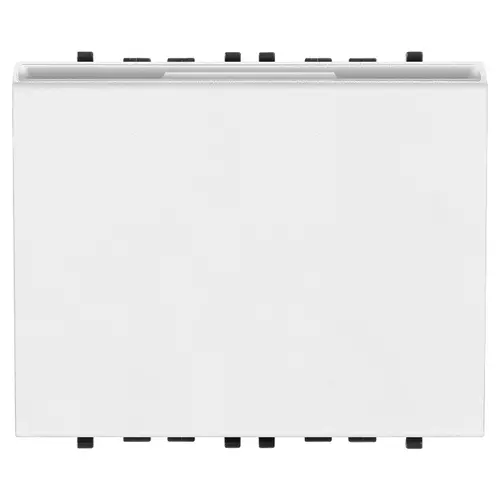

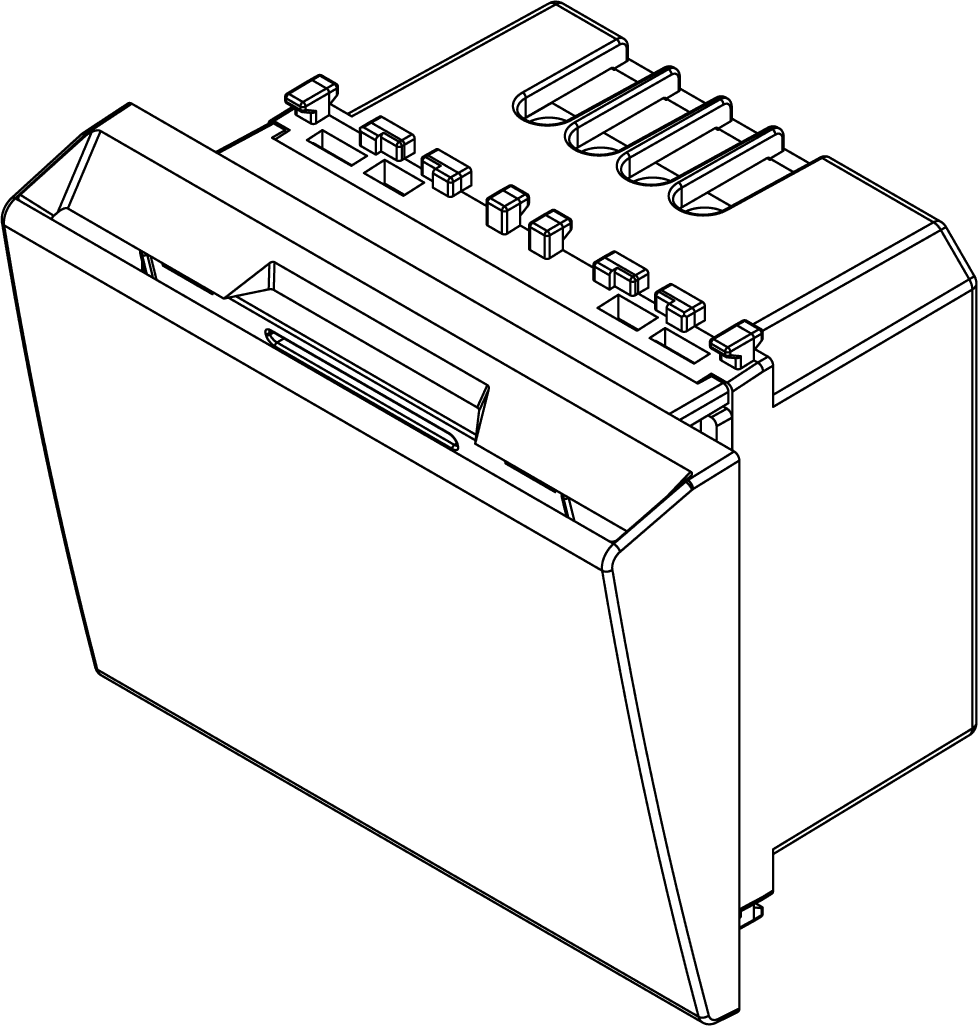

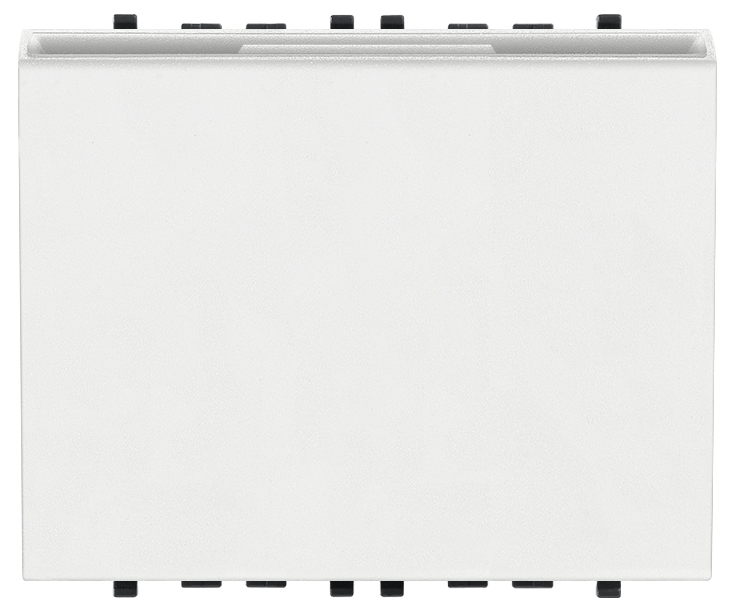

Vertical badge switch 2M antibact.white

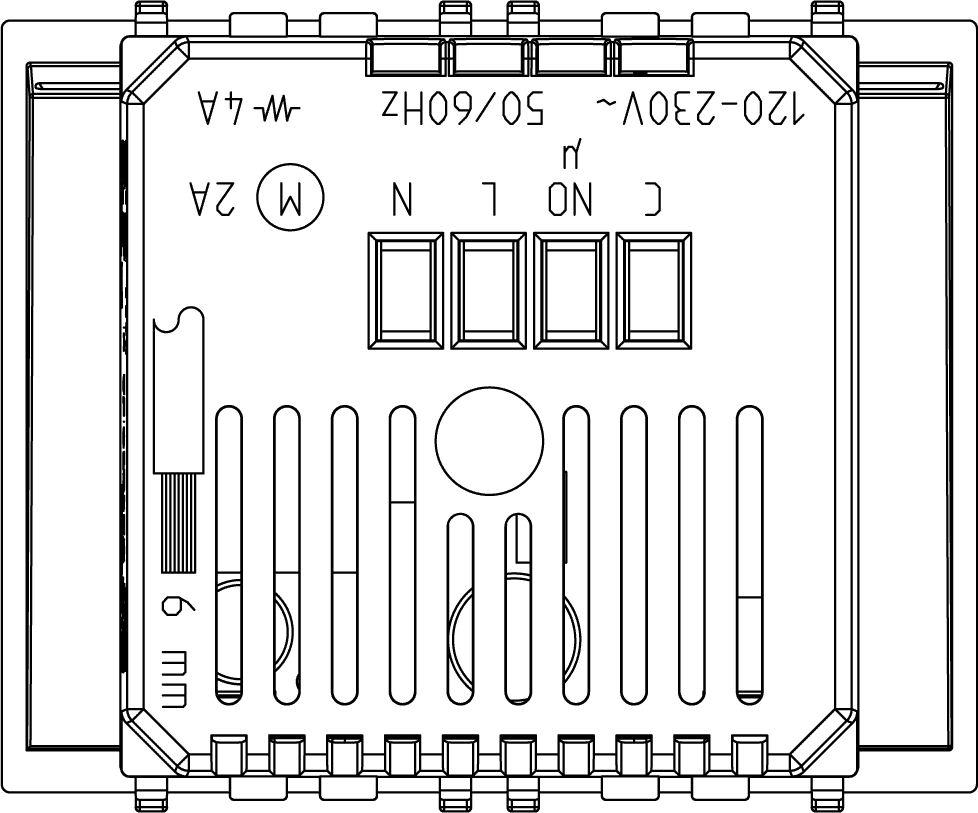

Upright electronic badge switch, 4 A 250 V~ NO (NON SELV) change-over relay output, power supply 120-230 V~ 50-60 Hz, slot lighting for location in the dark, trimmer for regulating switch-off time after removing the card, antibacterial material, white - 2 modules. Supplied without ISO card (badge)

Product Status
3 - Active

Class group
Alarm installations, emergency call and signalling
Class
Access control system
Standalone
Yes
Networkable
No
PC-binding
No
Type of interface
None
Reading strategy
Data medium
Signalling
None
Mounting method
Flush mounted (plaster)
Operating voltage at AC 50 Hz
250,00 - 250,01 v
Operating voltage at AC 60 Hz
250,00 - 250,01 v
Operating voltage at DC
220,00 - 230,00 v
Operating temperature
-5 - 35 °C
Degree of protection (IP)
IP20
Colour
White
Model
Other
Material
Plastic
Width
44,80 mm
Height
49,00 mm
Depth
43,50 mm

00. CE Marking - EU

10. EAC Eurasian Customs Union

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352652668
1 NR
5.2x5.7x7.6 [cm]
68.5 [g]
Barcode Qty 5 NR
8007352652675
5 NR
21.4x11.6x6 [cm]
399.3 [g]
