Vertical badge switch Metal - 19465.M

Pdf
19465.M

Arké Metal / Systems / Access control system

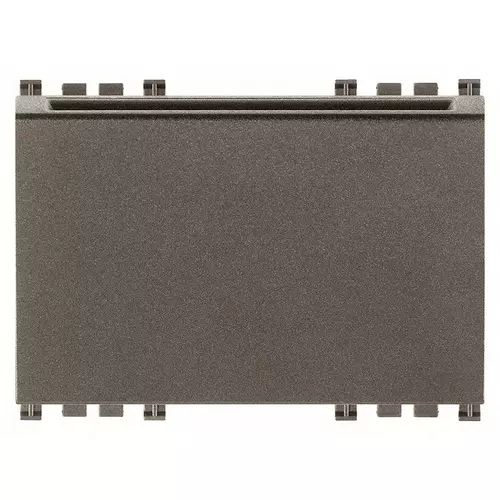

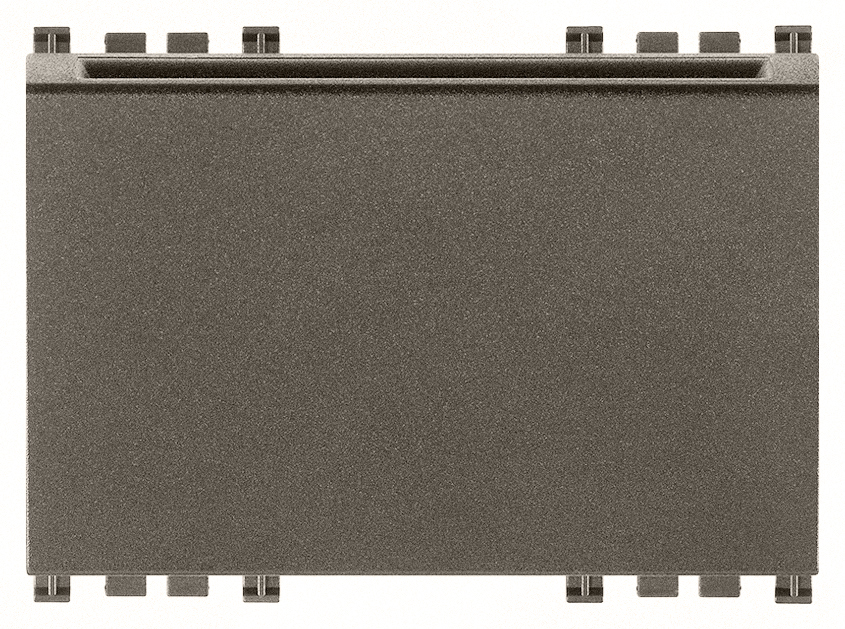

Vertical badge switch Metal
Electronic badge switch with vertical pocket, 16 A 250 V~ change-over relay output, supply voltage 230 V~ 50-60 Hz, 24 V~ 50-60 Hz and 24 Vdc (SELV), Metal - 3 modules. Provided without ISO card (badge)

Product Status
3 - Active

Class group
Alarm installations, emergency call and signalling
Class
Access control system
Mounting method
Flush mounted (plaster)
Colour
Silver
Material
Plastic

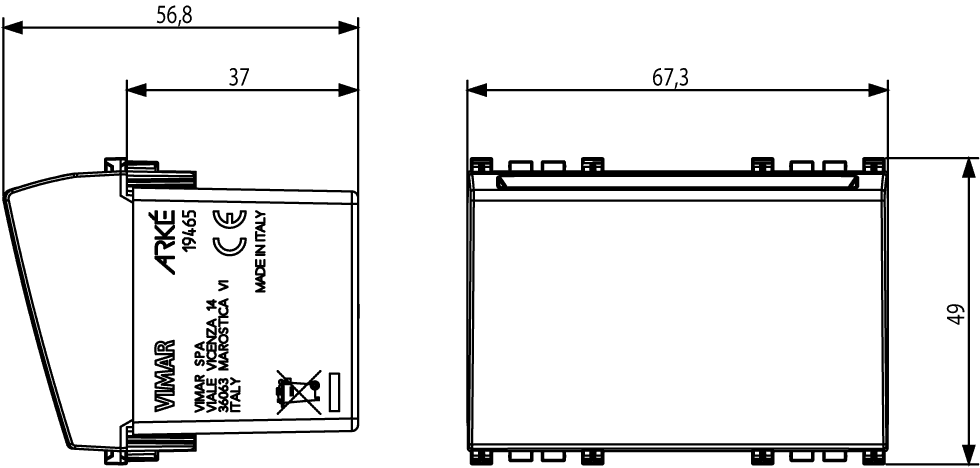

Width
67,50 mm
Height
49,00 mm
Depth
56,80 mm
Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352594883
1 NR
11.2x9.6x9.8 [cm]
140.2 [g]

Didn't find the answer you were looking for?

Ask a question

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
