IoT connected gateway 2M white - 19597.B

Pdf

19597.B
Wiring devices / View Wireless wiring devices / ARKÉ / Devices

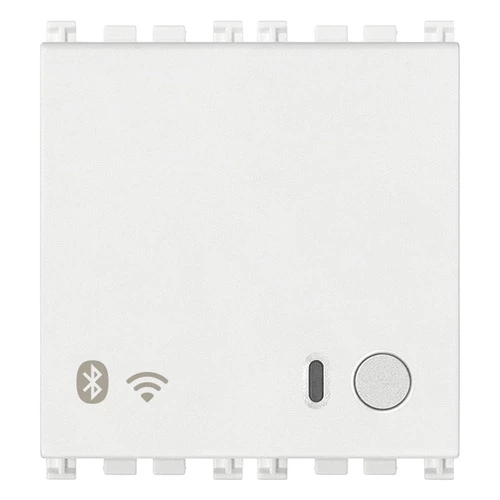

IoT connected gateway 2M white
View Wireless gateway, Bluetooth® wireless technology 4.2 Wi-Fi, RGB LED, 100-240 V 50/60 Hz power supply, white - 2 modules

  • Designed for the user to supervise via the View App and the Alexa, Google Assistant and Siri voice assistants

Product Status
3 - Active

You may also be interested in

Class group
Installation bus systems
Class
System interface/media gateway for bus system
Bus system KNX
No
Bus system KNX-RF (Radio Frequent)
No
Bus system radio frequent
Yes
Bus system LON
No
Bus system Powernet
No
Other bus systems
Other
Radio frequent bidirectional
Yes
Model
Bluetooth interface
Mounting method
Flush-mounted
Width in number of modular spacings
2
Demounting protection
No
With LED indication
Yes
Updateable
Yes
Protocol
Other
Provider dependent
No
Visualization
No
Web-Server
Yes
Radio interface
Yes
IR interface
No

00. CE Marking - EU

19. NOM - Mexico

29. QCERT - Colombia

37. Marking - Morocco

37. Marking - Morocco

40. Bluetooth technology

41. Wi-Fi CERTIFIED

92. RoHS UAE

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352628663
1 NR
5.7x5.3x7.7 [cm]
54 [g]
Barcode Qty 60 NR
8007352746336
60 NR
37.5x30x13.5 [cm]
3,600 [g]
Question: How many devices can I install in a Wireless system?
Answer: The system allows the configuration of a maximum of 64 devices for each gateway code 14597-16497-19597-20597
Question: Which App is dedicated to system configuration?
Answer: The system can be configured using the View Wireless App.
Question: Is gateway code 14597-16497-19597-20597 compulsory or can I install it and remove it at a later date?
Answer: To allow the system to be managed via the VIEW App, the presence of gateway code 14597-16497-19597-20597 is compulsory.
Question: In which App can you create system scenarios?
Answer: Solely in the VIEW App
Question: If I use gateway code 14597-16497-19597-20597, should the devices be configured in BLE or in Zigbee technology?
Answer: In the presence of gateway code 14597-16497-19597-20597, the devices have to work in BLE mode (default mode)
Question: How do you reset the devices?
Answer: Resetting is done by pressing the configuration push button for a prolonged amount of time, which must be done within 5 min of commissioning (powering) the product.
Question: Is an Internet connection necessary to transfer the connected system from the installer to the administrator (system delivery)?
Answer: Yes, the presence of a general-purpose Internet connection is necessary, but you do not necessarily have to be in the same WiFi network in which the gateway is configured.
Question: Is Energy meter art.02963 compatible/configurable with Zigbee technology?
Answer: Product 02963 is not designed to support Zigbee technology. Operation is envisaged solely for BLE technology, so it needs the dedicated system gateway code 14597-16497-19597-20597.
Question: To control a roller shutter via App, do I only need the module code 14594-16494-19594-20594 with the gateway art. 14597-16497-19597-20597?
Answer: The control is designed to control the roller shutter/slat using the on-board keys and via a wireless connection. The device has the possibility of being controlled with two different radio standards (exclusive to one another): Bluetooth mesh (default) or Zigbee. The Bluetooth mesh network implies the presence of gateway 20597-19597-16497-14597 and management will occur via the VIEW App, whereas when using Zigbee technology a Zigbee 3.0 gateway is required (such as Amazon Echo Plus, Echo Show or Echo Studio) with related management via Amazon App.
Question: Using the Alexa assistant, fitted with Zigbee hub, can I control the Vimar connected 1-way switch via the Amazon App or do I also need the gateway art. 14597-19597-20597-16497?
Answer: If you want to use the IoT connected simple actuator or roller shutters with Alexa (fitted with built-in ZigBee Hub), you do not need the Vimar gateway as the configuration and management of our products will be governed directly by Alexa’s ZigBee hub via the dedicated Amazon App;
Question: Does the Internet cable have to be connected?
Answer: The gateway does not require a wired connection, the device uses the Bluetooth communication protocol and Wi-Fi to communicate with the devices and with the Cloud.
