Classic plate 3M techno antibact. white - 19653.AB.74

Pdf

19653.AB.74
Wiring devices / Traditional wiring devices / ARKÉ / Cover plates

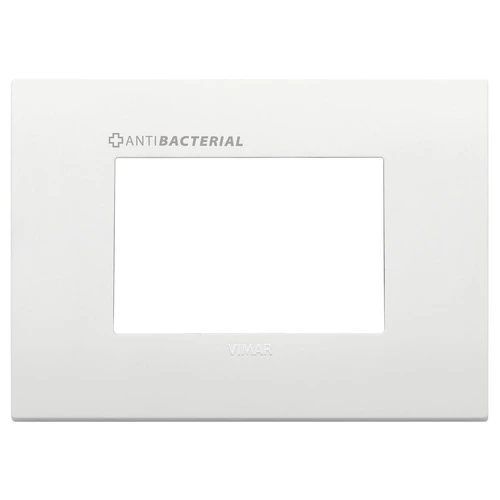

Classic plate 3M techno antibact. white
3-module Classic cover plate, technopolymer, antibacterial material, white

Product Status
3 - Active

Drawings

Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
3
Mounting direction
Horizontal and vertical
Number of units horizontal
3
Number of units vertical
1
Number of modules horizontal (module system)
3
Number of modules vertical (module system)
1
With mounting grid
No
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Other
Surface finishing
Matt
Colour
White
RAL-number (similar)
9016
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
122,00 mm
Height
90,00 mm
Depth
8,60 mm
Built-in width
122,00 mm
Built-in height
90,00 mm
Diameter bore hole (opening)
0 mm

00. CE Marking - EU

01. IMQ - Italy

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352653221
1 NR
12.2x9x0.9 [cm]
20 [g]
Barcode Qty 10 NR
8007352653238
10 NR
14.1x9.8x9.9 [cm]
249.8 [g]
Barcode Qty 160 NR
8007352654020
160 NR
39x29.5x22 [cm]
4,415 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
