Classic plate 4M techno antibact. white - 19654.AB.74

Pdf
19654.AB.74

Arké / Cover plates / Technopolymer Classic cover plates

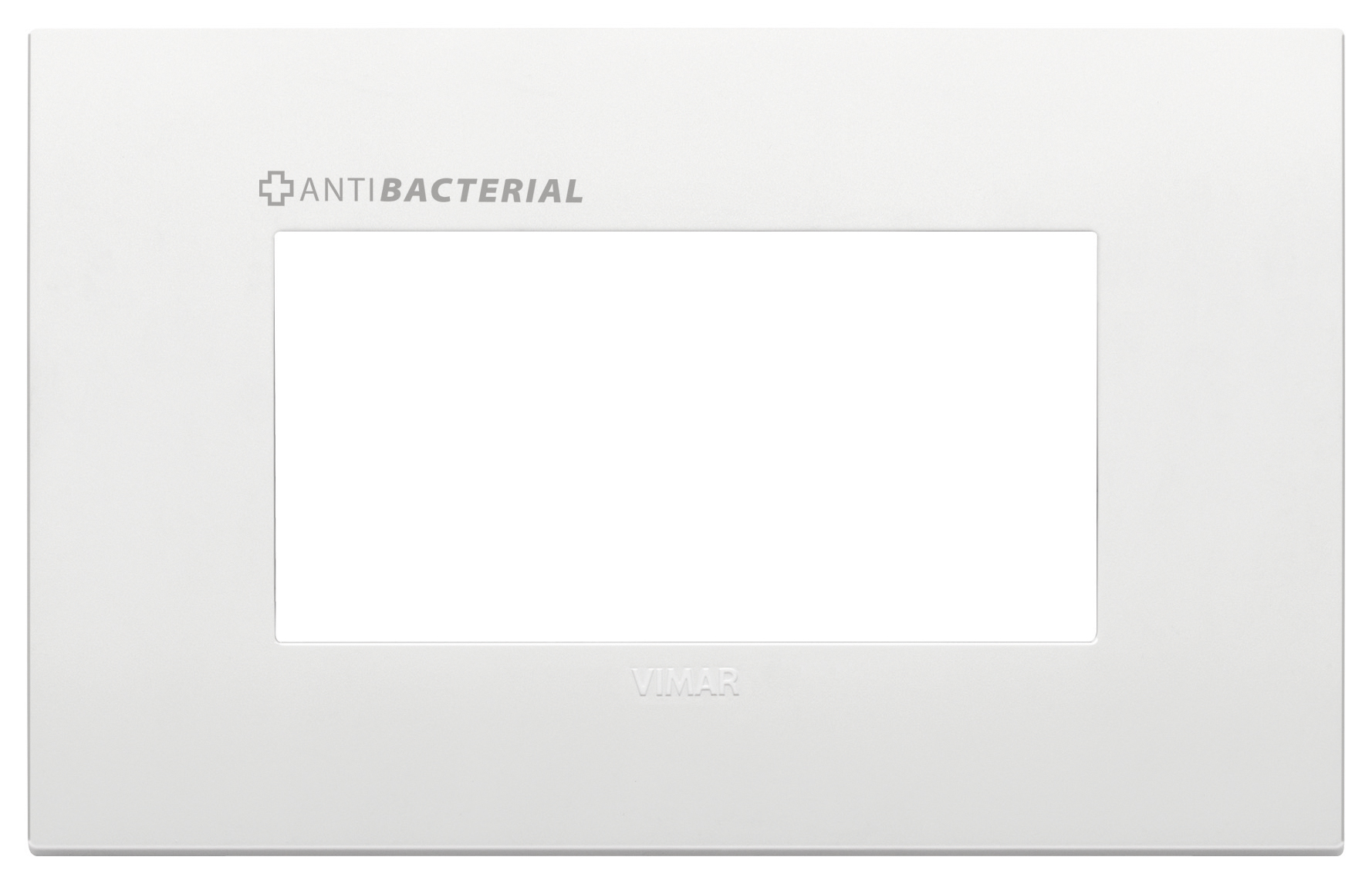

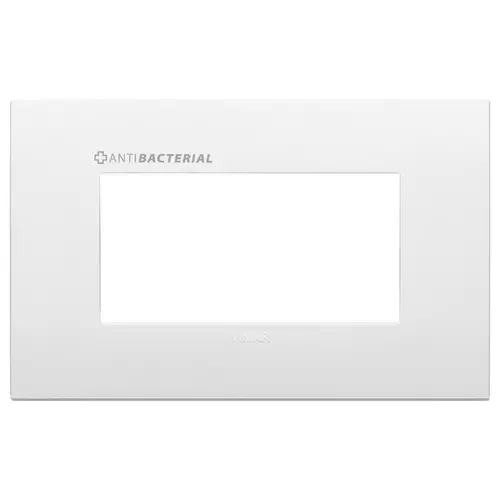

Classic plate 4M techno antibact. white
4-module Classic cover plate, technopolymer, antibacterial material, white

Product Status
3 - Active

Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
4
Mounting direction
Horizontal and vertical
Number of units horizontal
4
Number of units vertical
1
Number of modules horizontal (module system)
4
Number of modules vertical (module system)
1
Number of switch inserts
0
With mounting grid
No
Suitable for floor box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Other
Surface finishing
Matt
Colour
White
RAL-number (similar)
9016
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
144,50 mm
Height
90,00 mm
Depth
8,60 mm
Built-in width
144,50 mm
Built-in height
90,00 mm
Diameter bore hole (opening)
0 mm
Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352653269
1 NR
14.5x9x0.9 [cm]
22.2 [g]
Barcode Qty 10 NR
8007352653276
10 NR
17.1x9.8x9.9 [cm]
277 [g]
Barcode Qty 360 NR
8007352654068
360 NR
59x34.5x32.5 [cm]
8,742 [g]
