MASTER rotary dimmer 120V Next - 20136.120.N

Pdf
Vimar - 20136.120.N - MASTER rotary dimmer 120V Next
Vimar - 20136.120.N - MASTER rotary dimmer 120V Next
20136.120.N

Eikon Next / Devices / Electronic devices

MASTER rotary dimmer 120V Next
Universal-dimmer, 120 V~ 60 Hz for: 40-500 W incandescent lamps, 40-300 VA electronic transformers, 10-200 W CFL lamps, 3-200 W LED lamps, LED electronic supply units, ON/OFF or built-in or from NO peripheral push buttons control, regulation by rotary potentiometer, MASTER function for 20137.120, minimum luminosity regulation, visible in darkness, Next. Not for Isoset enclosures

Product Status
2 - Will be discontinued

Sheets, Manuals, Documentation

Drawings

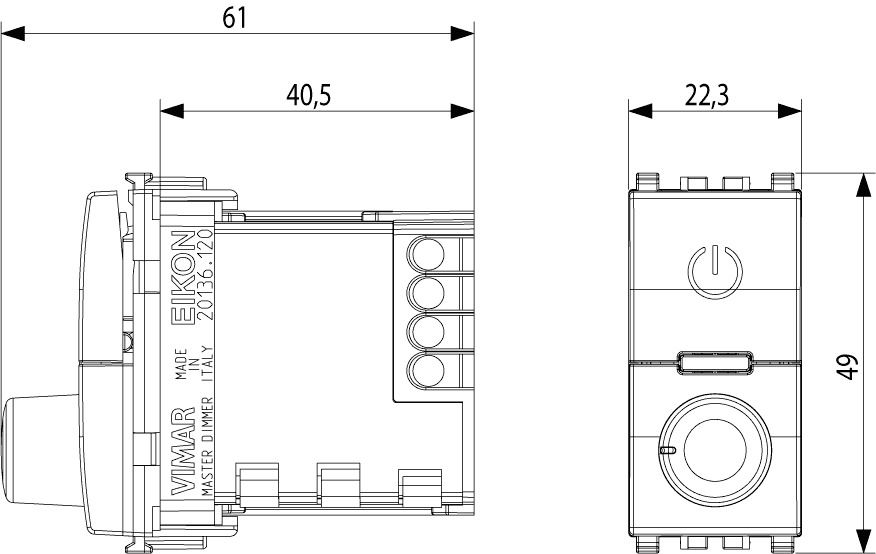

view encumbered art. 20136.120.N
PNG DXF
rear view art. 20136.120.N
PNG DXF
3D view art. 20136.120.N
PNG DXF
Class group
Domestic switching devices
Class
Dimmer
Method of operation
Turn button
Type of load
Universal and LED Retrofit
Applicable with button
Yes
Applicable with movement sensor
No
Applicable with presence indicator
No
Applicable with time switch/timer
No
Applicable with transmission button
No
Applicable with infrared button
No
Mounting method
Flush-mounted
Type of fastening
Snapper mounting
Material
Plastic
Material quality
Thermoplastic
Surface protection
Lacquered
Surface finishing
Matt
Colour
Silver
RAL-number (similar)
9022
Transparent
No
Suitable for degree of protection (IP)
IP40
Nominal voltage
120,00 - 120,01 V
Frequency
60,00 - 60,01 HZ
Control voltage
120,00 - 120,01 V
Connection type
Screwed terminal
Device width
22,30 mm
Device height
49,00 mm
Device depth
61,30 mm

19. NOM - Mexico

37. Marking - Morocco

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352482111
1 NR
5.2x3.9x6.2 [cm]
59.7 [g]
Barcode Qty 10 NR
8007352482128
10 NR
20.5x11.5x7 [cm]
660 [g]
