Switched 2P+E 15A English outlet white - 20217.L.B

20217.L.B

Eikon white / Devices / Controlled socket outlets

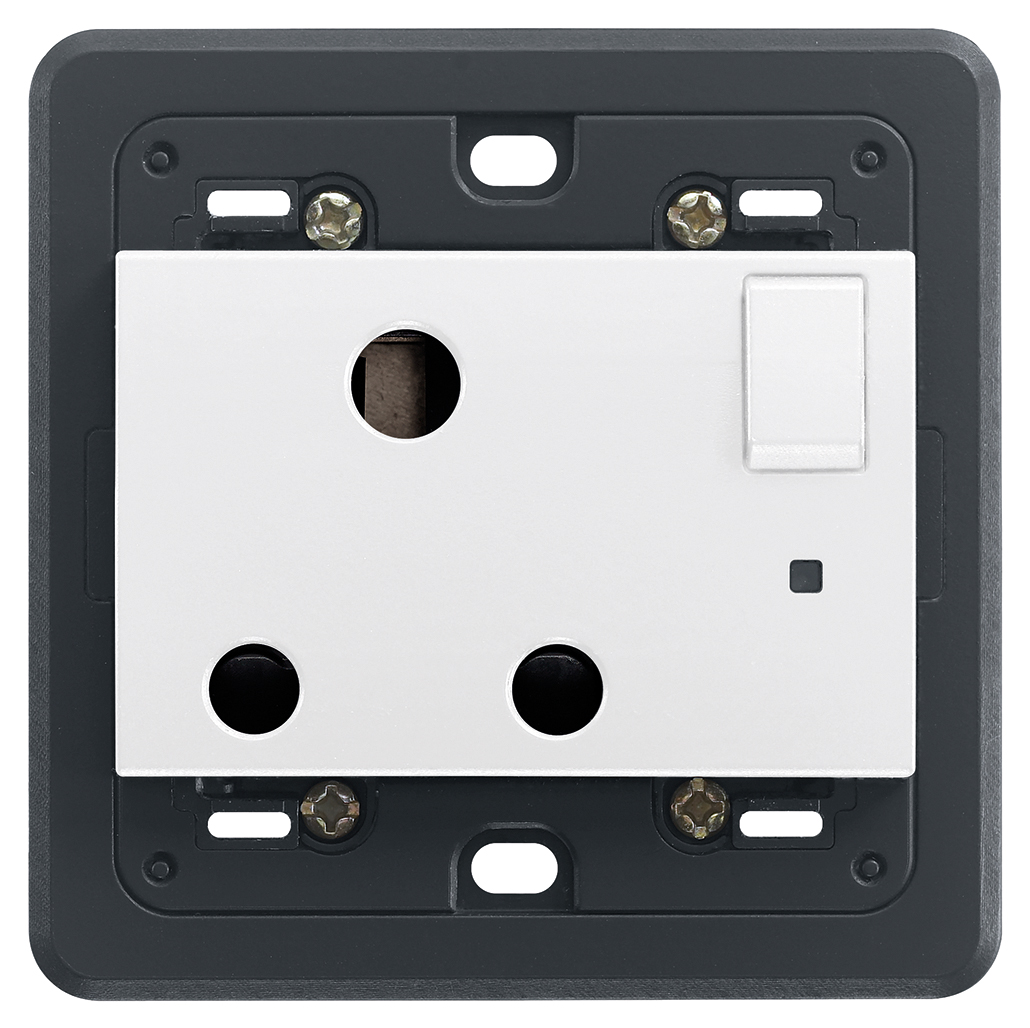

Switched 2P+E 15A English outlet white
2P+E 15 A 250 V~ SICURY socket outlet, English standard, 2P 1-way switch, indicator unit, with built-in mounting frame for 3-module British standard installation, white

Product Status
3 - Active

Class group
Domestic switching devices
Class
Socket outlet
Model
British Standard
With built-in USB power supply
No
Number of units
2
Number of modules (module syst
2
Number of socket outlets switc
1
Imprint/indication
Without imprint
Connection type
Screwed terminal
With hinged lid
No
With child-protection
Yes
Label space/information surfac
Yes
Colour
White
RAL-number (akin)
9016
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
Yes
With orientation lighting
No
Over voltage protection
No
Fault current protection
No
With miniature fuse
No
Mounting method
Flush mounted (plaster)
Type of fastening
Mounting with screw
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
With on/off switch
Yes
With loop through function
No
Rotated central insert
No
Nominal current
15 A
Nominal voltage
250 v
Frequency
50,00 - 60,00 HZ
Suitable for degree of protect
IP20
For heavy conditions (in accor
No
Impact strength
Other

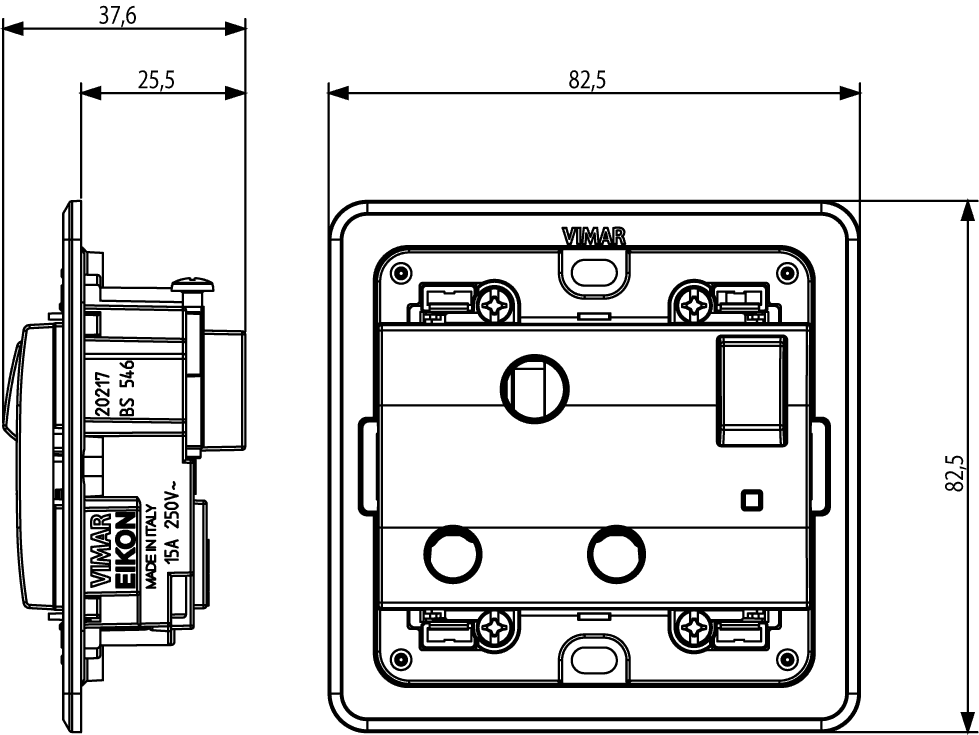

Width of device
82,50 mm
Height of device
82,50 mm
Depth of device
37,60 mm
Minimum order quantity: 10 NR

Barcode

8007352399938
1 NR
8.5x3.9x8.6 [cm]
104.4 [g]
8007352399945
10 NR
20.7x18.5x9.6 [cm]
1,141.4 [g]
