LED-emergency lamp 1M 230V white - 20382.B

Pdf
20382.B

Eikon white / Devices / Emergency lighting fittings

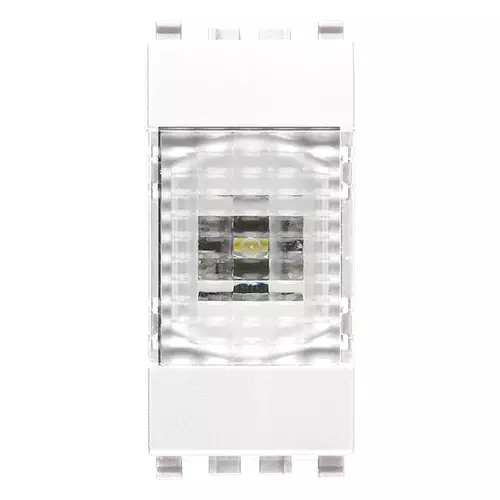

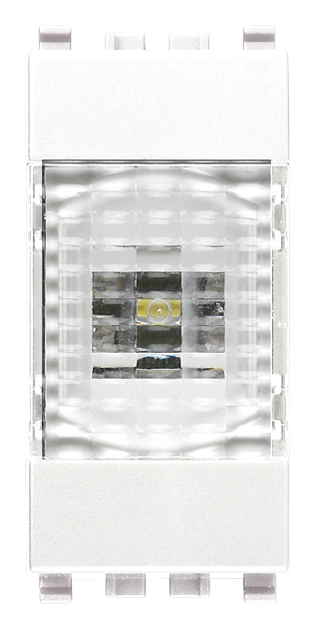

LED-emergency lamp 1M 230V white
Lamp with high-efficiency LED, supply voltage 230 V~ 50-60 Hz, automatic emergency device, replaceable rechargeable Ni-MH battery, 2 hours of operating time, white

Product Status
3 - Active

Class group
Luminaires
Class
Emergency luminaire
Mounting method
Built-in
Monitoring equipment
None
Wiring system
Continuous circuit/emergency circuit
With remote switch connection
No
Power supply system
Peripheral (individual battery)
Battery quality
NiMH
Lamp type
LED not exchangeable
With light source
Yes
Material housing
Plastic
Colour housing
White
Material cover
Without cover
Voltage type
AC
Nominal voltage
230,00 - 230,01 v
Degree of protection (IP)
IP40
Protection class
II
Max. system power
1,00 W
Rated luminous flux according to IEC 62722-2-1
3
Width
22,30 mm
Height/depth
47,20 mm
Built-in height/depth
37,00 mm

00. CE Marking - EU

10. EAC Eurasian Customs Union

37. Marking - Morocco

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352314931
1 NR
5.1x2.8x5.3 [cm]
48.33 [g]
Barcode Qty 10 NR
8007352314948
10 NR
14.4x11.6x6 [cm]
525.6 [g]
Barcode Qty 120 NR
8007352657045
120 NR
36.5x33x13.5 [cm]
6,720 [g]
