1P+N C16 RCBO 120-230V 6mA Next - 20411.16.6.N

20411.16.6.N
Wiring devices / Traditional wiring devices / EIKON / Devices

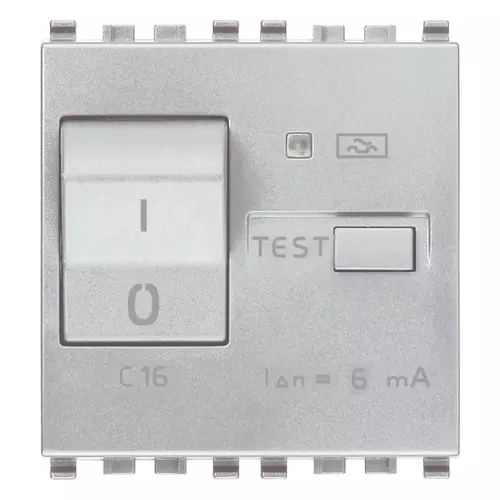

1P+N C16 RCBO 120-230V 6mA Next
1P+N C 16 residual current breaker with overcurrent protection, supply voltage 120-230 V~ 50-60 Hz, IΔn 6 mA, breaking capacity 3000 A, Next - 2 modules

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Multilanguage instructions sheet (688 kb)

---

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Circuit breakers and fuses

Class
Earth leakage circuit breaker

Number of poles (total)
2

Number of protected poles
1

Rated voltage
230 V

Rated current
16 A

Rated fault current
16 A

Leakage current type
A

Current limiting class
1

Rated short-circuit breaking capacity Icn according to EN 61009-1
3.000,00 kA

Surge current capacity
3,00 kA

Voltage type
AC

Frequency
50/60 Hz

Release characteristic
C

Concurrently switching neutral conductor
Yes

Over voltage category
3

Built-in depth
38,00 mm

Flush-mounted installation
Yes

Anti-nuisance tripping version
No

Degree of protection (IP)
IP40

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 5 NR

---

Barcode

8007352286504

1 NR

6x5.4x5.3 [cm]

94.73 [g]

8007352286511

5 NR

17.2x13.1x6 [cm]

532.27 [g]

8007352664159

70 NR

37.5x30x21 [cm]

7,860 [g]
