Badge switch 230V white - 20466.B

20466.B
Wiring devices / Traditional wiring devices / EIKON / Devices

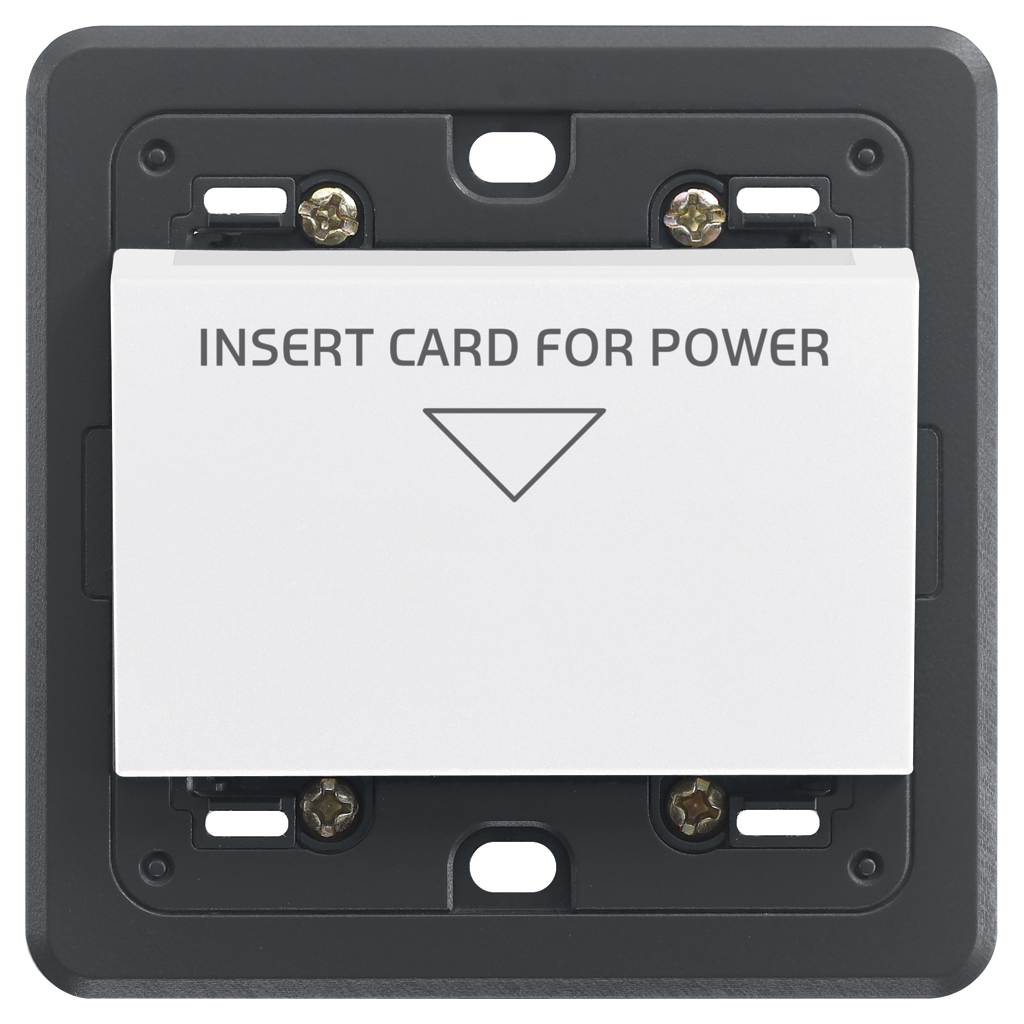

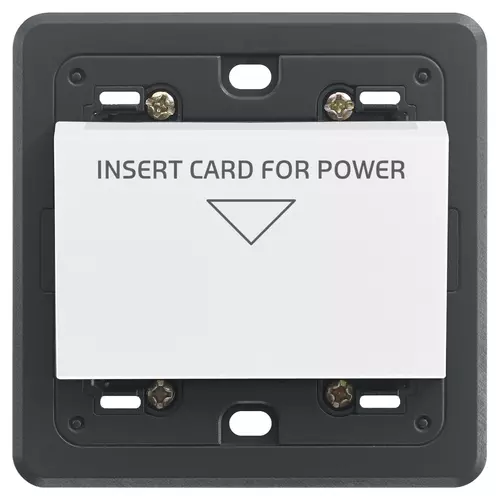

Badge switch 230V white
Badge electronic switch with vertical pocket, 16 A 230 V~ relay output, supply voltage 230 V~ 50-60 Hz, with built-in 3-module mounting frame for British standard installation, white. Supplied without ISO card (badge)

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Multilanguage instructions sheet (805 kb)

---

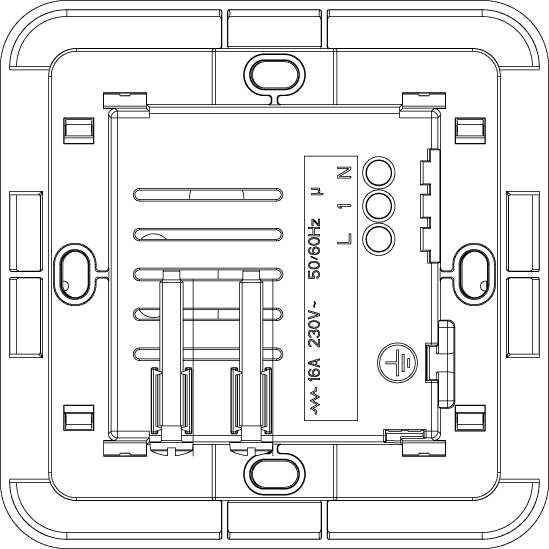

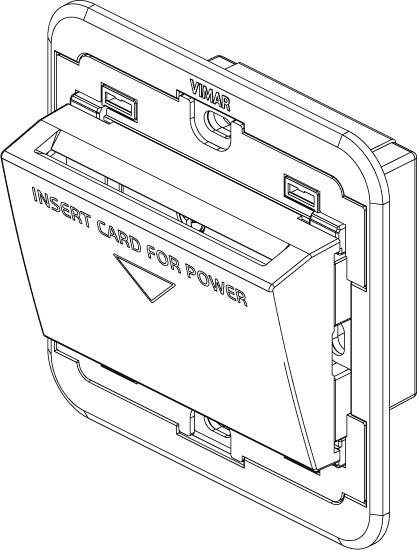

Drawings

PNG DXF

PNG DXF

Class group
Alarm installations, emergency call and signalling

Class
Access control system

Standalone
Yes

Networkable
No

PC-binding
No

Type of interface
None

Type of reading technique
Data medium

Signalling
None

Mounting method
Flush-mounted

Operating voltage AC 50 Hz
230,00 - 230,01 V

Operating voltage AC 60 Hz
230,00 - 230,01 V

Operating temperature
5 - 45 °C

Degree of protection (IP)
IP20

Colour
White

Material
Plastic

Width
82,50 mm

Height
82,50 mm

Depth
48,70 mm

00. CE Marking - EU

31. TISI - Thailand

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 1 NR

---

Barcode

8007352403321

1 NR

11.7x10.8x7.1 [cm]

154.4 [g]
