Badge switch 230V Next - 20466.N

Pdf
Vimar - 20466.N - Badge switch 230V Next
Vimar - 20466.N - Badge switch 230V Next

20466.N
Wiring devices / Traditional wiring devices / EIKON / Devices

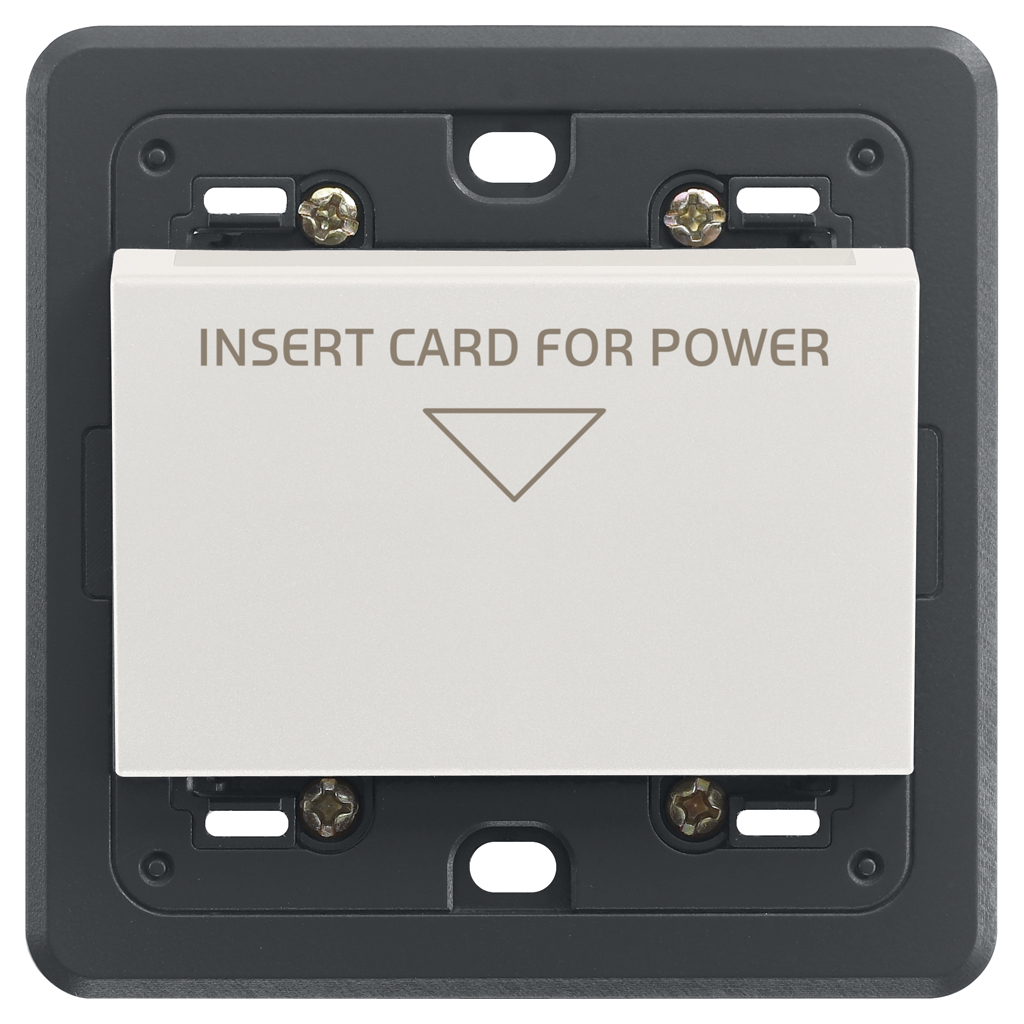

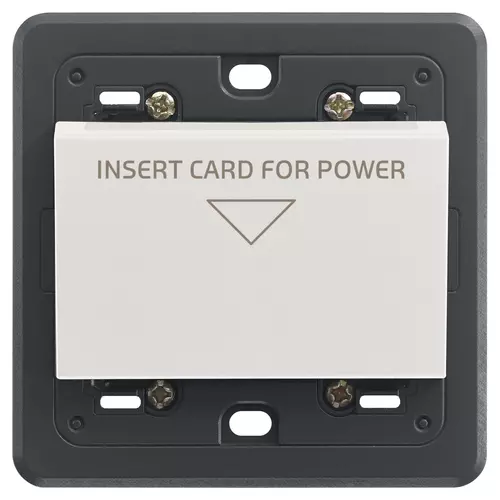

Badge switch 230V Next
Badge electronic switch with vertical pocket, 16 A 230 V~ relay output, supply voltage 230 V~ 50-60 Hz, with built-in 3-module mounting frame for British standard installation, Next. Supplied without ISO card (badge)

Product Status
3 - Active

Sheets, Manuals, Documentation

Drawings

rear view art. 20466.N
PNG DXF
3D view art. 20466.N
PNG DXF
Class group
Alarm installations, emergency call and signalling
Class
Access control system
Standalone
Yes
Networkable
No
PC-binding
No
Type of interface
None
Reading strategy
Data medium
Signalling
None
Mounting method
Flush-mounted
Operating voltage AC 50 Hz
230,00 - 230,01 V
Operating voltage AC 60 Hz
230,00 - 230,01 V
Operating temperature
5 - 45 °C
Degree of protection (IP)
IP20
Colour
Silver
Material
Plastic
Width
82,50 mm
Height
82,50 mm
Depth
48,70 mm

00. CE Marking - EU

10. EAC Eurasian Customs Union

31. TISI - Thailand

37. Marking - Morocco

43. UKCA mark - Great Britain

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352403338
1 NR
11.7x10.8x7.1 [cm]
154.4 [g]
