NFC/RFID switch for Mifare Next - 20469.N

Pdf

20469.N
Wiring devices / Traditional wiring devices / EIKON / Devices

NFC/RFID switch for Mifare Next

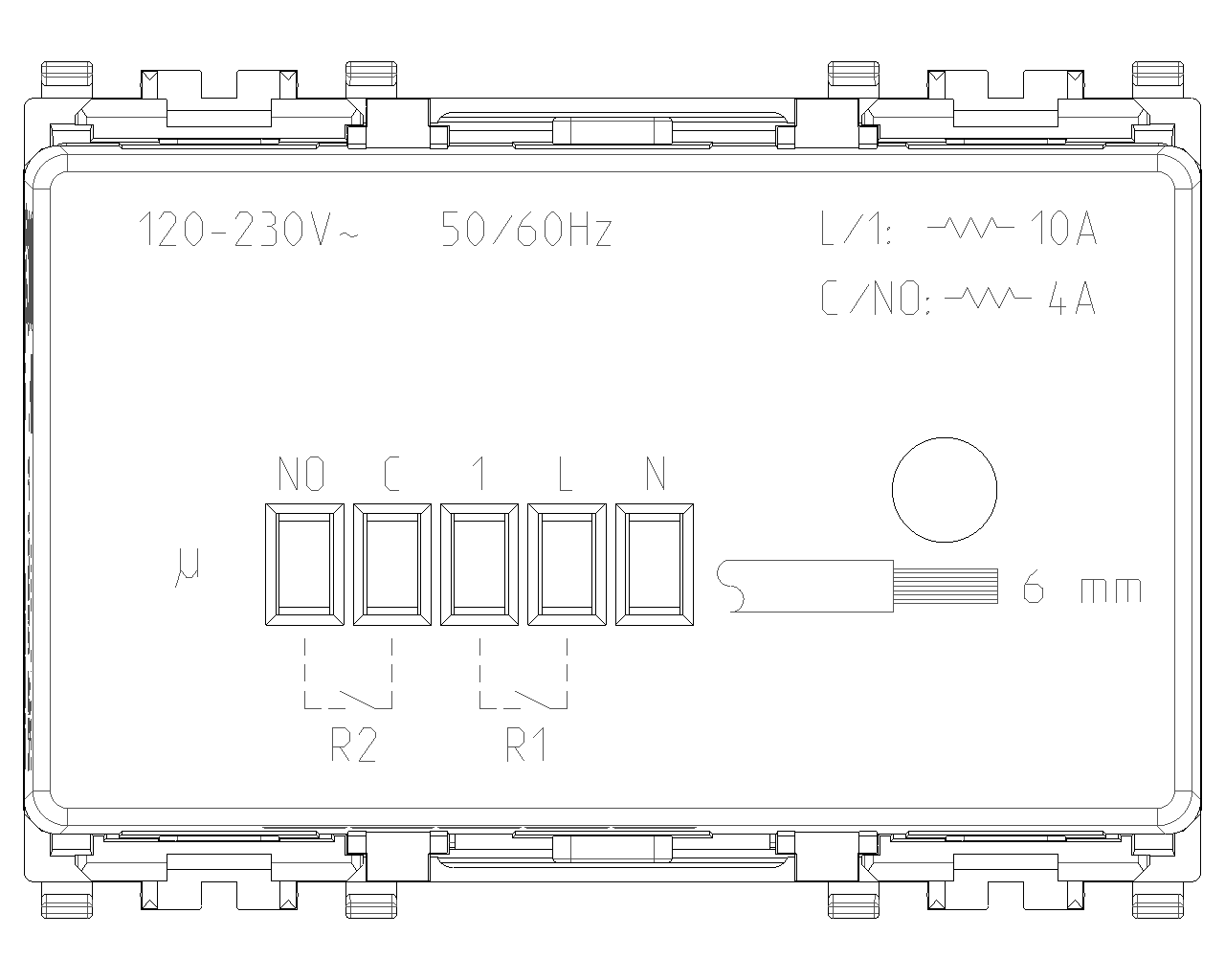

NFC/RFID electronic transponder card reader for installation inside the room, compatible with Mifare Electronic Solutions for Hotels, vertical pocket, 1 relay output 10 A 230 V~ NO (NON SELV), 1 relay output 4 A 230 V~ NO (NON SELV), power supply 120-230 V~ 50/60 Hz, visible in darkness pocket lighting, Next - 3 modules. Supplied without Mifare card (badge)

Product Status
3 - Active

Sheets, Manuals, Documentation

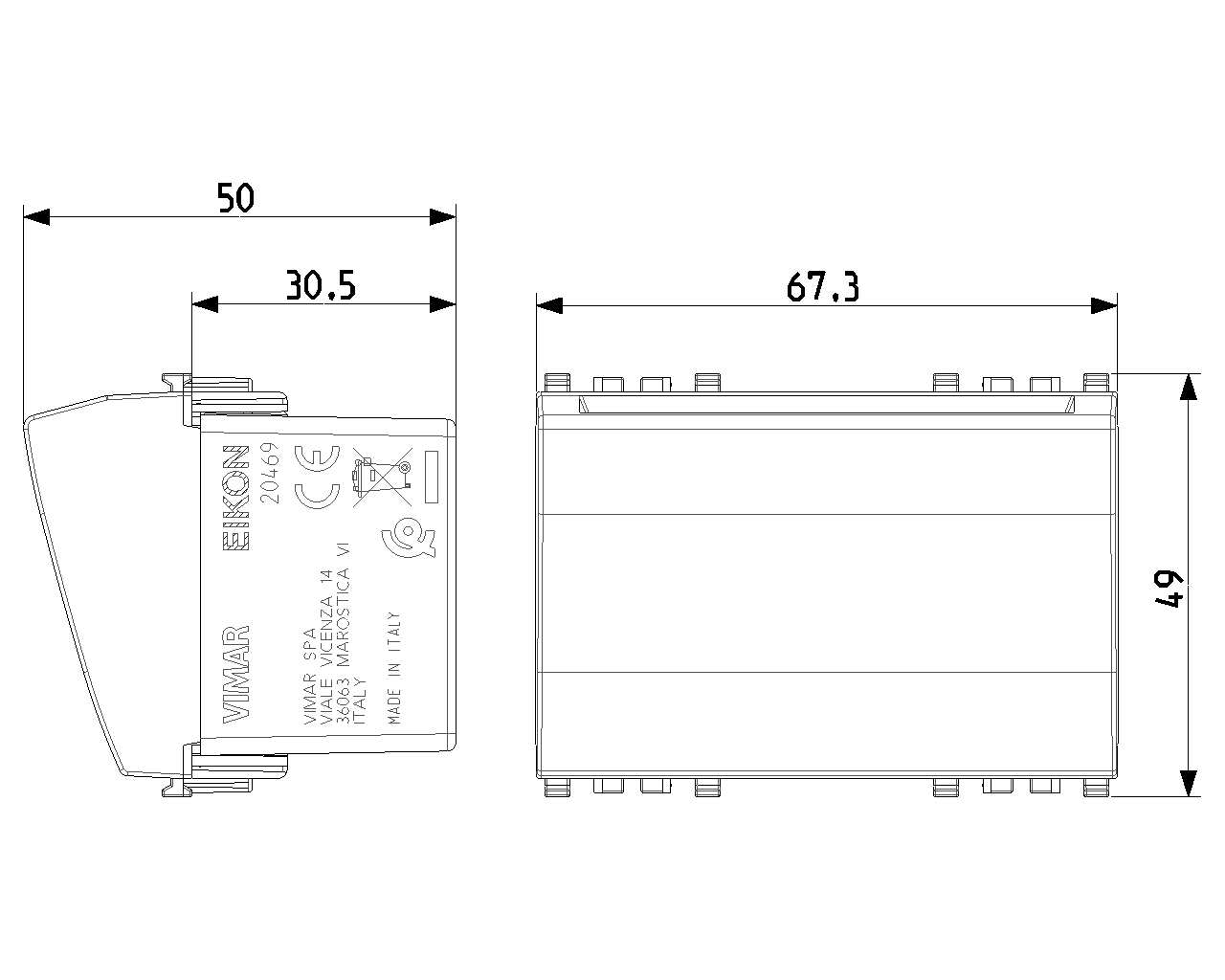

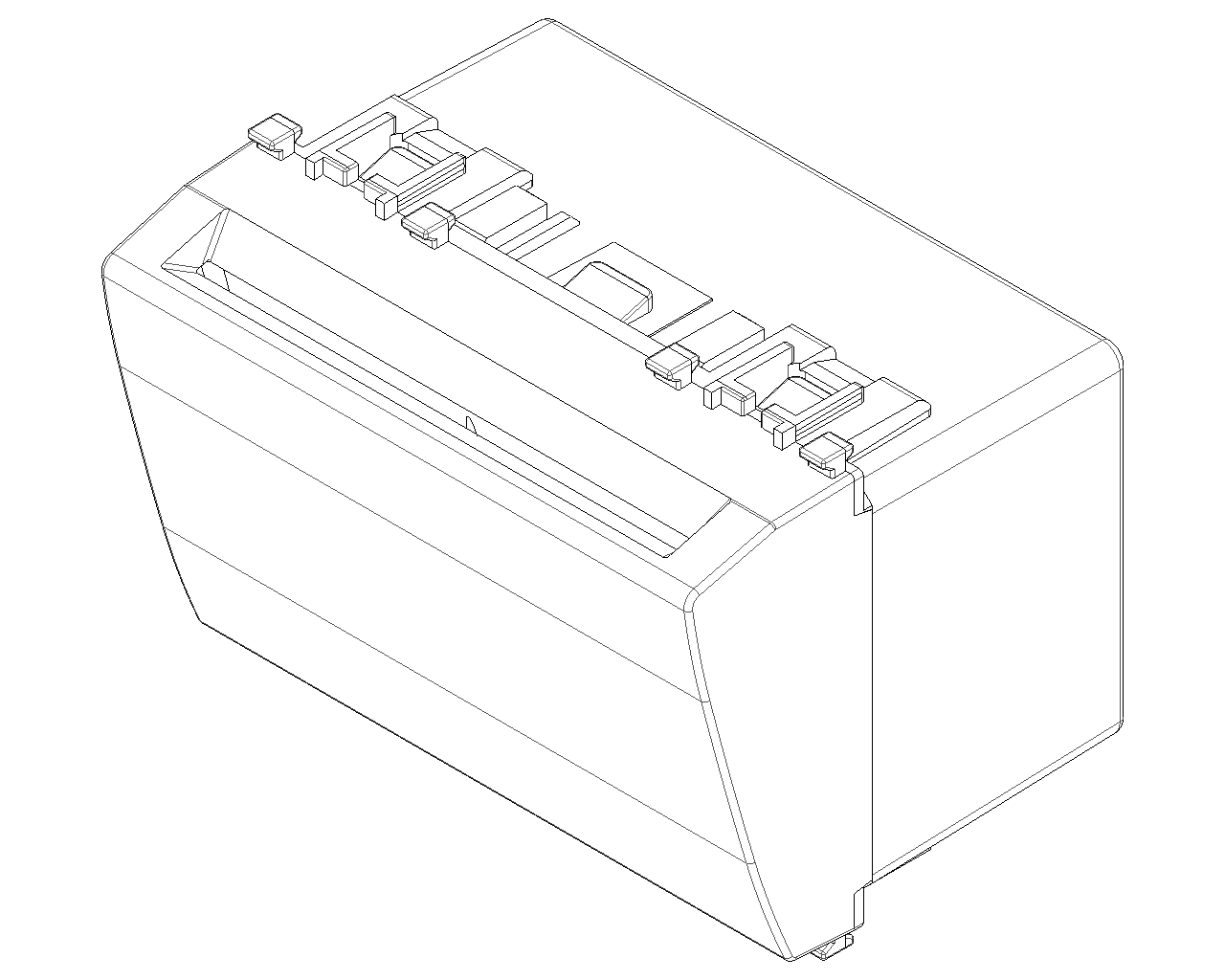

Drawings

Class group
Alarm installations, emergency call and signalling
Class
Access control system
Standalone
Yes
Networkable
No
PC-binding
No
Type of interface
None
Reading strategy
Data medium
Signalling
Buzzer
Mounting method
Flush-mounted
Operating voltage AC 50 Hz
120,00 - 230,00 V
Operating voltage AC 60 Hz
120,00 - 230,00 V
Operating temperature
0 - 40 °C
Degree of protection (IP)
IP20
Colour
Silver
Material
Plastic
Width
67,30 mm
Height
49,00 mm
Depth
50,00 mm

00. CE Marking - EU

37. Marking - Morocco

43. UKCA mark - Great Britain

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352623927
1 NR
5.2x5.7x7.6 [cm]
97.4 [g]
Barcode Qty 5 NR
8007352623934
5 NR
21.4x11.6x6 [cm]
543.2 [g]
