Classic plate 5MBS Glass white ice - 20649.C72

Pdf
Vimar - 20649.C72 - Classic plate 5MBS Glass white ice
Vimar - 20649.C72 - Classic plate 5MBS Glass white ice
20649.C72

Eikon / Cover plates / Crystal Classic cover plates

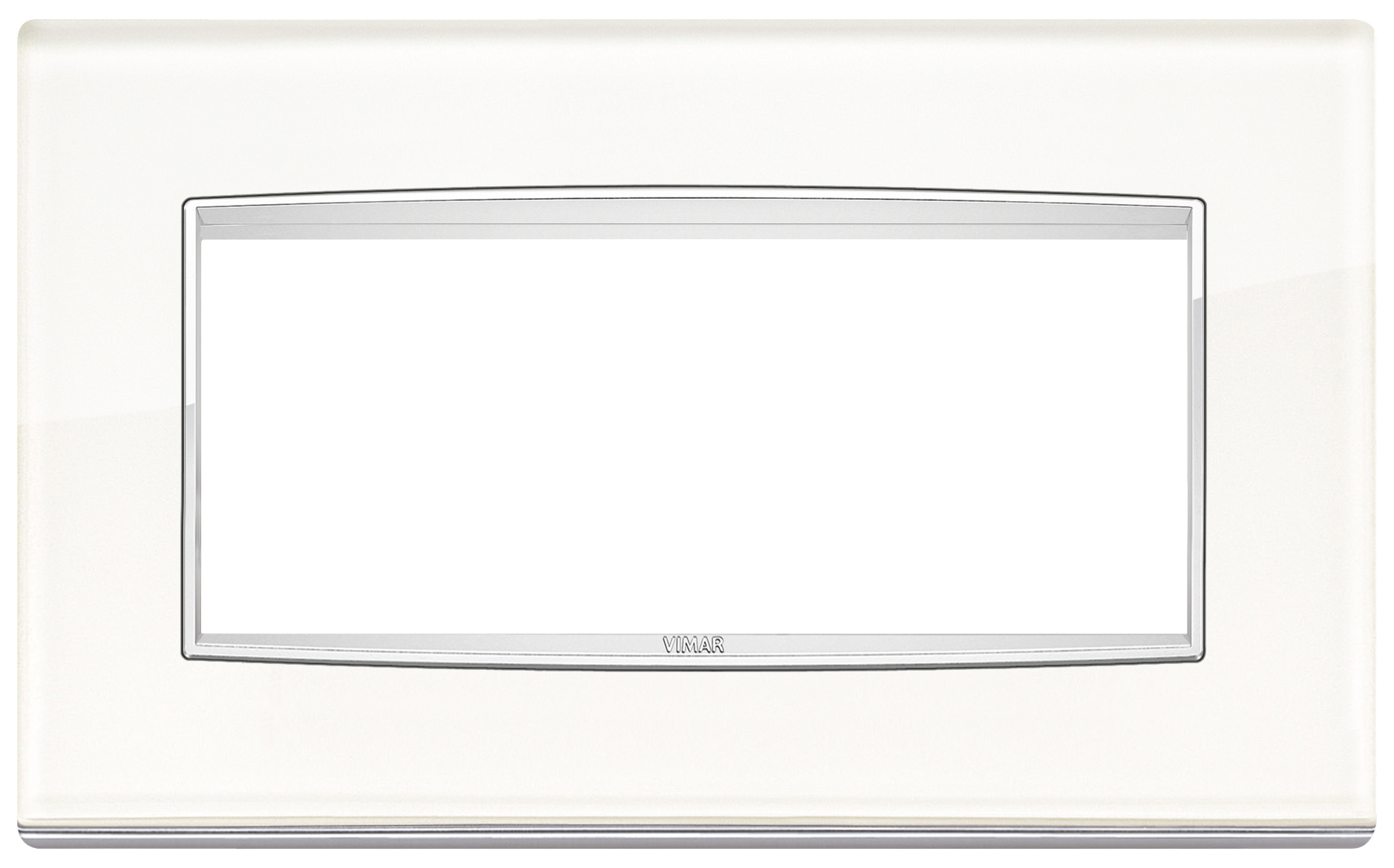

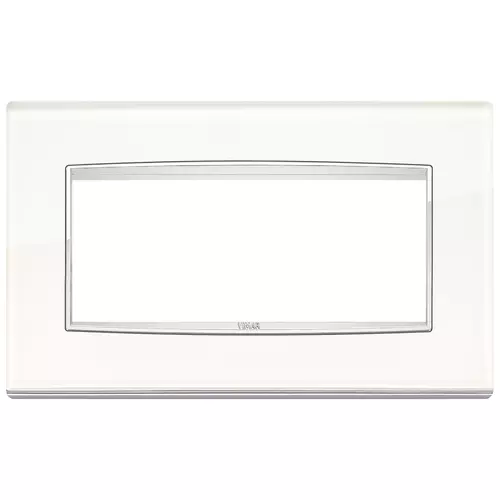

Classic plate 5MBS Glass white ice
5-module Classic cover plate for British standard, Glass crystal and chromed frame, white ice

Product Status
2 - Will be discontinued

You may also be interested in

20609
20609 - Frame 5M BS

Drawings

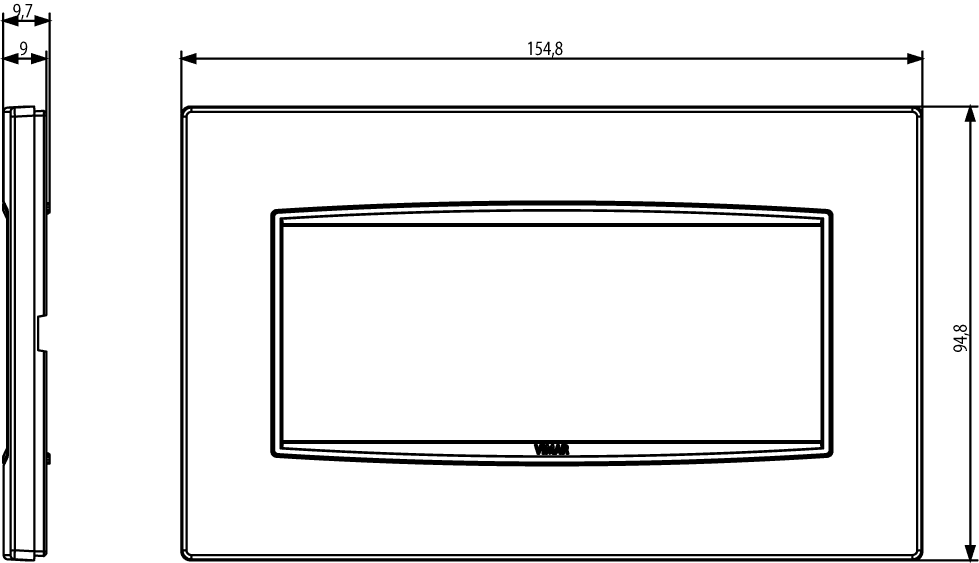

view encumbered art. 20649.C72
PNG DXF

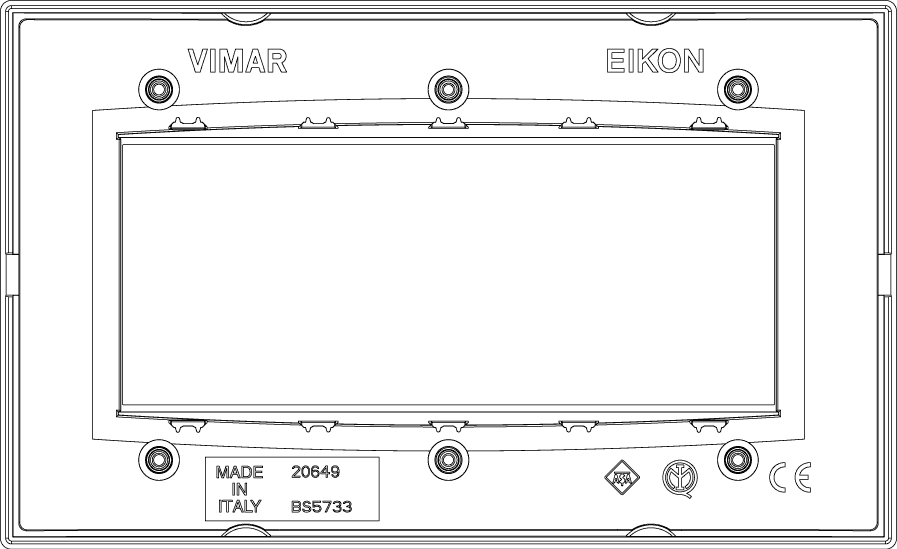

rear view art. 20649.C72
PNG DXF
3D view art. 20649.C72
PNG DXF
Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
5
Mounting direction
Horizontal and vertical
Number of units horizontal
5
Number of units vertical
1
Number of modules horizontal (module system)
5
Number of modules vertical (module system)
1
Number of switch inserts
0
With mounting grid
Yes
Suitable for floor box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Glass
Material quality
Glass
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9016
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
154,80 mm
Height
94,80 mm
Depth
9,70 mm
Built-in width
154,80 mm
Built-in height
94,80 mm
Diameter bore hole (opening)
0 mm

08. ASTA - UK

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352478640
1 NR
18.5x11.4x3.3 [cm]
158.6 [g]
