Plate 3M f/transponder NR aqua - 21666.71.01

Pdf
21666.71.01

Eikon TACTIL / Cover plates / Crystal cover plates

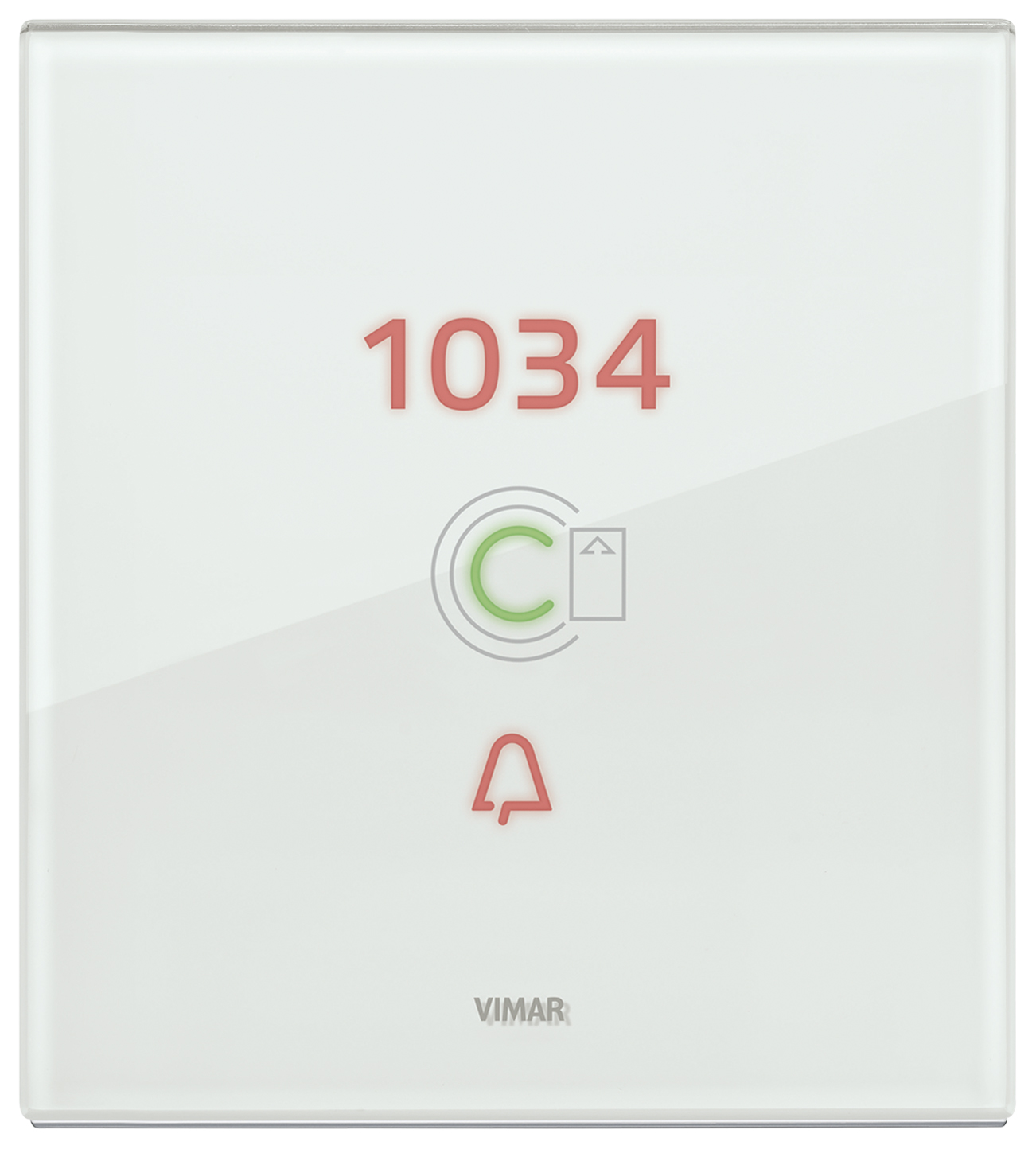

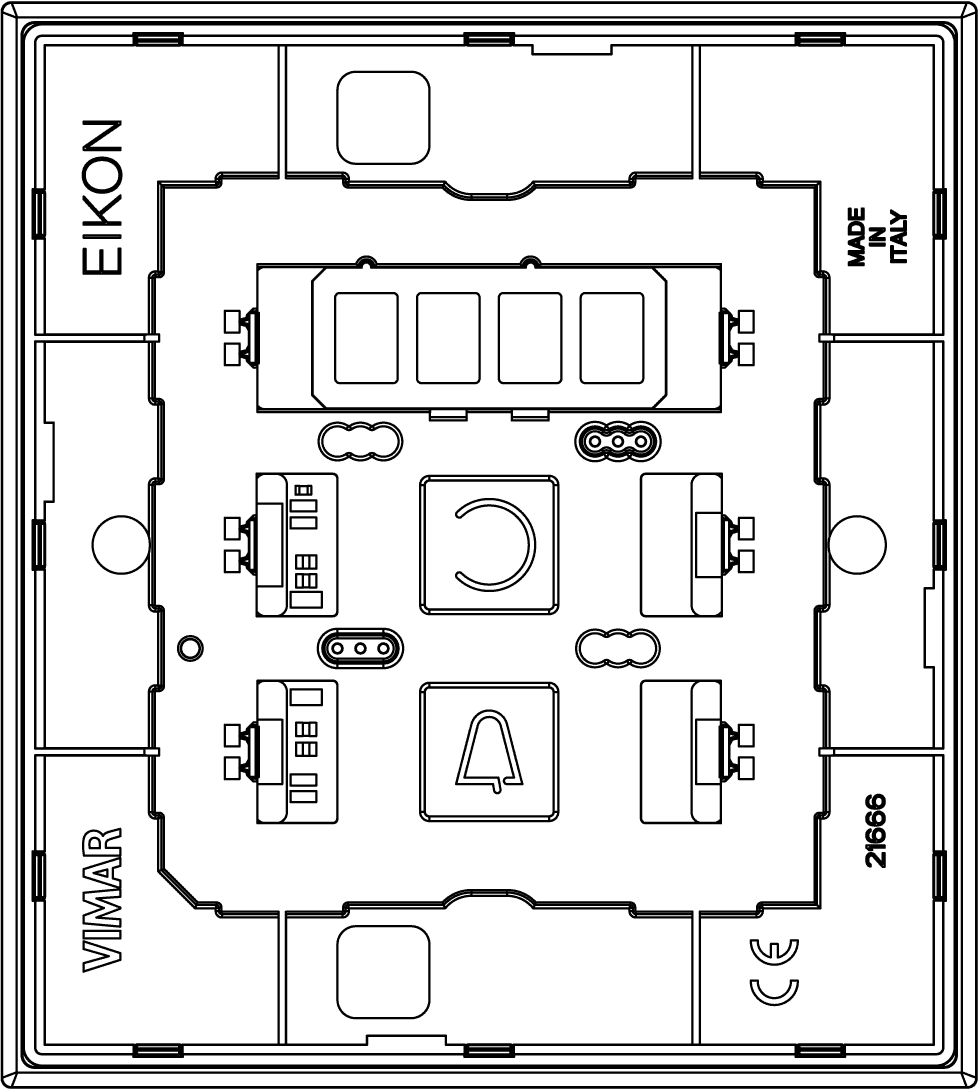

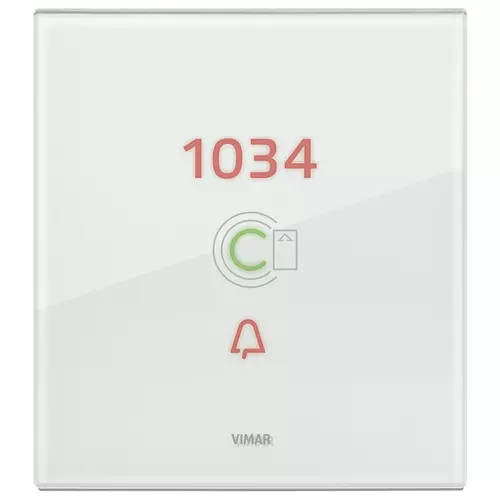

Plate 3M f/transponder NR aqua
3-module vertical electronic cover plate for vertical external transponder reader, to be completed with room number labels 21846, plate glass, aqua

Product Status
3 - Active

You may also be interested in

Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
3
Mounting direction
Horizontal and vertical
Number of units horizontal
3
Number of units vertical
1
Number of modules horizontal (module system)
3
Number of modules vertical (module system)
1
Number of gangs
0
With mounting grid
Yes
Suitable for flush-mounted installation
Yes
Suitable for floor box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material quality
Real glass
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
Cream white (electro white)
RAL-number (akin)
9018
Transparent
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
106,00 mm
Height
118,00 mm
Depth
17,90 mm
Built-in width
106,00 mm
Built-in height
118,00 mm
Diameter bore hole (opening)
0 mm
Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352607859
1 NR
18x14.1x3.9 [cm]
220.8 [g]
