Plate 4M wood American walnut - 22654.32

Pdf
Vimar - 22654.32 - Plate 4M wood American walnut
Vimar - 22654.32 - Plate 4M wood American walnut
22654.32

Eikon EXÉ / Cover plates / Wooden cover plates

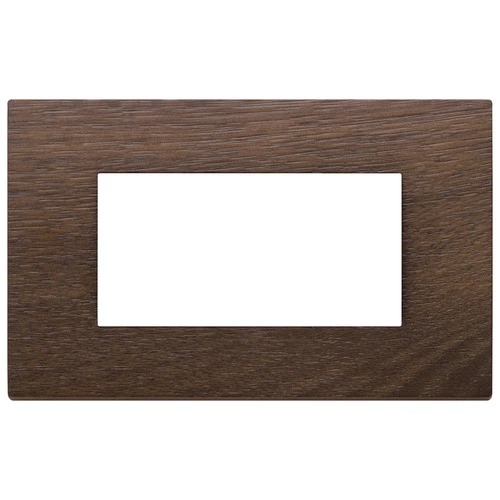

Plate 4M wood American walnut
4-module cover plate, solid wood, American walnut

Product Status
3 - Active

You may also be interested in

21614
21614 - Frame 4M +screws

Drawings

view encumbered art. 22654.32
PNG DXF
rear view art. 22654.32
PNG DXF
3D view art. 22654.32
PNG DXF
Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
4
Mounting direction
Horizontal and vertical
Number of units horizontal
4
Number of units vertical
1
Number of modules horizontal (module system)
4
Number of modules vertical (module system)
1
Number of switch inserts
0
With mounting grid
Yes
Suitable for floor box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Wood
Material quality
Other
Surface protection
Other
Surface finishing
Matt
Colour
Wood
RAL-number (similar)
8025
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
144,50 mm
Height
90,00 mm
Depth
10,15 mm
Built-in width
144,50 mm
Built-in height
90,00 mm
Diameter bore hole (opening)
0 mm

01. IMQ - Italy

29. QCERT - Colombia

37. Marking - Morocco

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352610422
1 NR
15.35x11.6x1.85 [cm]
76.2 [g]
Barcode Qty 5 NR
8007352611658
5 NR
16.15x10.8x12.6 [cm]
443.8 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
