Plate 3Mx3 BS Flat anthracite grey - 22685.3.03

Pdf

22685.3.03
Wiring devices / Traditional wiring devices / EIKON / Cover plates

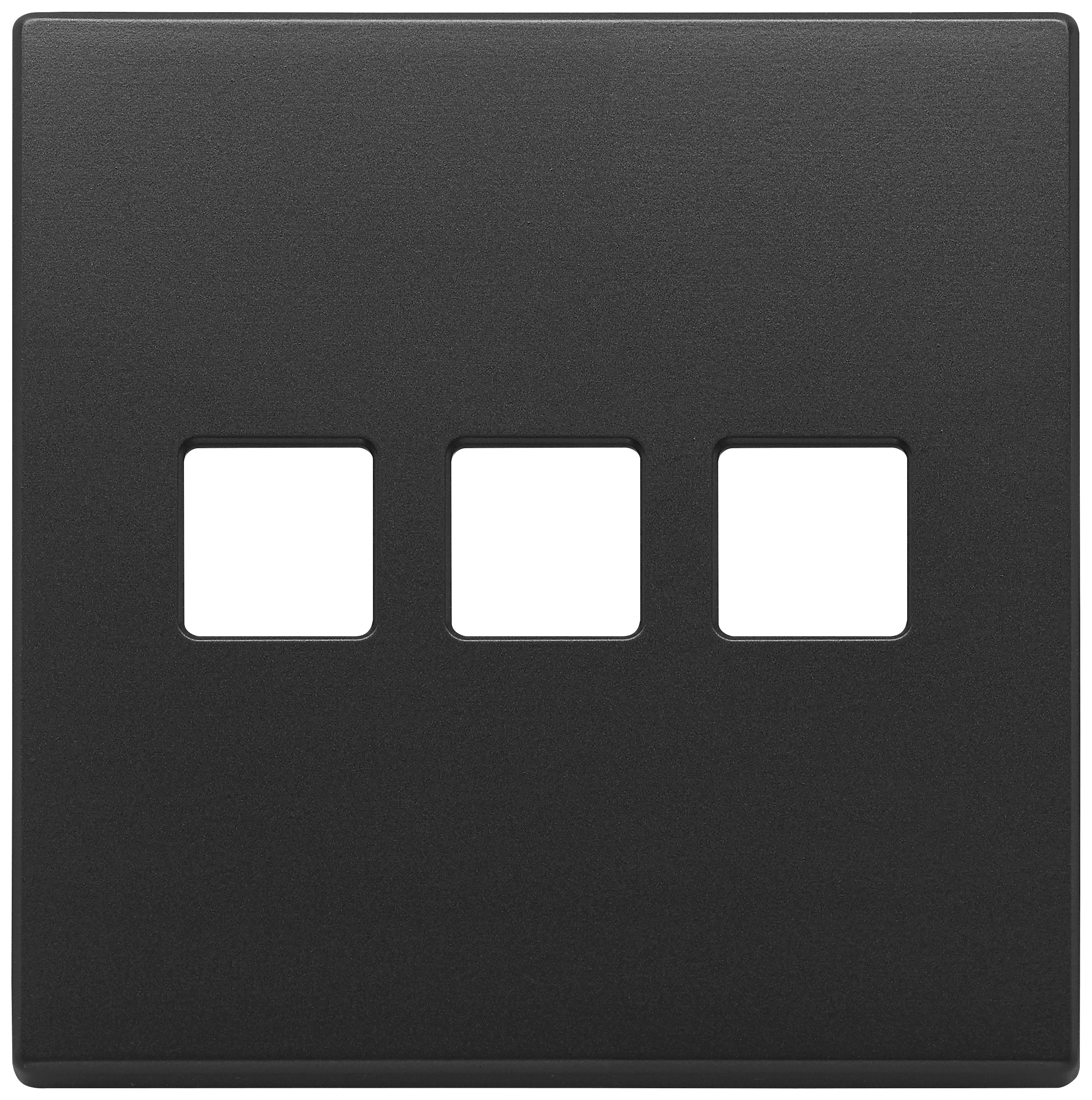

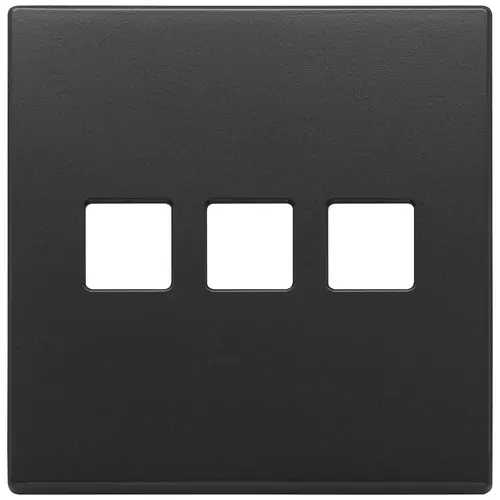

Plate 3Mx3 BS Flat anthracite grey
3-module cover plate for three Flat controls, metal, anthracite grey

Product Status
3 - Active

Drawings

Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
3
Mounting direction
Horizontal and vertical
Number of units horizontal
3
Number of units vertical
1
Number of modules horizontal (module system)
3
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Metal
Material quality
Other
Surface protection
Lacquered
Surface finishing
Matt
Colour
Anthracite
RAL-number (similar)
7043
Transparent
No
With hinged lid
No
Type of fastening
Clamp mounting
Width
122,00 mm
Height
90,00 mm
Depth
7,15 mm
Built-in width
122,00 mm
Built-in height
90,00 mm
Diameter bore hole (opening)
0 mm

00. CE Marking - EU

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352656895
1 NR
9.5x9.5x1.4 [cm]
198.1 [g]
Barcode Qty 5 NR
8007352656901
5 NR
10.3x8x10.4 [cm]
1,024 [g]
