Electromech.badge switch 2M black - 30403.G

Pdf
Vimar - 30403.G - Electromech.badge switch 2M black
Vimar - 30403.G - Electromech.badge switch 2M black

30403.G
Wiring devices / Traditional wiring devices / LINEA / Devices

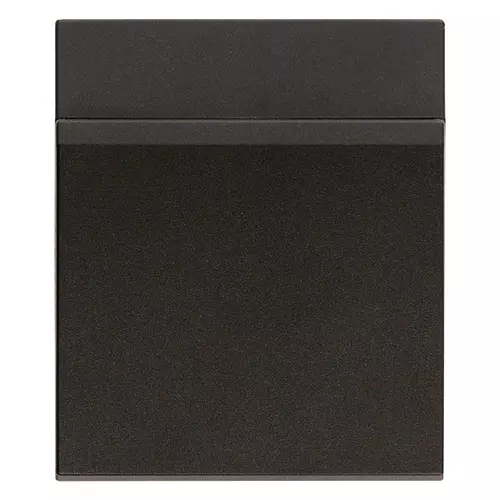

Electromech.badge switch 2M black
Upright electronic badge switch, 4 A 250 V~ NO change-over relay output (NON SELV), 120-230 V~ 50-60 Hz power supply, pocket lighting to be visible in darkness, trimmer for adjusting switch-off time after removing the card, black - 2 modules. Supplied without ISO card (badge)

Product Status
3 - Active

Class group
Alarm installations, emergency call and signalling
Class
Access control system
Standalone
Yes
Networkable
No
PC-binding
No
Type of interface
None
Reading strategy
Data medium
Signalling
None
Mounting method
Flush-mounted
Operating voltage AC 50 Hz
250,00 - 250,01 V
Operating voltage AC 60 Hz
250,00 - 250,01 V
Operating temperature
5 - 35 °C
Degree of protection (IP)
IP20
Colour
Black
Model
Reader
Material
Plastic
Power over Ethernet (PoE)
None
Width
44,80 mm
Height
52,80 mm
Depth
36,10 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
VdS class
None

00. CE Marking - EU

37. Marking - Morocco

43. UKCA mark - Great Britain

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352688667
1 NR
6x5.4x5.2 [cm]
55.45 [g]
Barcode Qty 10 NR
8007352688674
10 NR
60x40x32 [cm]
554.5 [g]
Barcode Qty 120 NR
8007352688681
120 NR
38.5x29x30 [cm]
6,654 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
