Radio control button 1M black 2pc - 31506.G

Pdf
Vimar - 31506.G - Radio control button 1M black 2pc
Vimar - 31506.G - Radio control button 1M black 2pc

31506.G
Smart systems&products / Smart switch&sound / LINEA / Buttons

Radio control button 1M black 2pc
1-module interchangeable button for EnOcean, Bluetooth, ZigBee radio control, black - 2 pieces

Product Status
3 - Active

You may also be interested in

30506
30506 - Zigbee Friends of Hue control
30504
30504 - Bluetooth Low Energy control
30502
30502 - EnOcean radio control
30507.G
30507.G - Radio control frame 2M black
30507.B
30507.B - Radio control frame 2M white

Drawings

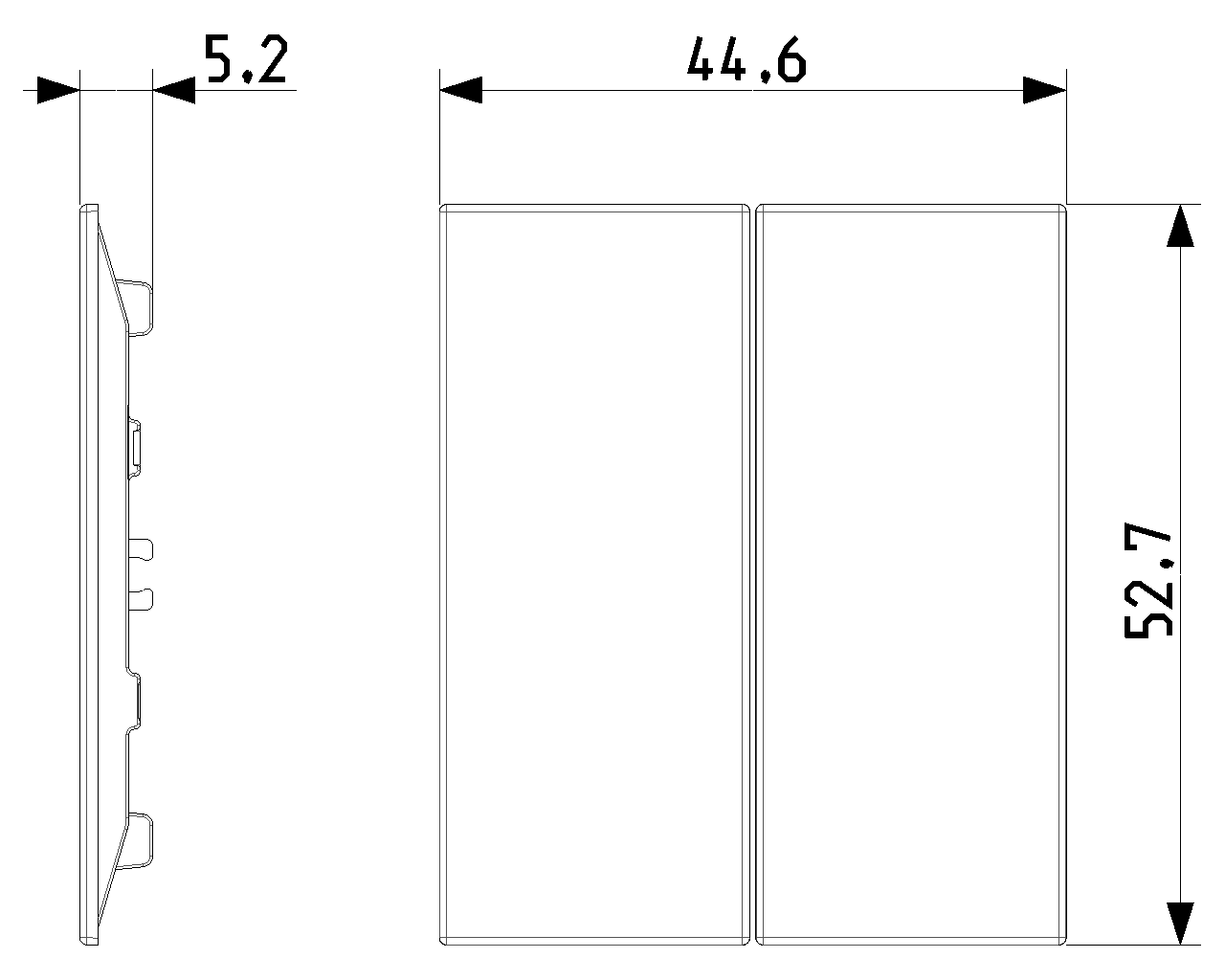

view encumbered art. 31506.G
PNG DXF

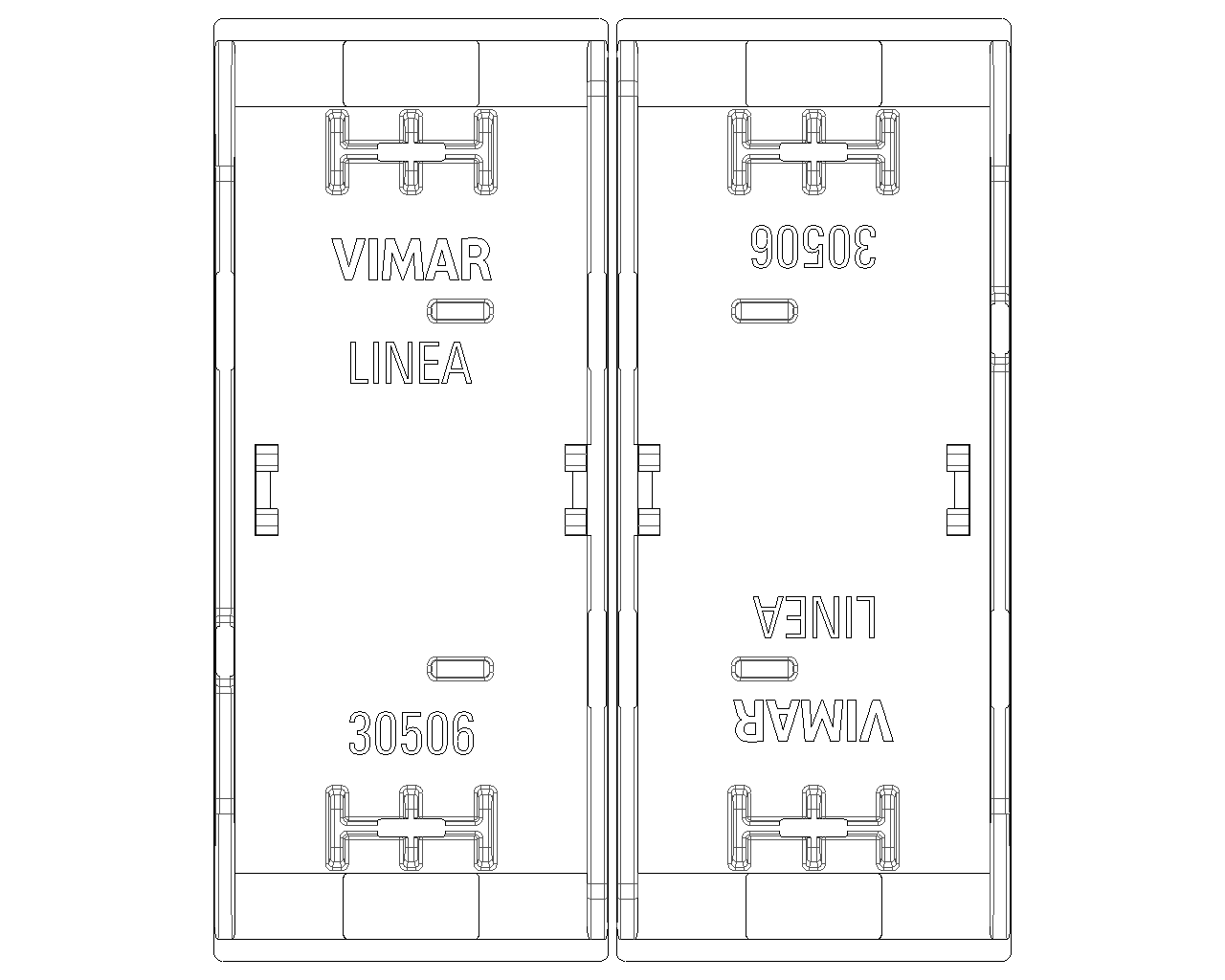

rear view art. 31506.G
PNG DXF

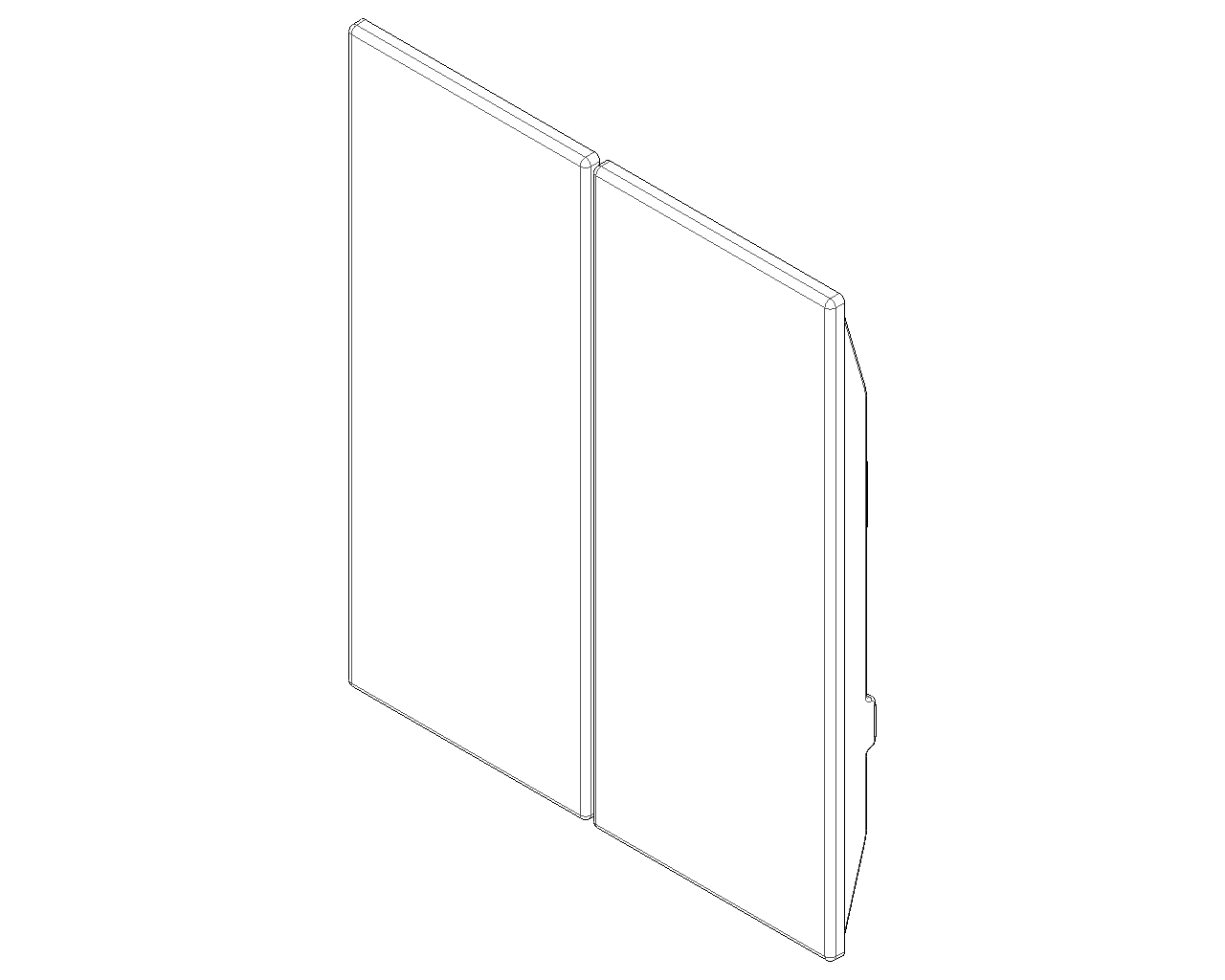

3D view art. 31506.G
PNG DXF
Class group
Domestic switching devices
Class
Control element/cover plate for domestic switching devices
Model
Other
Imprint/indication
None
Scannable symbol/barrier free
No
Utilization
Switch/dimmer
Suitable for touch sensor connector for bus system
No
Type of fastening
Engage (snap)
Monitoring window/light outlet
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Anti-bacterial treatment
No
Colour
Black
RAL-number (similar)
7021
With label area
No
With exchangeable lens/symbol
No
Suitable for degree of protection (IP)
IP40
Width
2.230,00 mm
Height
5.280,00 mm
Depth
520,00 mm

00. CE Marking - EU

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352693395
1 NR
10x5x1.5 [cm]
7 [g]
Barcode Qty 10 NR
8007352693401
10 NR
21.4x11x6 [cm]
136 [g]
