A/V wide-angle entrance plate 4B accessCode 40170
- 40170
- ELVOX Door entry system / 2F/2F+ video door entry system / Outdoor stations / Roxie series
- A/V wide-angle entrance plate 4B access

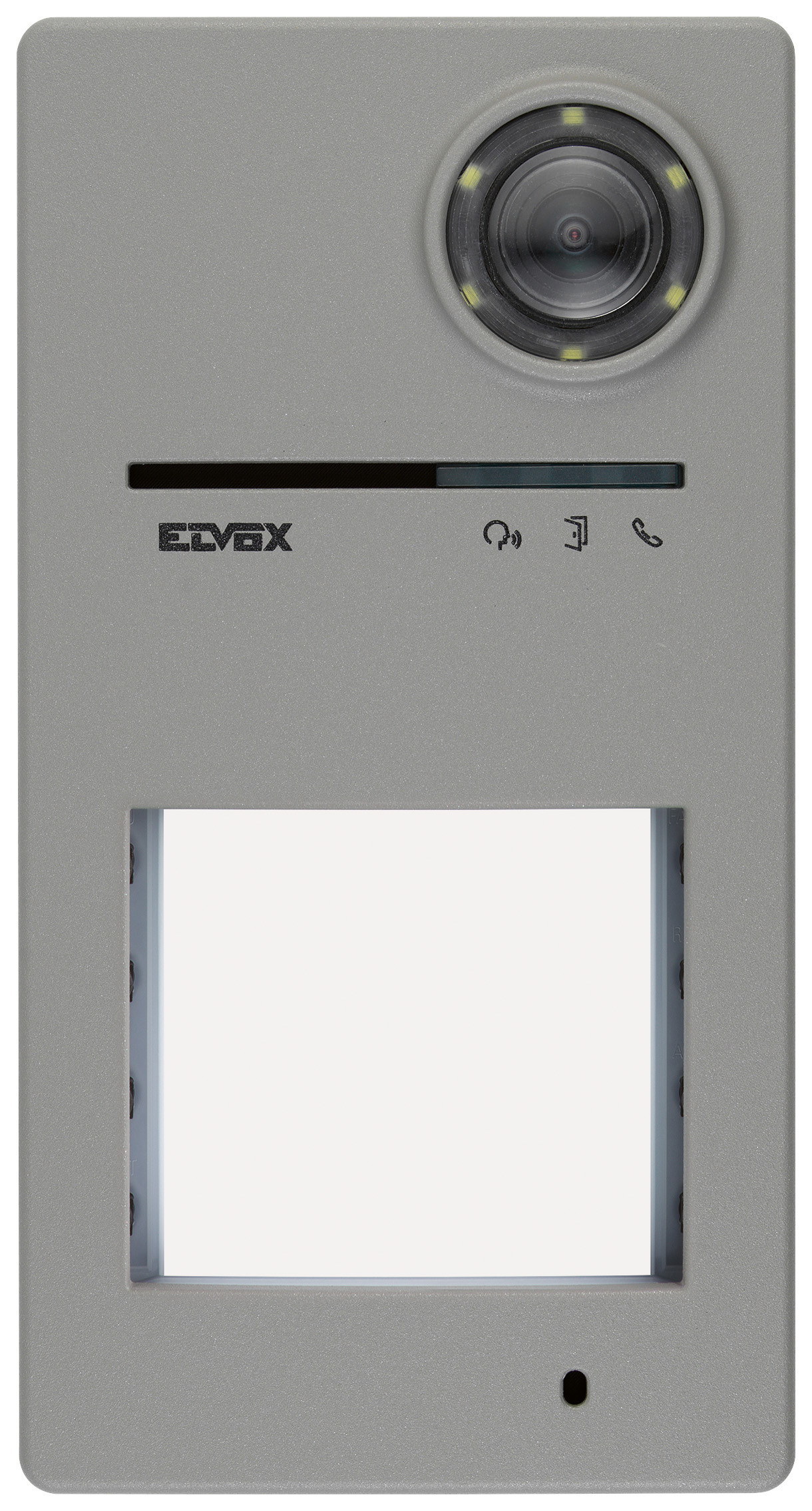

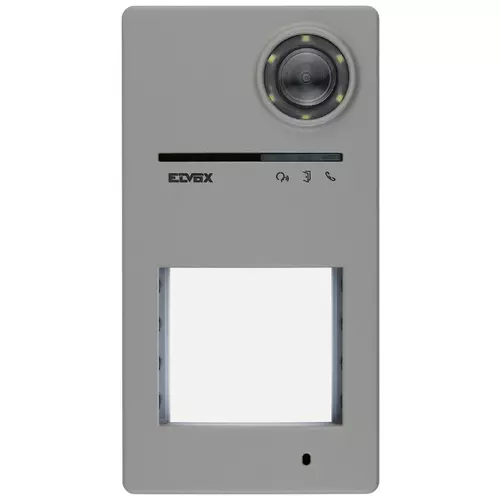

- Roxie Due Fili Plus audio-video entrance panel programmable via the View Wireless App with Bluetooth standard technology, RFID access control, 130° wide-angle colour camera, set up for 4 call buttons with white LED backlighting and dusk/dawn lighting control, lock release and call status indicator LED, 1 input for outdoor camera, 1 input configurable as external CA lock release push button or PA door open, 1 direct opening output for electrical lock, 1 SELV relay output configurable as NC or NO 48V 1A, surface or semi-flush mounting (with dedicated accessory), to be completed with 1, 2 or 4 push button kit
- Product Status
- 3 - Active
You may also be interested in
Sheets, Manuals, Documentation
- Quick Guide (4779 kb)
- Manuale Portale View Vimar (3241 kb)
- Manuel Portail View Vimar (1975 kb)
- Manual Portal Vimar View (1943 kb)
- Vimar View Portal manual (2047 kb)
- Εγχειρίδιο χρήσης Πύλη View Vimar (2085 kb)
- Bedienungsanleitung Portal View Vimar (2057 kb)
- Manual do instalador (4176 kb)
- Manuale installatore (4171 kb)
- Manuel installateur (4177 kb)
- Manual del instalador (4159 kb)
- Installer manual (4184 kb)
- Εγχειρίδιο τεχνικού εγκατάστασης (4175 kb)
- Installationsanleitung (4186 kb)
- دليل القائم بالتركيب (4060 kb)
- Manuale app View Wireless (19693 kb)
- Manuel appli View Wireless (43543 kb)
- Manual app View Wireless (43542 kb)
- Manual View Wireless app (42589 kb)
- Εγχειρίδιο τεχνικού εγκατάστασης (43825 kb)
- Installationsanleitung View Wireless (43598 kb)
- Label printer module for Roxie entr.pan. (1640 kb)

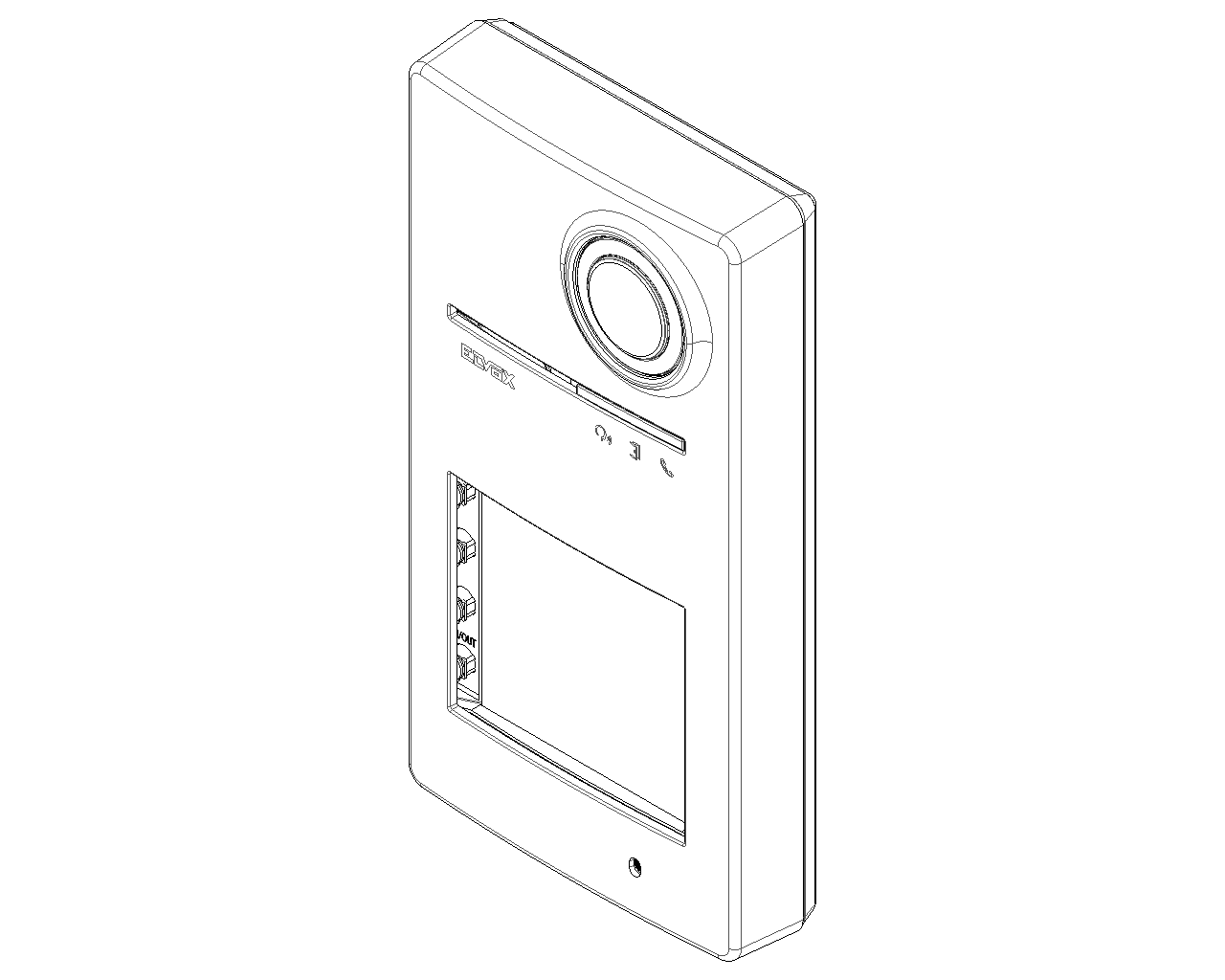

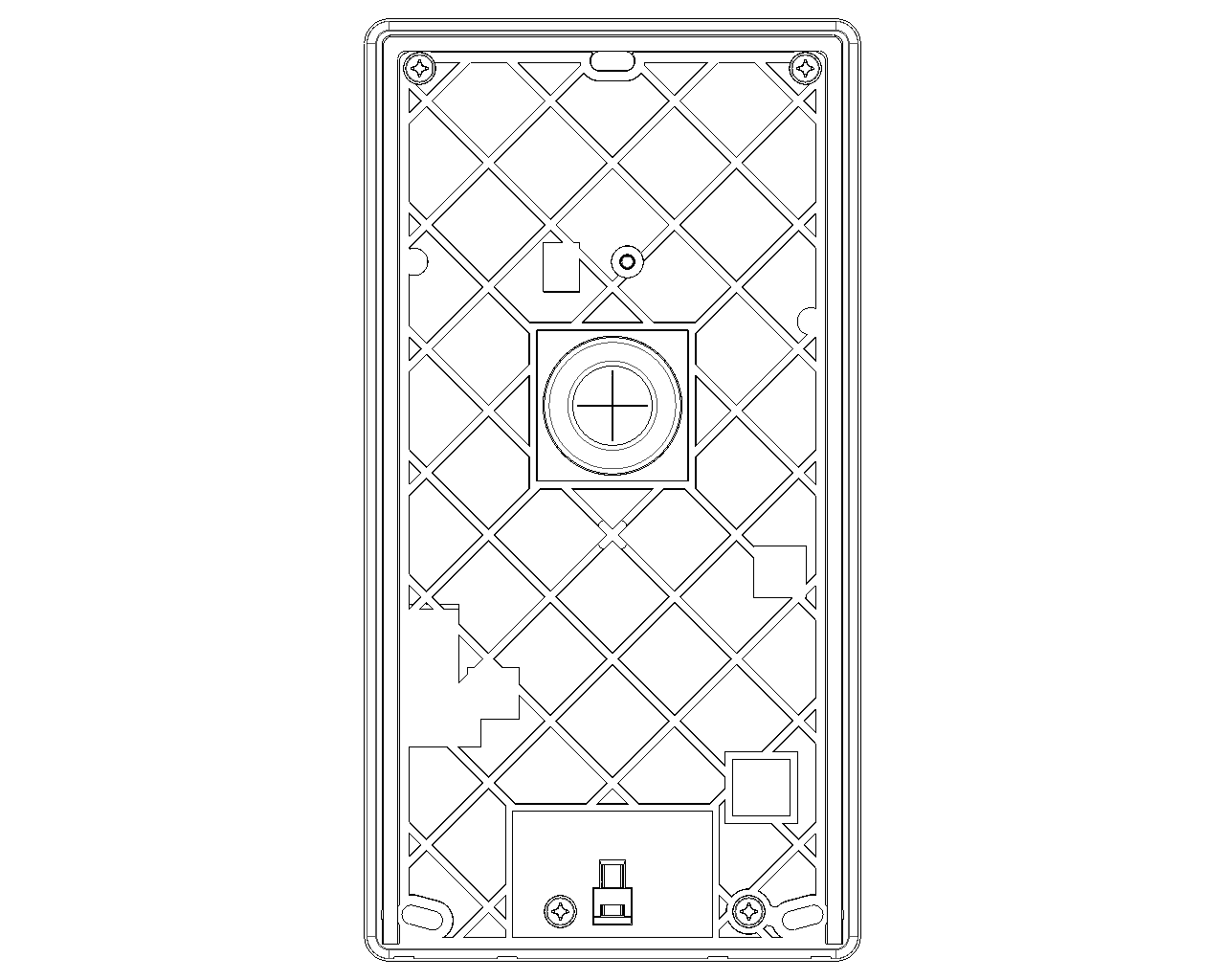

Drawings
Class group
Communication technique (components and systems)
Communication technique (components and systems)
Class
Door station door communication
Door station door communication
Installation technique
2-wire
2-wire
Mounting method
Surface mounted
Surface mounted
Operation mode
Push button
Push button
Number of call buttons
4
4
Group call function
No
No
Modular construction
Yes
Yes
With info sign
Yes
Yes
With cover
Yes
Yes
With digital door code
No
No
With audio induction loop
No
No
Hearing aid compatible
Yes
Yes
Suitable for disabled persons
No
No
Overhear protected
Yes
Yes
Vandal proof
No
No
With camera
Yes
Yes
Manual adjustable camera
No
No
Opening angle camera
130
130
With display
No
No
Colour display
No
No
With display backlight
No
No
Automatic brightness control
No
No
Material front
Zamac
Zamac

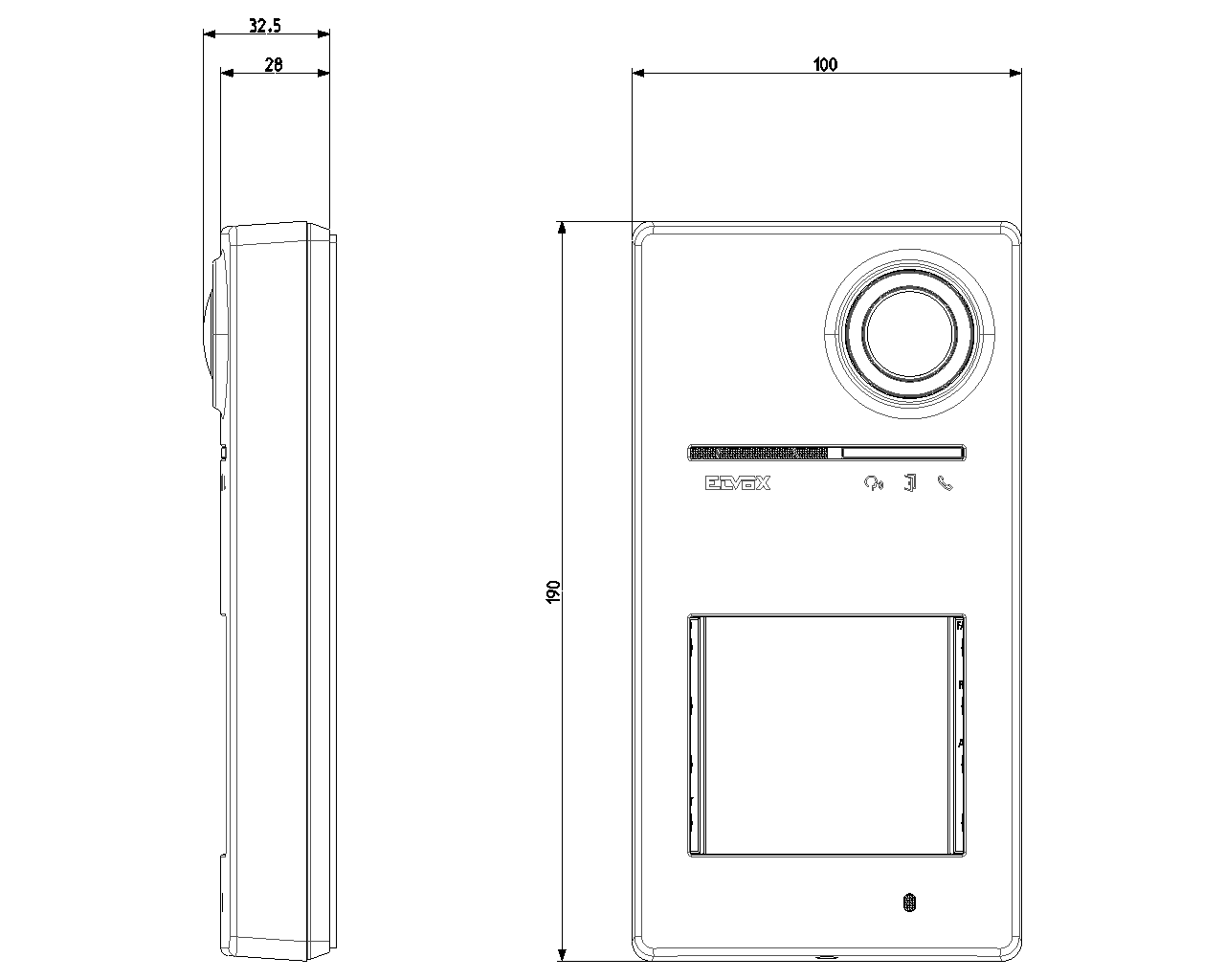

Front plate height
190,00 mm
190,00 mm
Front plate width
100,00 mm
100,00 mm
Colour
Grey
Grey
Integrated door opening circuit
Yes
Yes
Voltage type (supply voltage)
DC
DC
Supply voltage DC
28,00 - 28,01 V
28,00 - 28,01 V
Height
190,00 mm
190,00 mm
Width
100,00 mm
100,00 mm
Depth
32,50 mm
32,50 mm
Built-in height
0,00 mm
0,00 mm
Built-in width
100,00 mm
100,00 mm
Built-in depth
0,00 mm
0,00 mm
Degree of protection (IP)
IP54
IP54
Impact strength
IK08
IK08
Wi-Fi
No
No
Operation by app
Yes
Yes
Compatible with Apple HomeKit
No
No
Compatible with Google Assistant
No
No
Compatible with Amazon Alexa
No
No
IFTTT support available
No
No
With VIGIK reader
No
No
00. CE Marking - EU
00. CE Marking - EU
37. Marking - Morocco
Minimum order quantity: 1 NR
Barcode
8007352744967
1 NR
21.5x10.8x4.7 [cm]
722 [g]
