Name-plate entrance panel - 41015

41015

ELVOX Door entry / Universal components / Pixel

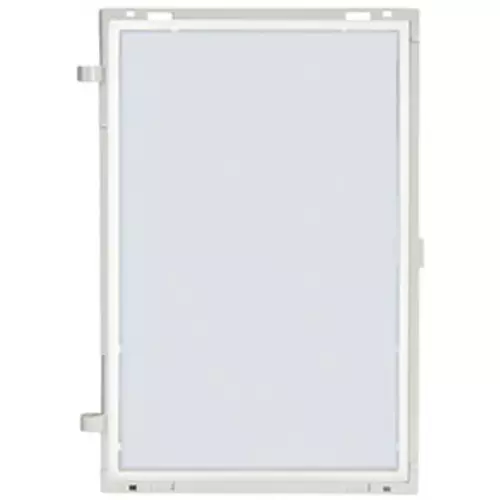

Name-plate entrance panel
Electronic unit with name panel backlit with white LEDs, photocell and manual LED brightness adjustment via audio or audio-video units, to be completed with name panel front cover module

Product Status
4 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data
• Ask a question

Sheets, Manuals, Documentation

• Multilanguage instructions sheet (363 kb)
• Label printer module for entrance panels (2191 kb)

Video

• Pixel video door entry panel
• Retrofit with existing back boxes
• After Installation
• Interacting with the TAB Free
• Installation and configuration

---

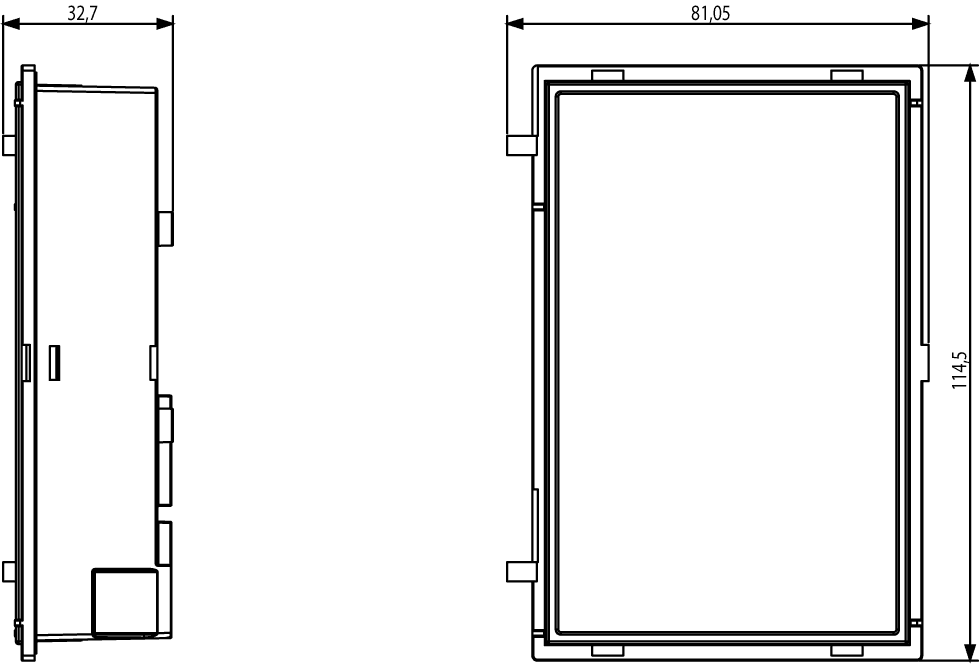

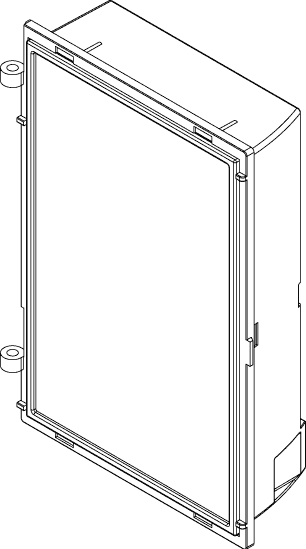

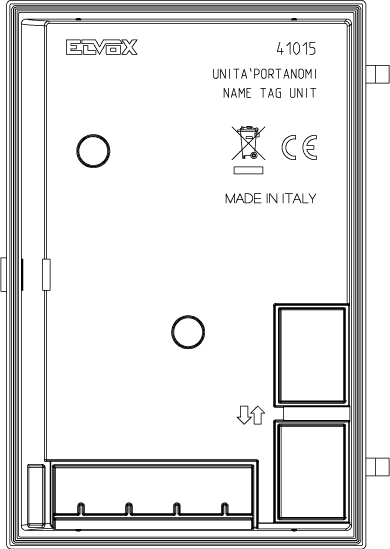

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Communication technique

Class
Functional module for door communication

Model
Other

Installation technique
Other

Number of call buttons
0

With day/night function
No

Zoom, pan/tilt function
No

Manual adjustable camera
No

Hearing aid compatible
No

Colour
Other

Height
114,50 mm

Depth
32,70 mm

00. CE Marking - EU

28. NSW / RCM - Australia

37. Marking - Morocco

92. RoHS UAE

99. WEEE Directive

Minimum order quantity: 1 NR

---

Barcode

8013406272102

1 NR

18.5x12.5x5.5 [cm]

164 [g]

8013406274335

20 NR

38.5x29.5x25 [cm]

3,724 [g]
