Name: Wi-Fi PT 3Mpx cam - 3,6mm 110° view
Brand: Vimar
Availability: InStock

Download as PDF PDF Add to portfolio

46239.036C
Safety / ELVOX CCTV / IP / Cameras

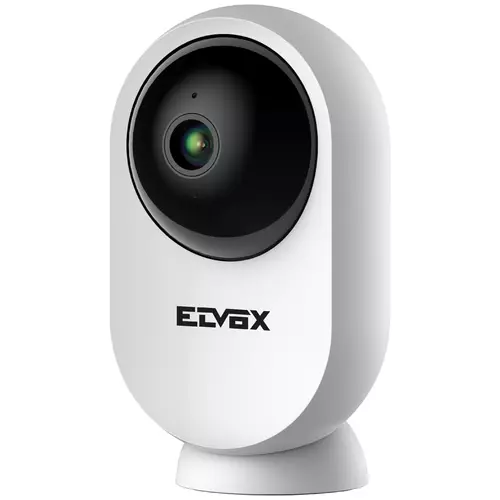

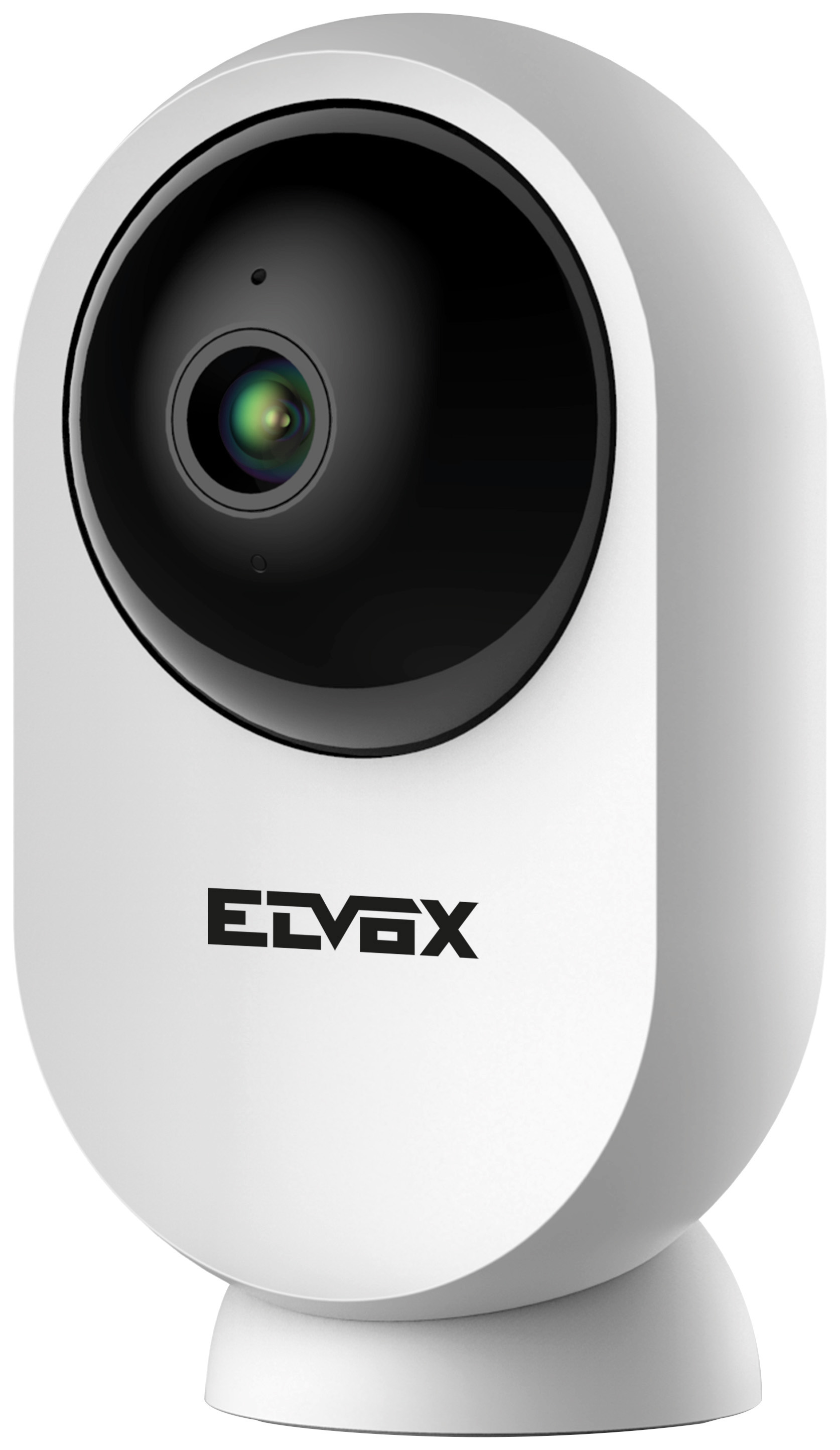

Wi-Fi PT 3Mpx cam - 3,6mm 110° view

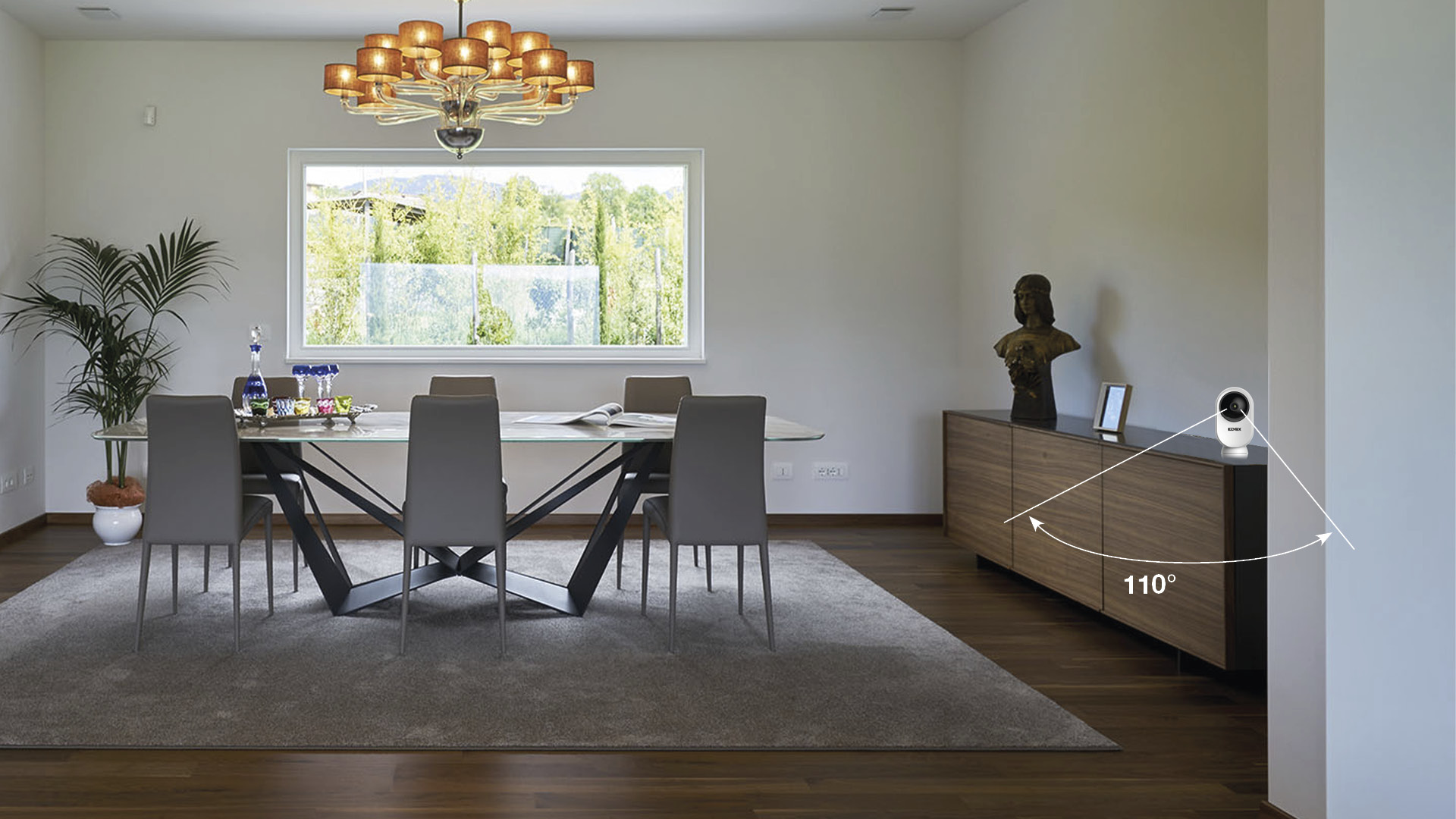

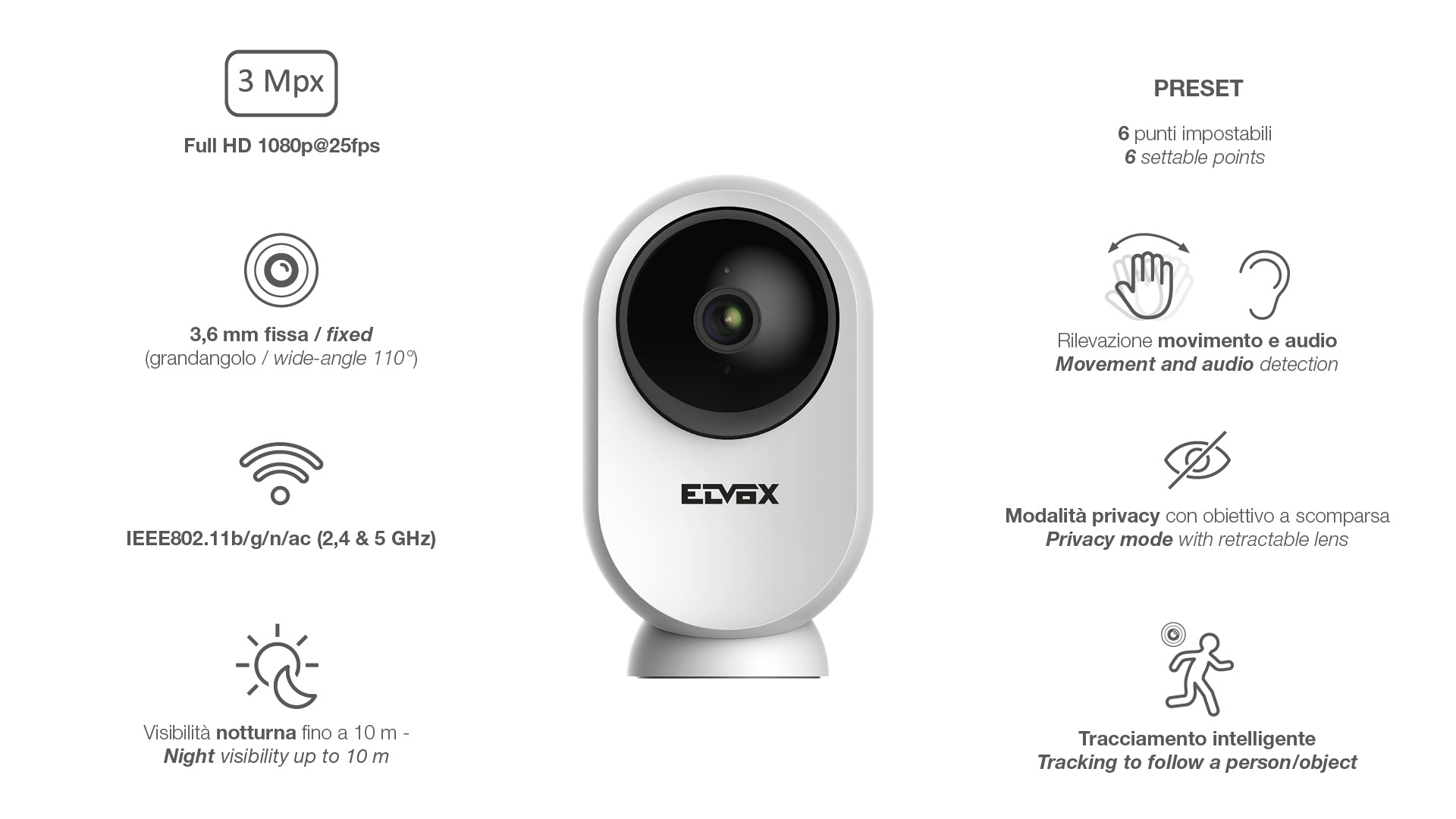

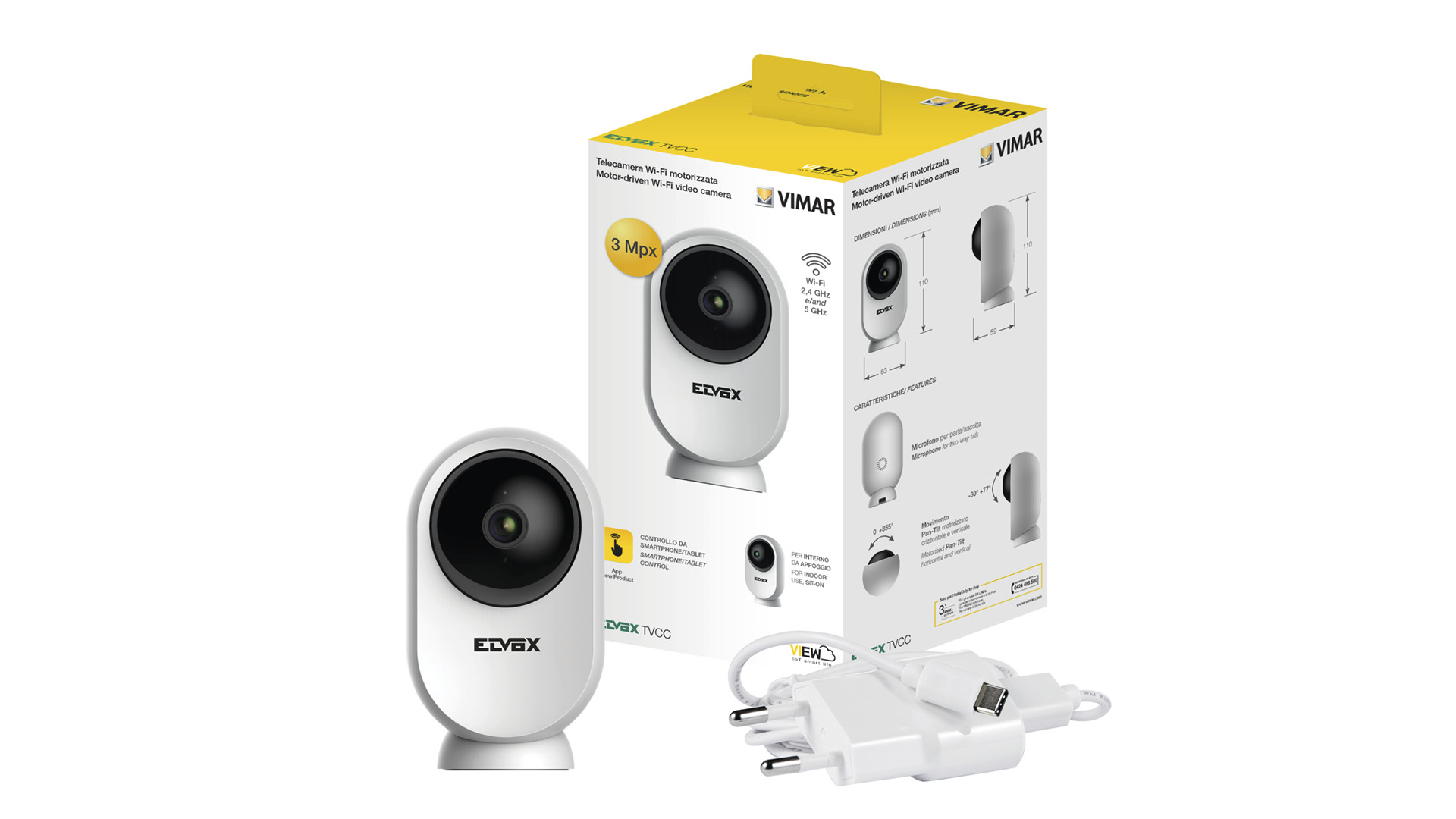

Motor-driven Wi-Fi PT IP (Pan and Tilt) Day & Night colour camera with settable presets, 3 Mpx resolution (2304 x 1296), indoor installation, 3.6 mm fixed focus lens with 110° vision, H.265 compression, plug power supply unit included, IR 10 m, smart tracking function, motion/audio detection and notification sending, RTSP string for integration. Free VIEW Product App available for Android and iOS. Supports SD-Cards up to 128 GB (not included), IEEE802.11b/g/n/ac 2.4 GHz & 5 Ghz Wi-Fi standard. Dimensions 59 x 63 x 110 mm. Weight 161 g

Two-way audio (talk - listen) and Bilingual spoken Italian and English audio feedback
Thanks to the App you can control your house from everywhere, free for Android and iOS
Motor-driven pan and tilt camera (Pan 0-355° and Tilt -10°-75°) with settable presets

Product Status
2 - Will be discontinued

Alternative products

46303.D1 - Wi-Fi compact camera PT 4Mpx

You may also be interested in

00447.CK.B - Multi-outlet16A 3DE+4USB+swit.+Wi-Fi+S31

Sheets, Manuals, Documentation

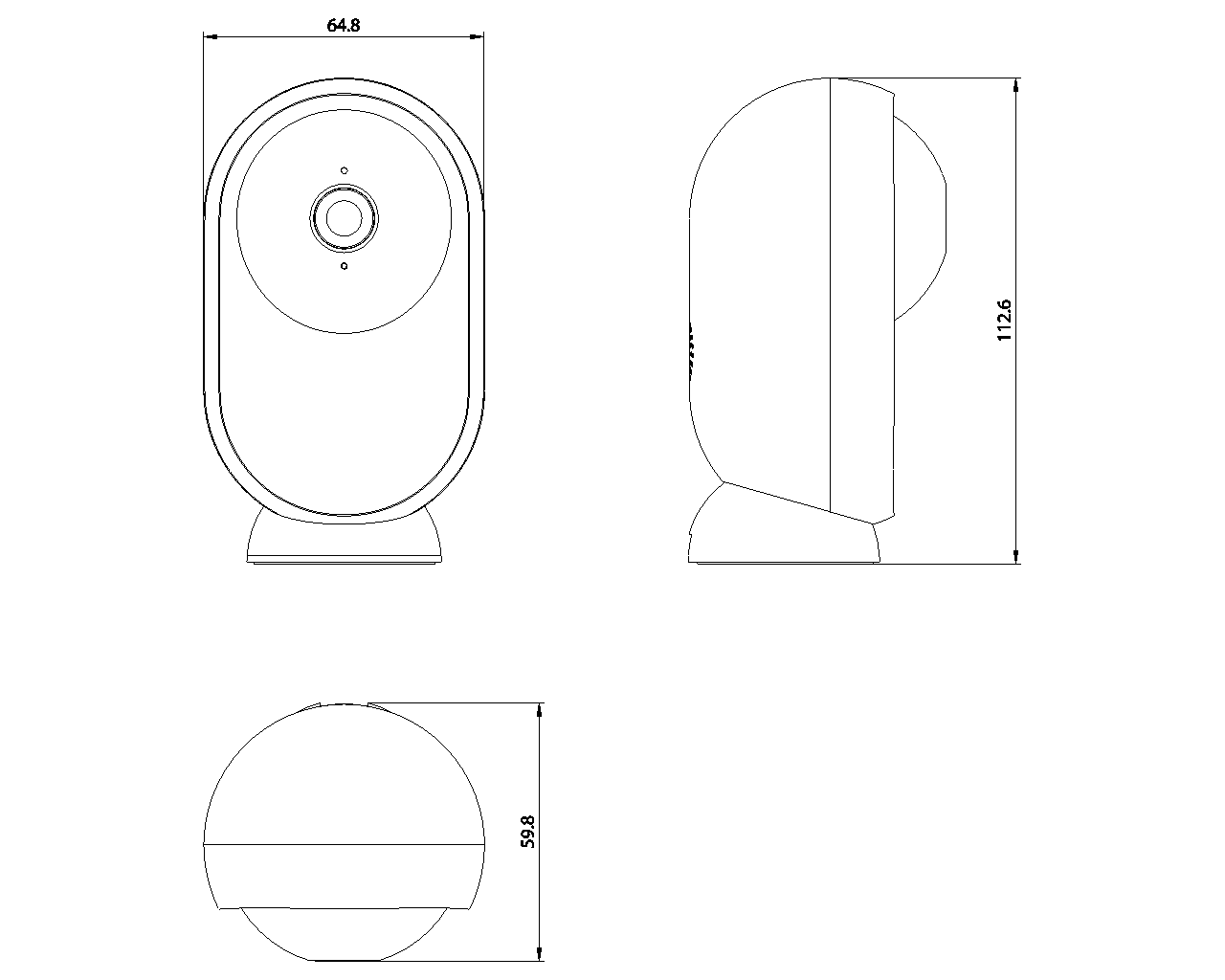

Drawings

PNG DXF

Class group
Alarm installations, emergency call and signalling

Class
Camera for surveillance system

Model
Standard (Fixed)

Construction type
Dome shape

Thermal camera
No

Number of pixels (Megapixel)
3

With lens
Yes

Modular (lens and camera separated)
No

Focal size
0,00 - 3,60 mm

Shutter control
DC

Lens connection
Other

Motor zoom
No

Suitable for wall mounting
Yes

Suitable for ceiling mounting
Yes

Suitable for corner mounting
No

Suitable for surface mounting
Yes

Flush-mounted installation/built-in installation
No

Suitable for outdoor use
Yes

Communication medium wired
No

Communication medium wireless
Yes

Type of interface
Wi-Fi

Protocol
TCP/IP

Power over Ethernet (PoE)
802.3af (PoE)

Picture system
PAL

Frame rate
25

Property picture system
Colour

With infrared lighting
Yes

Max. infrared reach
10 m

With white light
No

Max. white light reach
30 m

Supports H.264 codec
Yes

Supports H.265 codec
Yes

Supports Motion JPEG codec
Yes

Supports MPEG-4 codec
No

With video motion detector
Yes

With integrated AI analysis
Yes

With slot for memory card
Yes

With memory card
No

Memory capacity
128

Number of digital inputs
0

Number of digital outputs
0

Number of audio inputs
1

Number of audio outputs
1

With integrated audio analysis
No

HDMI-connection
No

Mini HDMI-connection
No

VGA-connection (D-Sub 15-pole)
No

DVI-connection
No

BNC-connection
No

DisplayPort-connection
No

Mini DisplayPort
No

S-Video-connection
No

USB-C-connection
No

Vandal proof
No

Impact strength
Other

Degree of protection (IP)
Other

Horizontal field of view
0,00 - 110,00

With microphone
Yes

With loudspeaker
Yes

Power consumption
5,00 W

Supply voltage
12,00 - 12,01 V

Voltage type
DC

Colour
White

Diameter
6.300,00 mm

Height
110,00 mm

Width
6.300,00 mm

Depth
59,00 mm

Compatible with Apple HomeKit
No

Compatible with Google Assistant
No

Compatible with Amazon Alexa
No

IFTTT support available
No

00. CE Marking - EU

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

8007352722408

1 NR

9.2x9.2x17.6 [cm]

166 [g]
