Wi-Fi PT 3Mpx cam 4mm lens - 46239.040A

Download as PDF PDF Add to portfolio

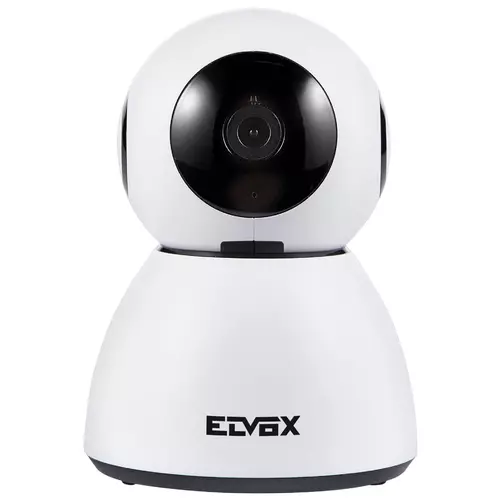

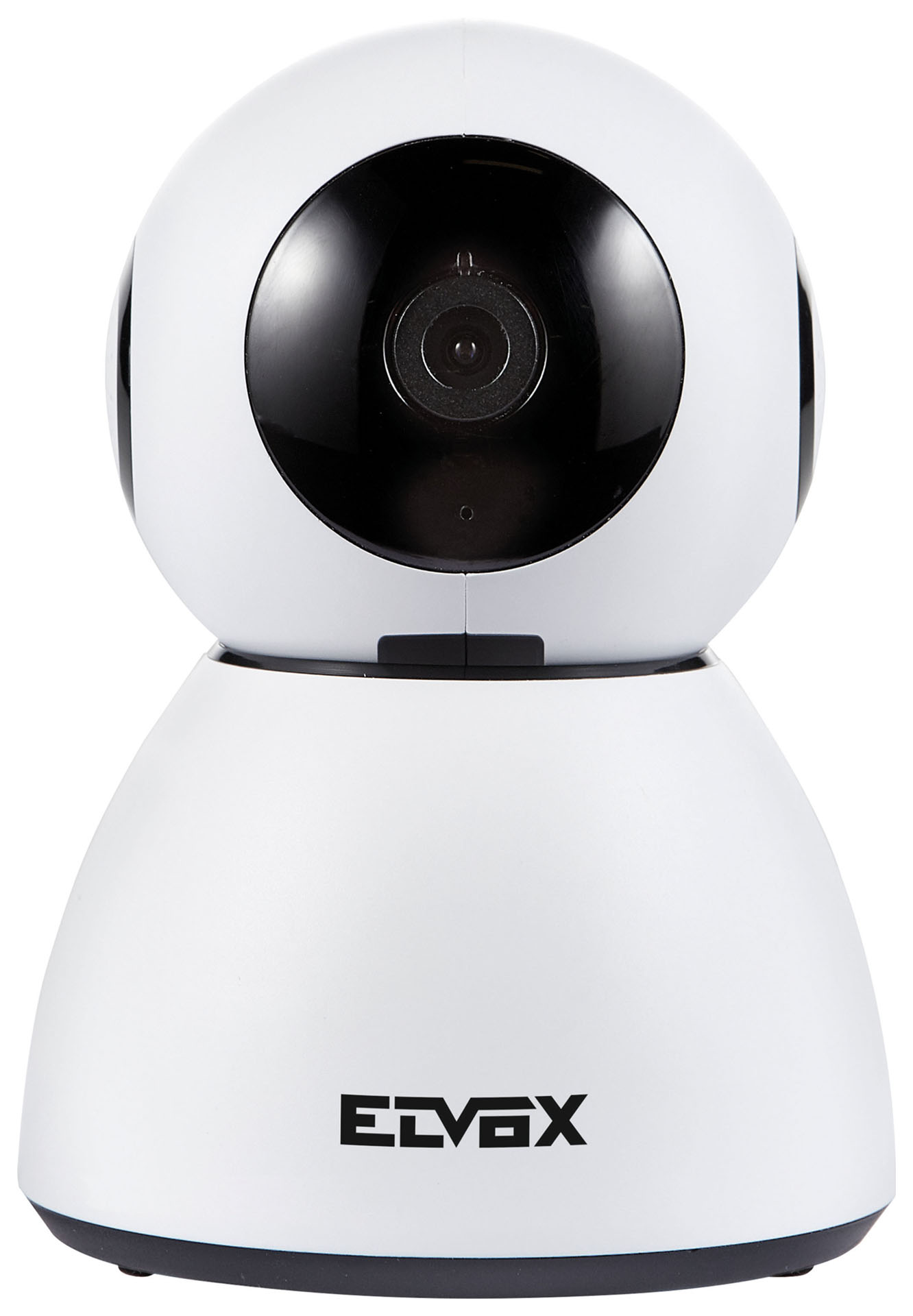

Immagine 46239.040A
download product photo

46239.040A
Safety / ELVOX CCTV / IP / Cameras

Wi-Fi PT 3Mpx cam 4mm lens

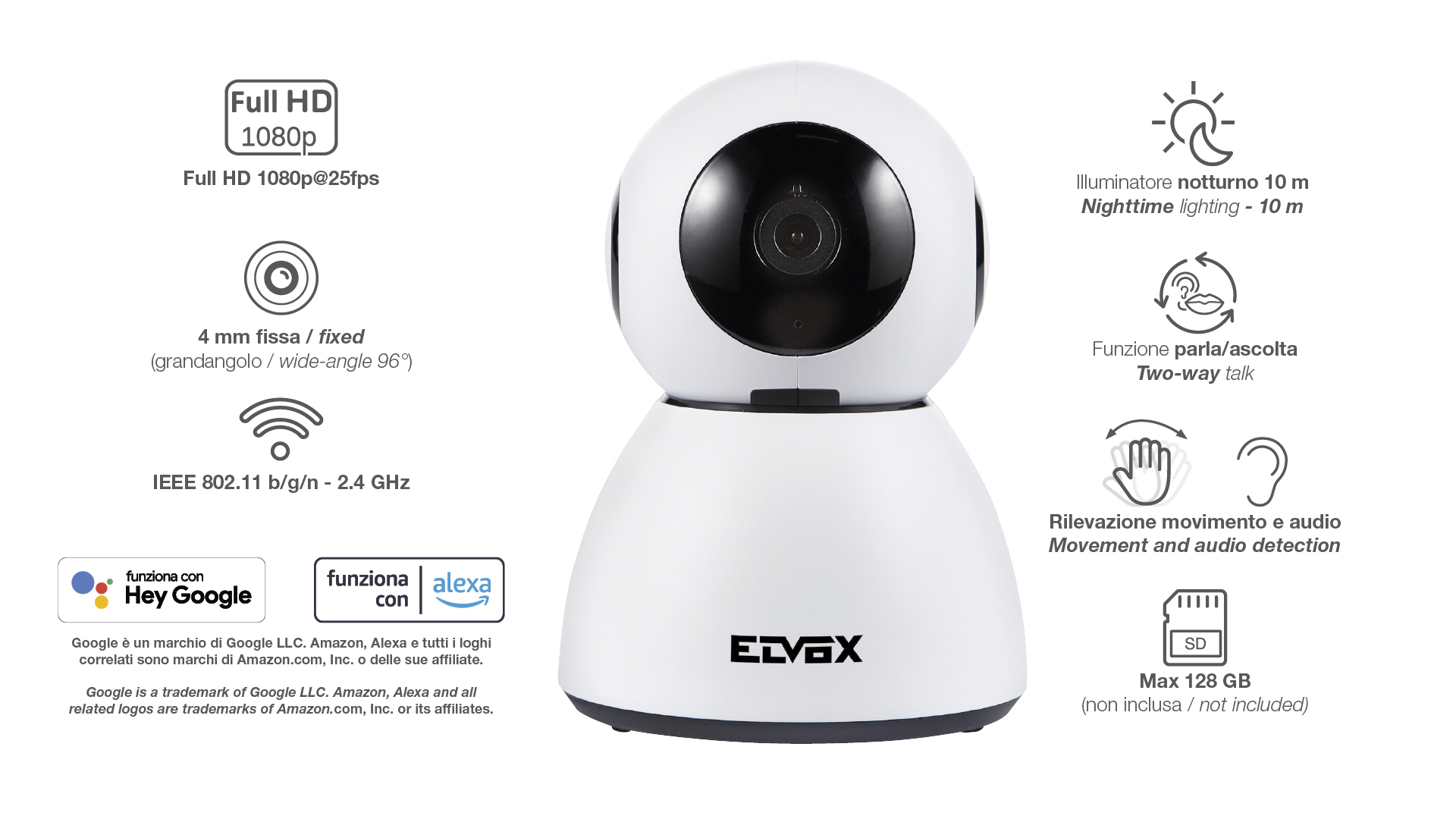

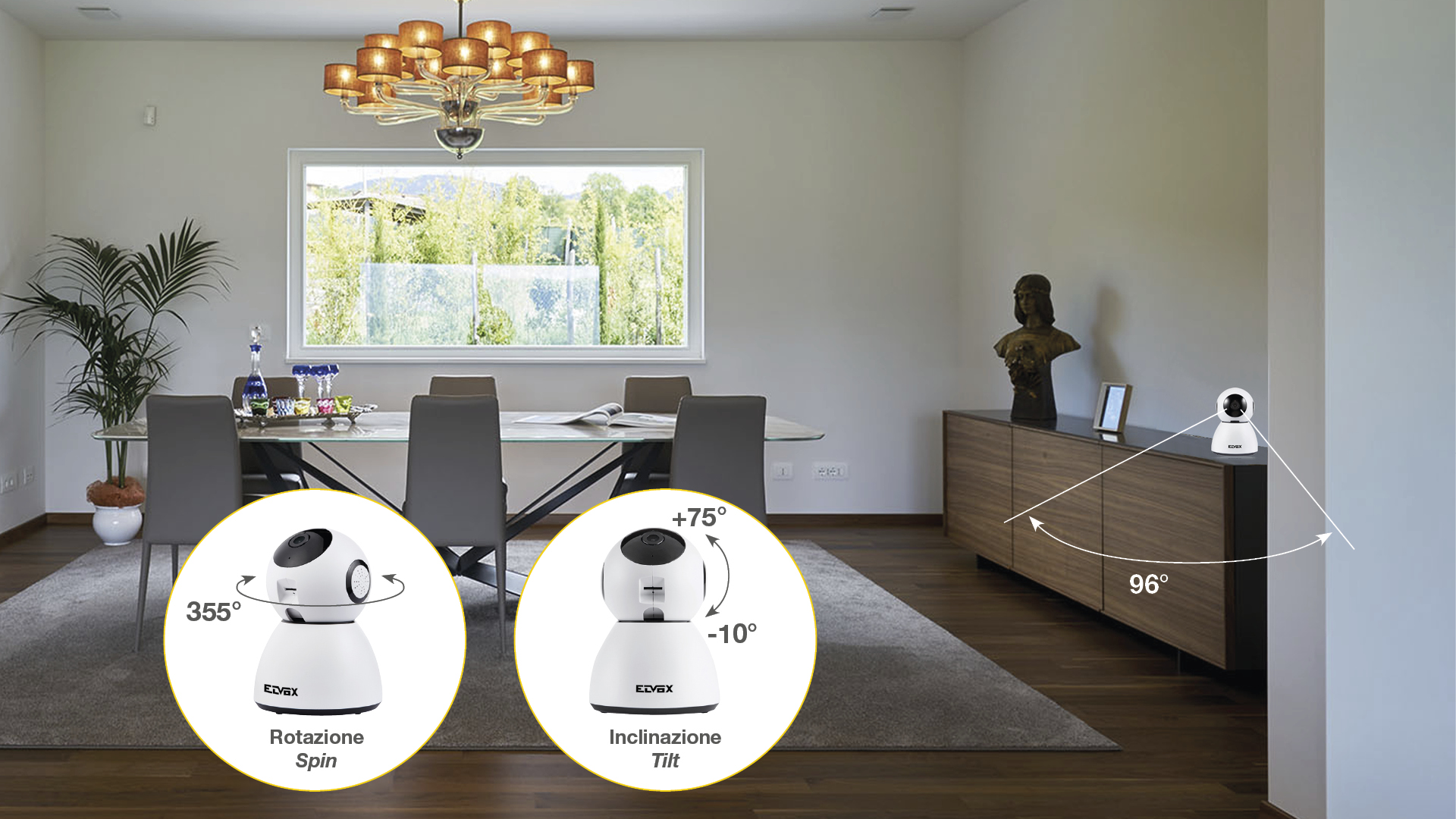

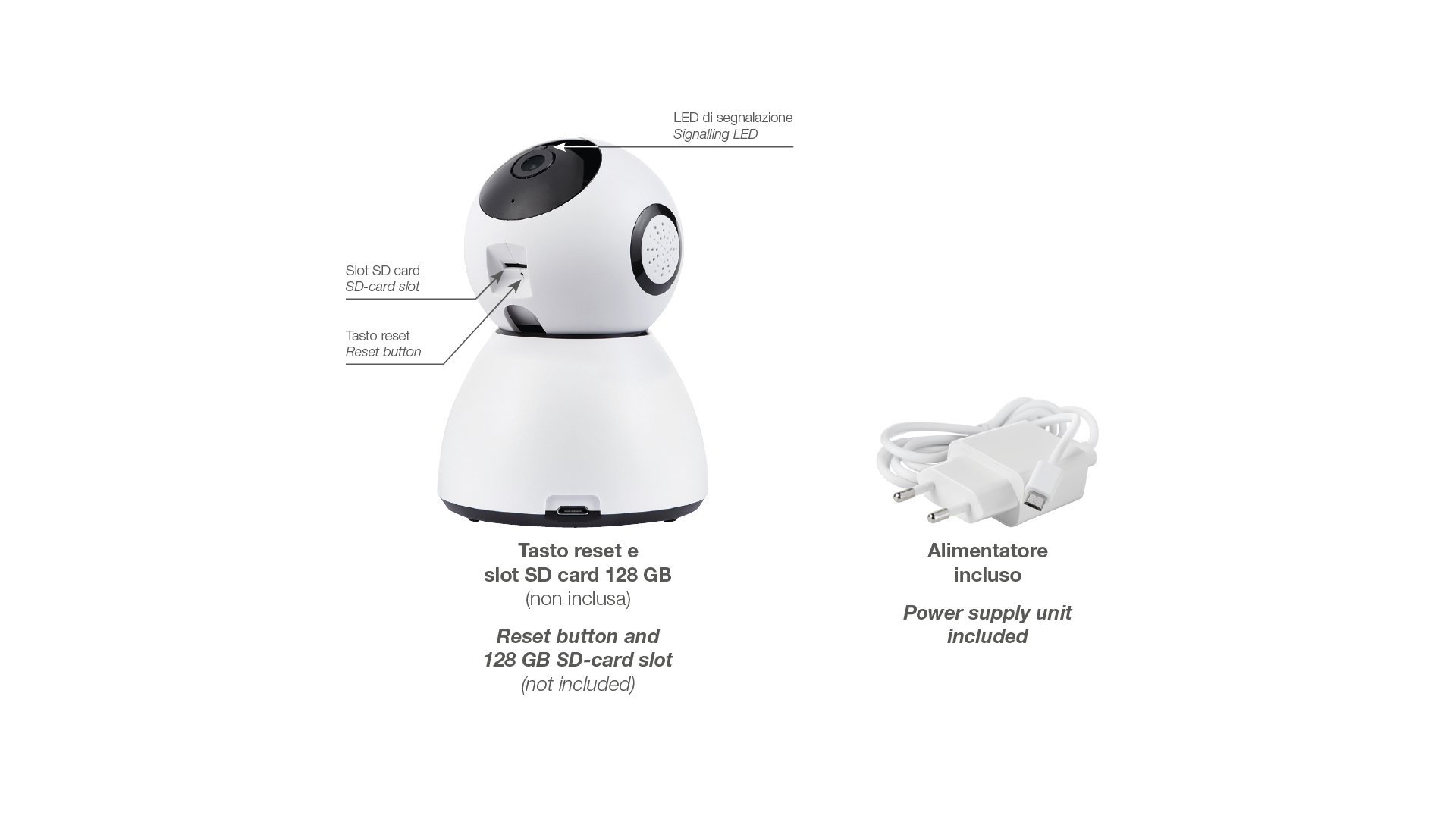

Motorized Day&Night Wi-Fi PT IP camera, Full-HD resolution 3 Mpx (2304 x 1296), 4 mm fixed lens with 96° vision, mechanical IR filter, H264 compression, included 5 Vdc plug-in supply unit, IR 10 m, motion detector functions and notifications sending. View Product app for Android and iOS. SD-Card up to 128 GB (not included), IEEE 802.11 b / g / n 2.4 GHz Wi-Fi standard. Compatible with voice assistants. Dimensions Ø 87 x 123 mm. Weight 185 g

  • It is compatible with voice assistants Alexa and Google Home through Skill and Action VIEW Product
  • Two-way audio (talk - listen) and Bilingual spoken Italian and English audio feedback
  • Supervise your home wherever you may be with the VIEW Product App and receive notifications about what’s going on there. Create scenarios and automations and call them up using the VIEW Product App, routines via Amazon Alexa smart speakers and Vimar’s new flush mounting vocal control using the VIEW Product skill
  • It is compatible even with the application ˝Smart Life˝

Product Status
2 - Will be discontinued

You may also be interested in

00447.CK.B
00447.CK.B - Multi-outlet16A 3DE+4USB+swit.+Wi-Fi+S31
46237.040A
46237.040A - Bullet Wi-Fi cam - Full-HD 1080p 4mm
46238.027A
46238.027A - Wi-Fi HD drop cam 720p 2.7mm

Sheets, Manuals, Documentation

Drawings

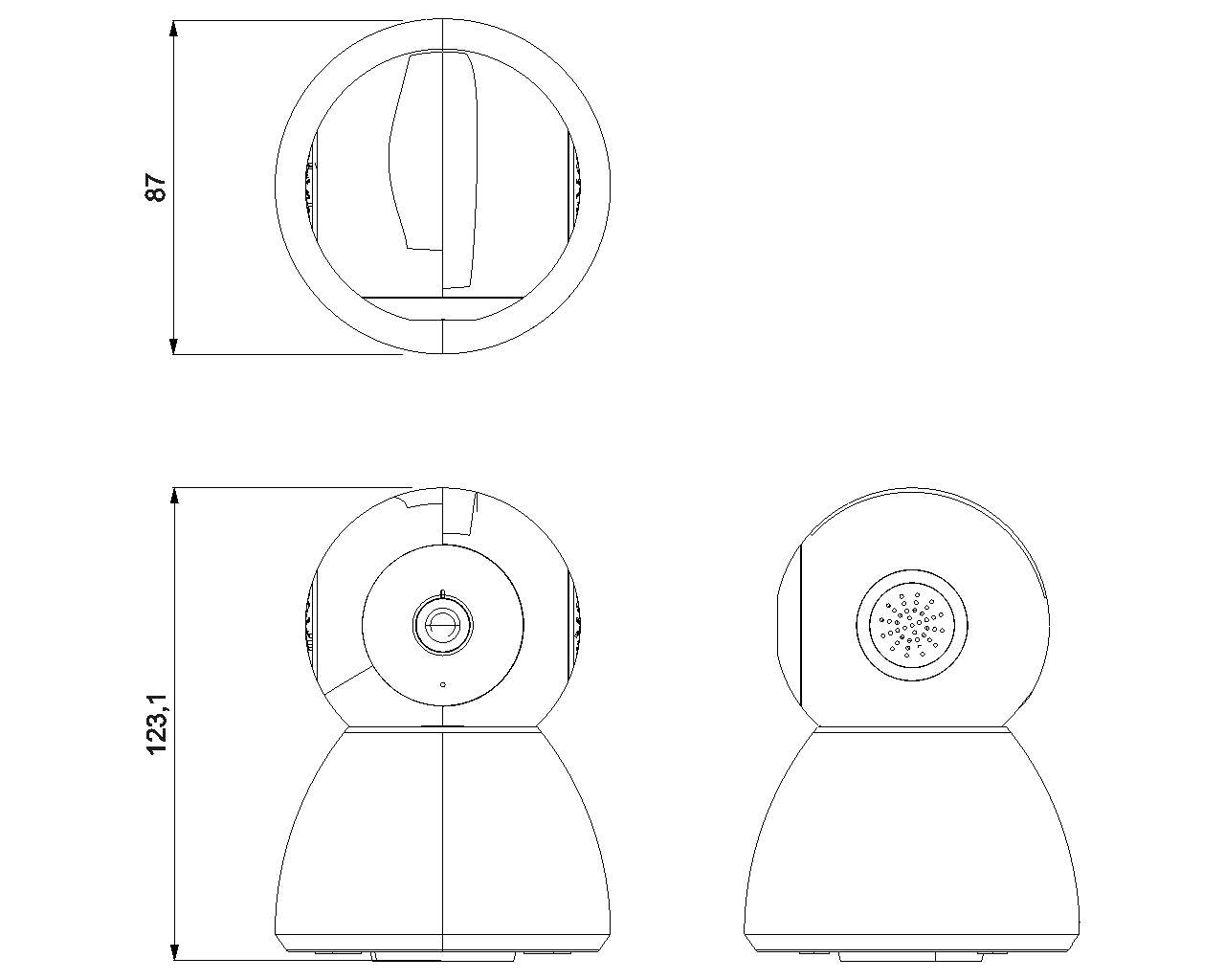

view encumbered art. 46239.040A
PNG DXF
3D view art. 46239.040A
PNG DXF
Class group
Alarm installations, emergency call and signalling
Class
Camera for surveillance system
Model
Standard (Fixed)
Construction type
Dome shape
Thermal camera
No
Number of pixels (Megapixel)
2
With lens
Yes
Modular (lens and camera separated)
No
Focal size
4,00 - 4,10 mm
Shutter control
DC
Lens connection
Other
Motor zoom
No
Suitable for wall mounting
No
Suitable for ceiling mounting
Yes
Suitable for corner mounting
No
Suitable for surface mounting
Yes
Flush-mounted installation/built-in installation
No
Suitable for outdoor use
No
Communication medium wired
No
Communication medium wireless
Yes
Type of interface
Wi-Fi
Protocol
TCP/IP
Power over Ethernet (PoE)
None
Picture system
PAL
Frame rate
25
Property picture system
Colour
With infrared lighting
Yes
Max. infrared reach
10 m
With white light
No
Max. white light reach
0 m
Supports H.264 codec
Yes
Supports H.265 codec
Yes
Supports Motion JPEG codec
Yes
Supports MPEG-4 codec
No
With video motion detector
Yes
With integrated AI analysis
Yes
With slot for memory card
Yes
With memory card
No
Memory capacity
128
Number of digital inputs
0
Number of digital outputs
0
Number of audio inputs
1
Number of audio outputs
1
With integrated audio analysis
No
HDMI-connection
No
Mini HDMI-connection
No
VGA-connection (D-Sub 15-pole)
No
DVI-connection
No
BNC-connection
No
DisplayPort-connection
No
Mini DisplayPort
No
S-Video-connection
No
USB-C-connection
No
Vandal proof
No
Impact strength
Other
Degree of protection (IP)
Other
Horizontal field of view
96,00 - 96,10
With microphone
Yes
With loudspeaker
Yes
Power consumption
5,00 W
Supply voltage
0,10 - 5,01 V
Voltage type
DC
Colour
White
Diameter
87,00 mm
Height
123,00 mm
Width
87,00 mm
Depth
123,00 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No

00. CE Marking - EU

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8013406312044
1 NR
15x13x10 [cm]
380 [g]
Question: Can you link up to the camera using RTSP or HTTP protocol?
Answer: Yes it is possible to view live video via RTSP string on other devices starting from the traceability version of the device greater than or equal to 025.24 (the data is shown on the label on the device). For previous versions the camera can only be viewed via the App.
Question: Can the audio be removed from the camera?
Answer: No. The audio function cannot be deleted.
