Wi-Fi compact camera PT 4Mpx - 46303.D1

Download as PDF PDF Add to portfolio
Immagine 46303.D1
Foto gallery 1
Foto gallery 2
download product photo

46303.D1
Safety / ELVOX CCTV / IP / Cameras

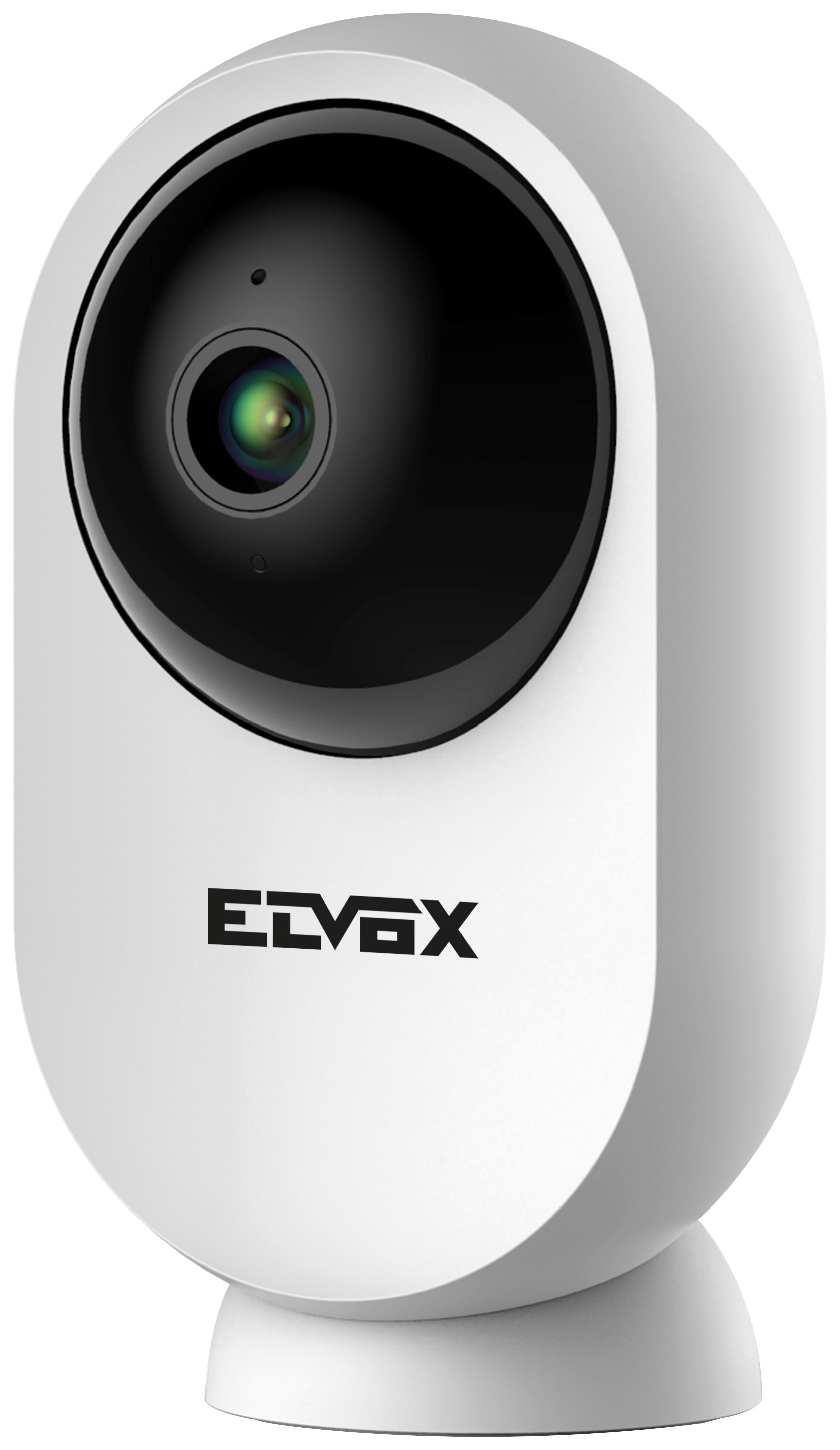

Wi-Fi compact camera PT 4Mpx

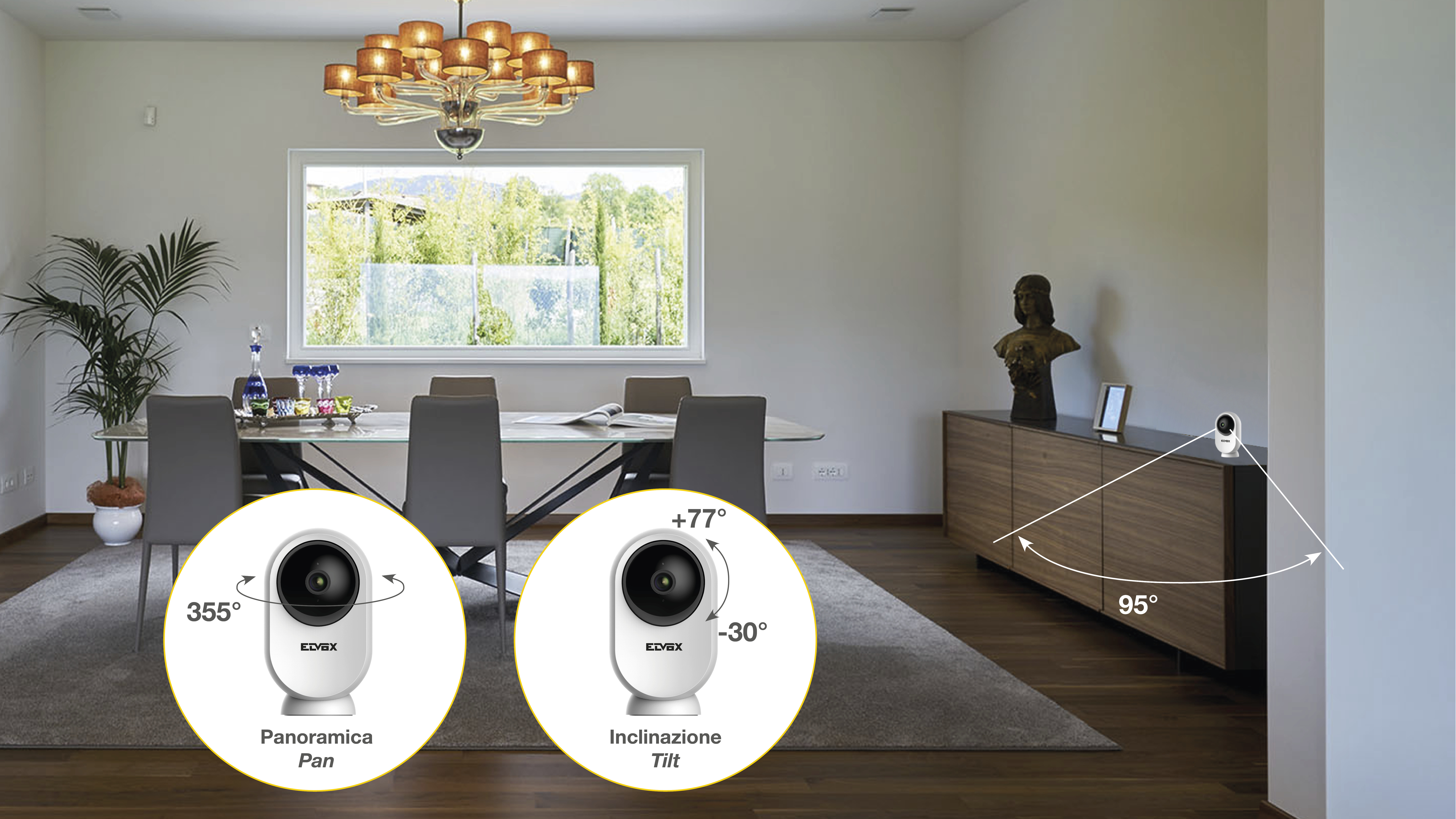

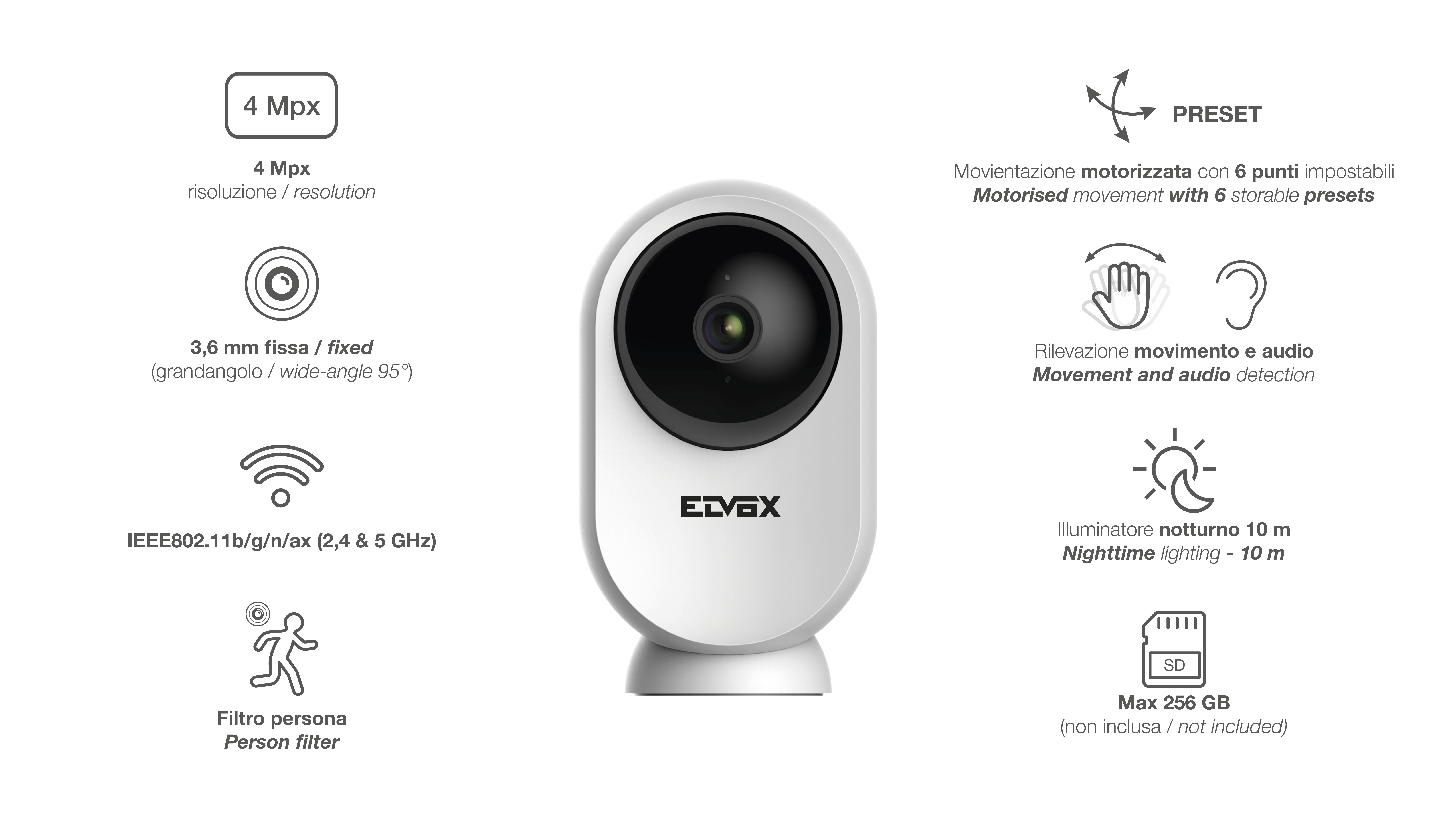

Motor-driven Wi-Fi IP PT camera with presets, customisable automatic movement and smart tracking, 2K resolution, (4Mpx, 2560 x1440), 3.6mm lens with 95° vision, IR night vision 10m, motion detection and reduction of false alarms via a person filter and notification sending in the VIEW Camera App. Privacy function with disappearing lens. Supports SD-Cards up to 256 GB (not included) with protected data and H.265 compression. 2.4 and 5 GHz Wi-Fi. 5 VDC power supply with plug power supply unit included. Dimensions 59x63x110 mm. Weight 161g

Product Status
3 - Active

Class group
Alarm installations, emergency call and signalling
Class
Camera for surveillance system
Model
Pan-Tilt-Zoom
Construction type
Dome shape
Thermal camera
No
Number of pixels (Megapixel)
4
With lens
Yes
Modular (lens and camera separated)
No
Shutter control
DC
Lens connection
Other
Motor zoom
No
Suitable for wall mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for corner mounting
No
Suitable for surface mounting
Yes
Flush-mounted installation/built-in installation
No
Suitable for outdoor use
Yes
Communication medium wired
No
Communication medium wireless
No
Type of interface
Wi-Fi
Protocol
TCP/IP
Power over Ethernet (PoE)
None
Picture system
PAL
Frame rate
25
Property picture system
Colour
With infrared lighting
Yes
Max. infrared reach
10 m
With white light
No
Max. white light reach
0 m
Supports H.264 codec
Yes
Supports H.265 codec
Yes
Supports Motion JPEG codec
Yes
Supports MPEG-4 codec
No
With video motion detector
Yes
With integrated AI analysis
Yes
With slot for memory card
Yes
With memory card
No
Memory capacity
256
Number of digital inputs
0
Number of digital outputs
0
With integrated audio analysis
Yes
HDMI-connection
No
Mini HDMI-connection
No
VGA-connection (D-Sub 15-pole)
No
DVI-connection
No
BNC-connection
No
DisplayPort-connection
No
Mini DisplayPort
No
S-Video-connection
No
USB-C-connection
No
Vandal proof
No
Impact strength
IK00
Degree of protection (IP)
IP20
With microphone
Yes
With loudspeaker
Yes
Supply voltage
12,00 - 12,01 V
Voltage type
DC
Colour
White
Diameter
7.500,00 mm
Height
75,00 mm
Width
7.500,00 mm
Depth
168,00 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No

00. CE Marking - EU

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352796256
1 NR
9.2x9.2x17.6 [cm]
170 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
