64-channel H.265 NVR - 46NVR.64

Pdf
Vimar - 46NVR.64 - 64-channel H.265 NVR
Vimar - 46NVR.64 - 64-channel H.265 NVR

46NVR.64
Safety / ELVOX CCTV / IP / NVR

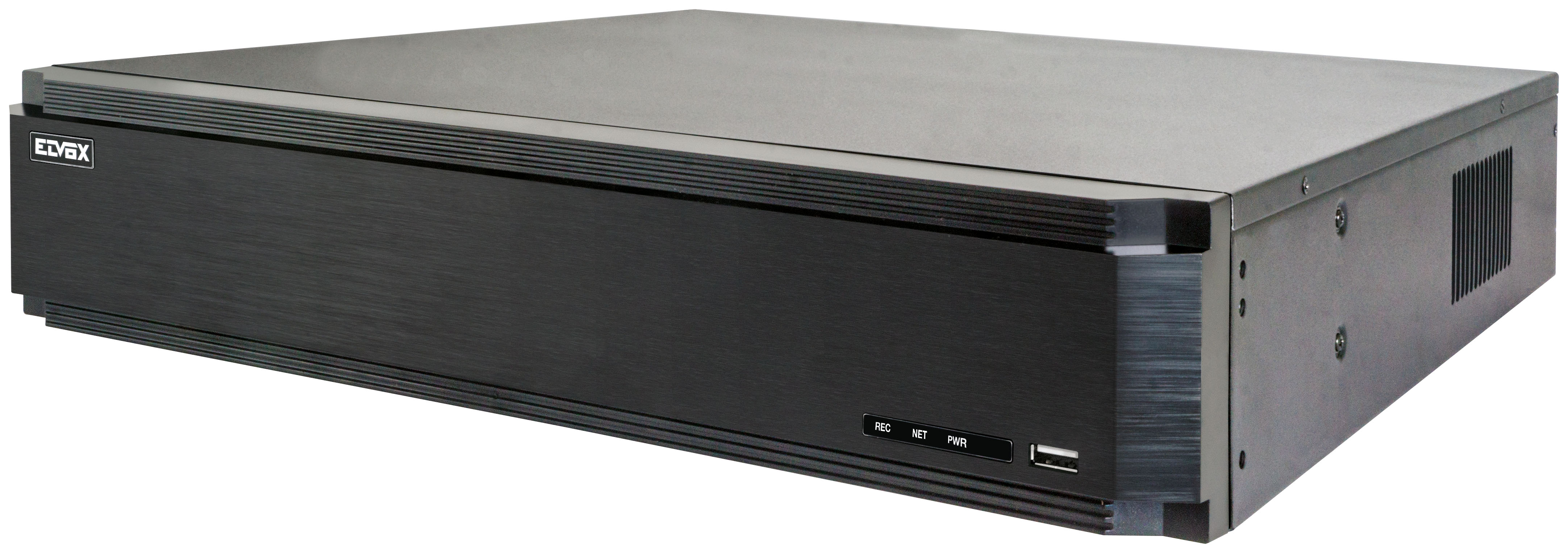

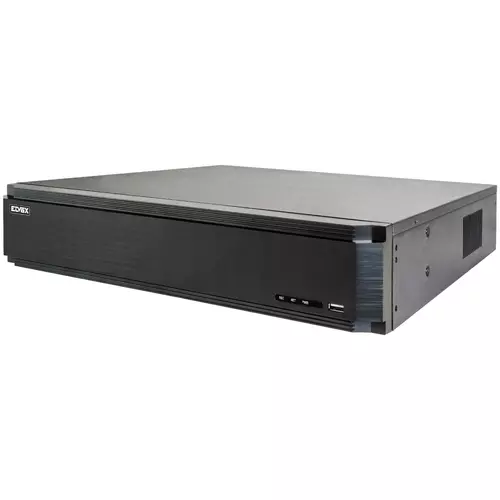

64-channel H.265 NVR
64-input NVR, H.265 compression, Pentaplex function, 64-channel 8 Mpx Real Time recording resolution, HDD not included, SATA x8, max 8 TB for HDD, 1IN/1OUT audio connections, 8IN/1OUT alarms management, 3 USB, VGA, HDMI output with resolution up to 4K, remote control and Viewing, QRCODE, privacy mask, motion detection, ONVIF protocol, CVM software. Dimensions: 445×436×100 mm

Product Status
2 - Will be discontinued

You may also be interested in

46936.001
46936.001 - USB alarm extension
46925.030
46925.030 - Professional HDD SATA 3,5in 3TB f/DVR
Class group
Alarm installations, emergency call and signalling
Class
Matrix memory for video surveillance system
Recording type
Digital
Device construction
482.6 mm (19 inch) mounting rack
Max. number of video inputs
64
Max. number of control inputs
0
With video motion detector
Yes
With DVD
No
Redundant power supply
No
Power consumption
15 W
Max. data transmission rate
1000
Processor type
Other
Number of ports LAN
2
Number of ports 1000 Mbps Mini GBIC
0
Number of combination-ports RJ45/Mini GBIC
2
Number of ports PoE
0
Max. PoE power
0 W
Power over Ethernet (PoE)
None
Operating system
Linux
Number of pre-licensed cameras
64
Number of hard disc bays
8
Number of preinstalled hard discs
8
Memory capacity per hard disc
48
RAID 0 capable
Yes
RAID 1 capable
Yes
RAID 5 capable
Yes
RAID 6 capable
Yes
RAID 10 capable
Yes
Hot-swappable hard disk capability
No
Width
436 mm
Height
100 mm
Depth
445 mm

00. CE Marking - EU

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8013406311399
1 NR
54x55x16 [cm]
7,306 [g]
