Digibus power supply unit 230V - 6948

6948
ELVOX Door entry system / Digibus video entry system / Shared A/V components / System components

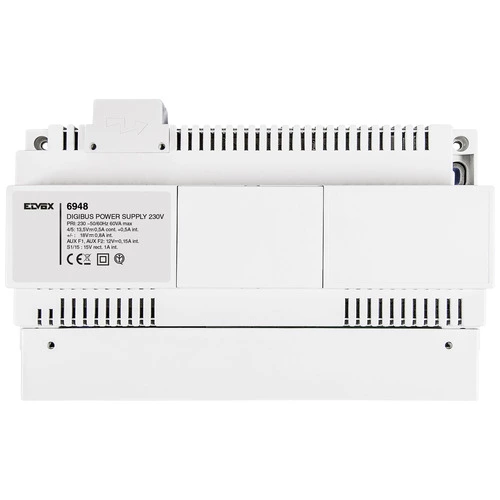

Digibus power supply unit 230V
Power supply unit for Digibus video door entry system with outputs 12 Vd.c., 13.5 Vd.c., 15 V and 18 Vd.c., power supply 230 V~ 50/60 Hz 60 VA, installation on DIN rail (60715 TH35), occupies 12 modules size 17.5 mm

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Manuale DigiBus (26010 kb)
• Installer manual (3313 kb)
• Installation diagrams (3288 kb)

---

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Communication technique

Class
Power supply door communication

Application
Other

Input voltage
230 V

Type of current
DC

Output voltage
12,00 V

Degree of protection (IP)
IP20

Installation technique
Multi-wire system

Integrated door opening circuit
No

Control function
No

Evaluation function
No

Service indication
Yes

Mounting method
Other

Programming lock
No

00. CE Marking - EU

37. Marking - Morocco

43. UKCA mark - Great Britain

99. WEEE Directive

Minimum order quantity: 1 NR

---

Barcode

8013406131478

1 NR

24.4x13.9x8.4 [cm]

1,648 [g]

Share

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
