KIT EKKO 300D swing 24V 3m for Wi-Fi - EK06.W.EXP

Pdf
Vimar - EK06.W.EXP - KIT EKKO 300D swing 24V 3m for Wi-Fi
Vimar - EK06.W.EXP - KIT EKKO 300D swing 24V 3m for Wi-Fi

EK06.W.EXP
Safety / ELVOX Automations / Kits / Hinged

KIT EKKO 300D swing 24V 3m for Wi-Fi

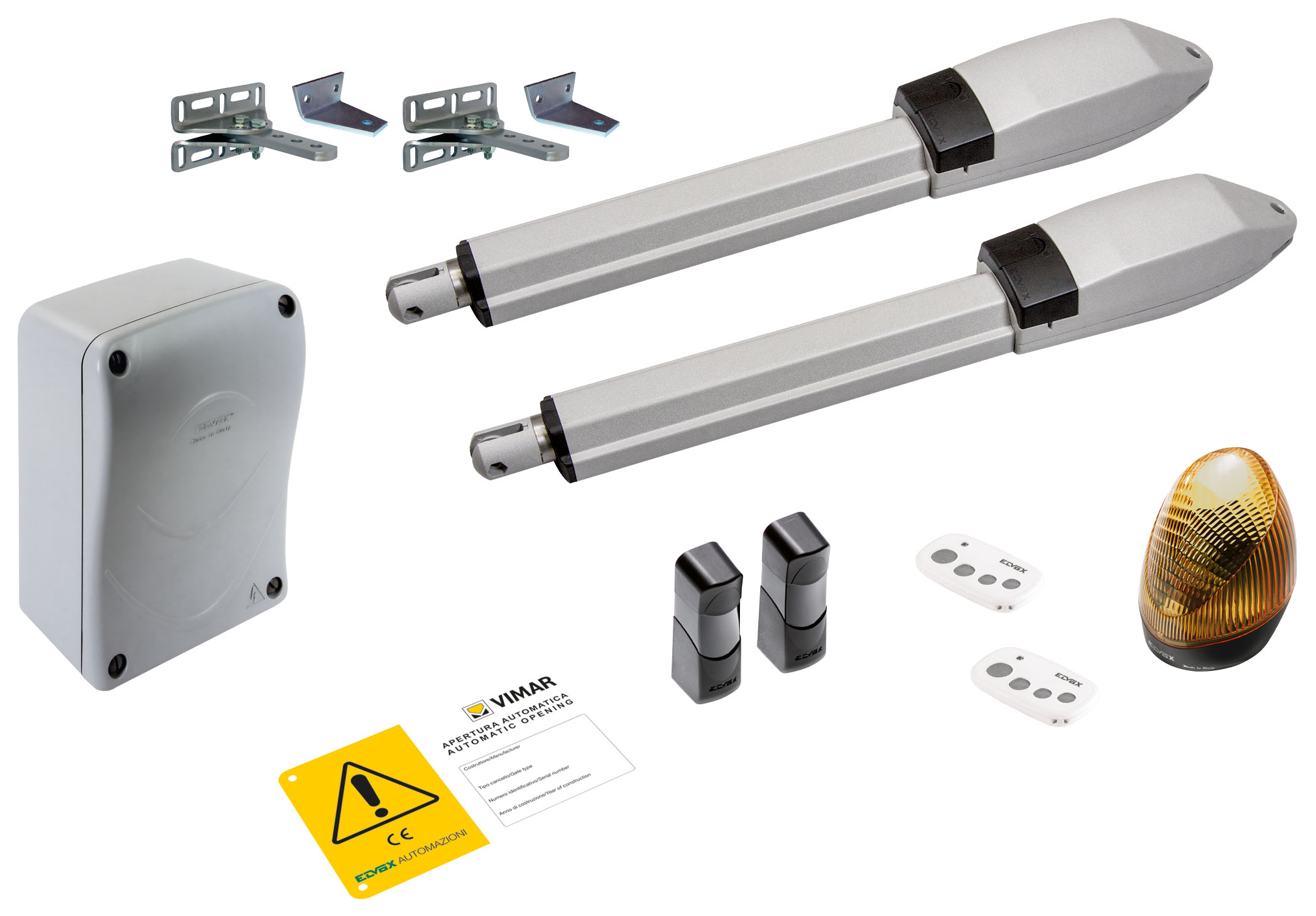

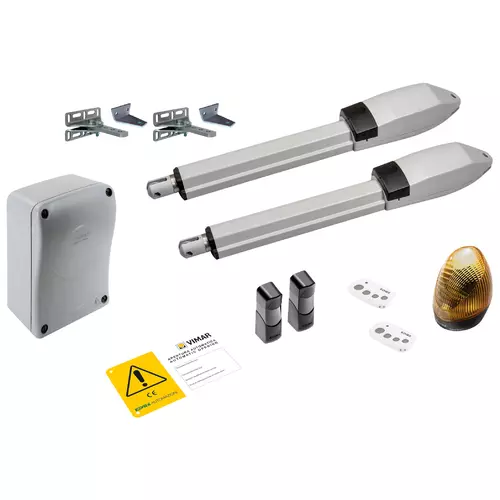

EKKO 300D kit for swing gates with leaves up to 3 m, 300 kg. Contents: 2x EAM2 EKKO 300D non-reversible 24 V electromechanical linear operators, 1x ECA5.W control panel 24 V with display ready for communication with Smartphone and Tablet, 1x ELA5 12/24 V flashing LED with built-in aerial, 2x ETRN4 4-channel 433 MHz rolling code remote controls, 1x EFA1 pair of 180°orientable photocells, 1x ZX20 warning sign

Product Status
2 - Will be discontinued

Kit components

EAM2
EAM2 - EKKO 300D linear operator 24V 3m 300kg
ECA5.W
ECA5.W - Wi-Fi control card 24V swing gate
ELA5
ELA5 - Flashing light LED 12/24Vdc
ETRN4
ETRN4 - 4-channel remote control 433MHz rolling
EFA1
EFA1 - Pair of 12/24V 110mA 180° photocells 15m
ZX20
ZX20 - Warning sign
Class group
Gate operators, pumps and ventilators
Class
Swing gate operator
Model
2 wings
Max. width of door/gate wing
3.000 mm
Max. weight of door/gate leaf
800 kg
Drive principle
Electromechanical
Type of current
DC
Motor voltage
24 V
Limit switch
Gate stop
Soft run
Yes
Automatic closing
Yes
Frequency radio receiver
433 MHz
With manual transmitter
Yes
With motor control unit
Yes
With post fittings
Yes
With wing fittings
Yes
With key-switch
No
With radio receiver
Yes

00. CE Marking - EU

37. Marking - Morocco

43. UKCA mark - Great Britain

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8013406293176
1 NR
80.7x30x30.7 [cm]
23,300 [g]
